330104-00-02-15-02-CN – Bently Nevada 3300 XL 8 mm Proximity Probes

🚀 Overview

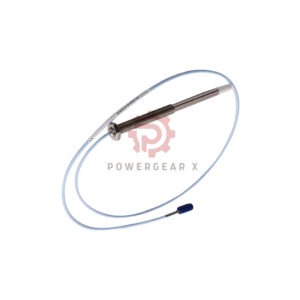

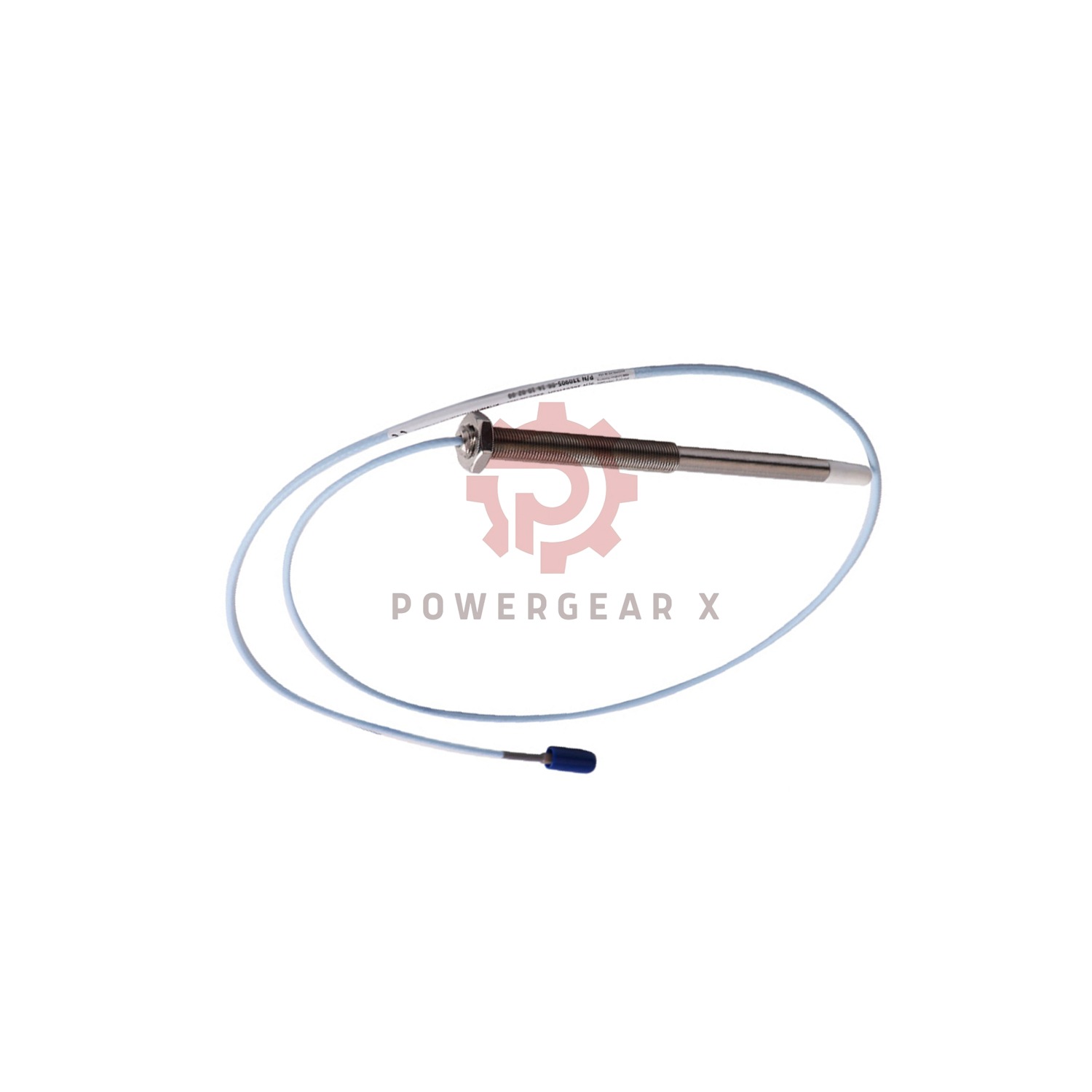

The Bently Nevada 330104-00-02-15-02-CN 8mm proximity probe delivers industrial-grade accuracy with 7.73Ω±0.5 resistance. Built for harsh environments, it features M10x1 threading, 20mm case length, and Viton® sealing (-54°C~204°C). Perfect for turbines, pumps, and rotating machinery.

📌 Core Specifications

• 🔹 Voltage: -17.5Vdc~-26Vdc (±0.5%)
• 🔹 Current: 12mA max @ -23Vdc
• 🔹 Temp Range: -40°C~+120°C
• 🔹 Thread Depth: 8mm full engagement
• 🔹 Cable: 1.5m FluidLoc™ (IP67)
• 🔹 Finish: 3μm Ra stainless steel

⚙️ Advanced Details

• ► Target Material: AISI 4140 steel
• ► Calibration Gap: 1.27mm±0.1mm
• ► Humidity: 0-95% non-condensing
• ► Altitude: 2000m maximum
• ► Load: 10kΩ ±1%

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
