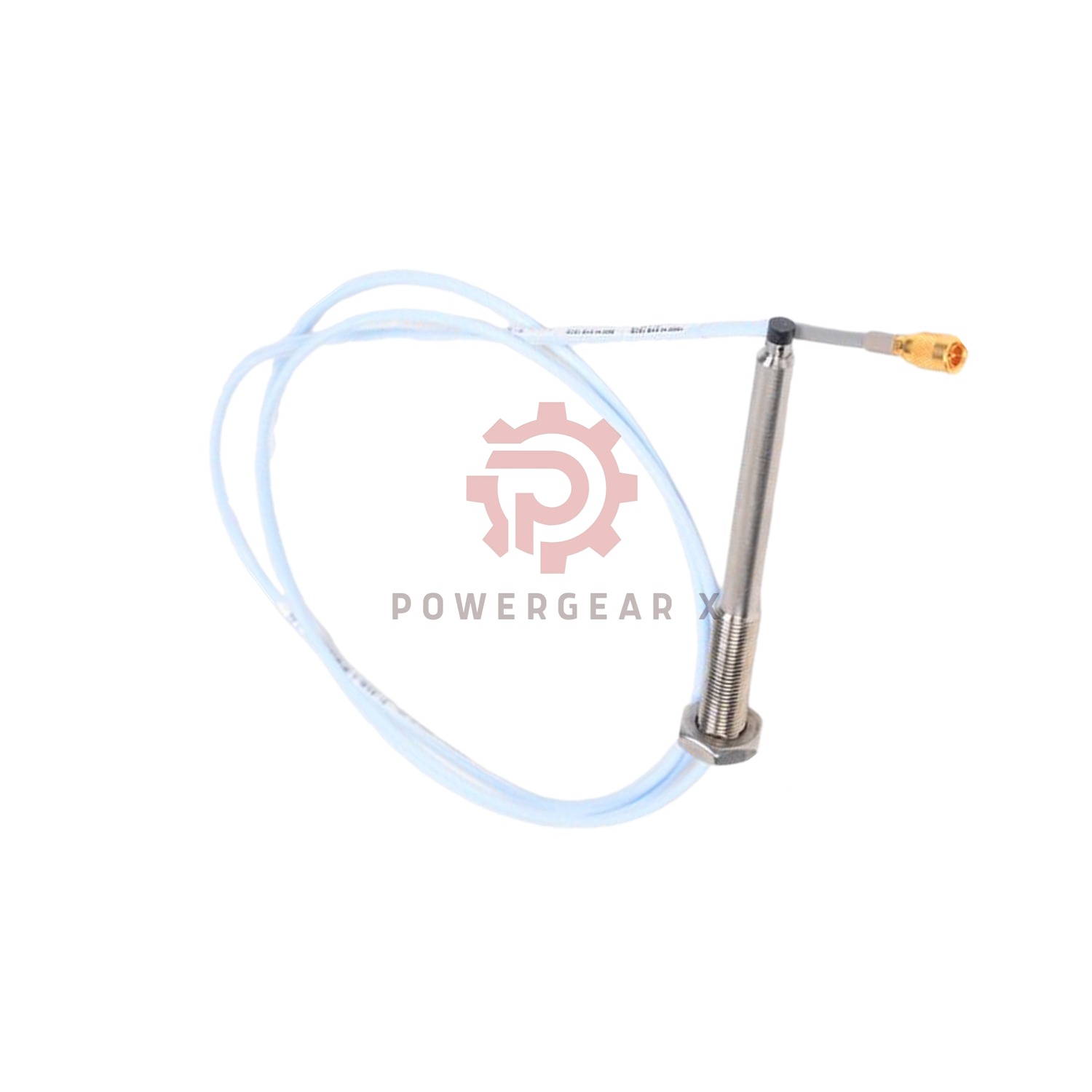

330104-00-05-10-02-CN Bently Nevada | Proximity Probes

Overview

The 330104-00-05-10-02-CN Proximity Probe from Bently Nevada is made in the USA. It seals pressure for industrial use. Made of good materials, it works well under set conditions. Email [email protected] for questions.

Technical Specification

• Brand: Bently Nevada
• Product No.: 330104-00-05-10-02-CN
• Product Type: 3300XL 8mm Proximity Probes
• Suffix Meanings:
  • “00”: 00mm unthreaded length
  • “05”: 05mm case length
  • “10”: 1.0m (3.3ft) total length
  • “02”: Mini connector, standard cable
  • “CN”: Country approval
• Electrical:
  • Input: Takes 3300 – series 5mm or 8mm Probe and cable
  • Power: – 17.5Vdc to – 26Vdc (non – incendive), – 23Vdc to – 26Vdc with barriers, 12mA max
  • Sensitivity: Output changes < 2mV per volt input
  • Resistance: 50Ω
• Mechanical:
  • Tip: Polyphenylene sulfide (PPS)
  • Case: AISI 303 or 304 steel
• DC Resistance: 7.59 ± 0.50Ω for 1.0m probe

Contact Information

Contact: For COO requests or pressure seal testing inquiries, email [email protected].

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
