🚀 Overview

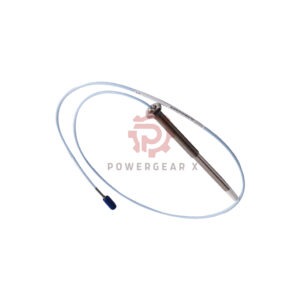

Bently Nevada’s 330104-00-06-20-01-CN 8mm armored proximity probe combines explosion-proof certification with 2.0m IP67 cable. Designed for hazardous Zone 0 areas, it maintains 7.88Ω±0.5 resistance across -40°C to +232°C extremes.
🔧 Model Code Breakdown
- ▸ 330104: Base model (8mm probe)
- ▸ 00: 0mm unthreaded length
- ▸ 06: 60mm case length
- ▸ 20: 2.0m cable length
- ▸ 01: ClickLoc connector with protector
- ▸ CN: Country-specific approval
⚡ Technical Specifications
- ▶ Voltage: -17.5Vdc to -26Vdc (±0.5%)
- ▶ Thread: M10x1 (8mm full depth)
- ▶ Temp: T1-T5 (-55°C~+232°C)
- ▶ Resistance: 7.88Ω±0.5 @ 20°C
- ▶ Torque: 8.5-10.5 N·m
- ▶ Certifications: ATEX/IECEx/CSA
⚠ Critical Notes
- ❗ Requires AISI 4140 steel target
- ❗ 1.27mm±0.05mm air gap mandatory
- ❗ Max altitude: 2000m
🛈 Complete documentation for 330104-00-06-20-01-CN
Contact: [email protected]
🛈For more detailed information:
3300 XL 8 mm Proximity Transducer System Datasheet
