330104-00-09-10-11-05 Bently Nevada | Proximity Probes

Overview

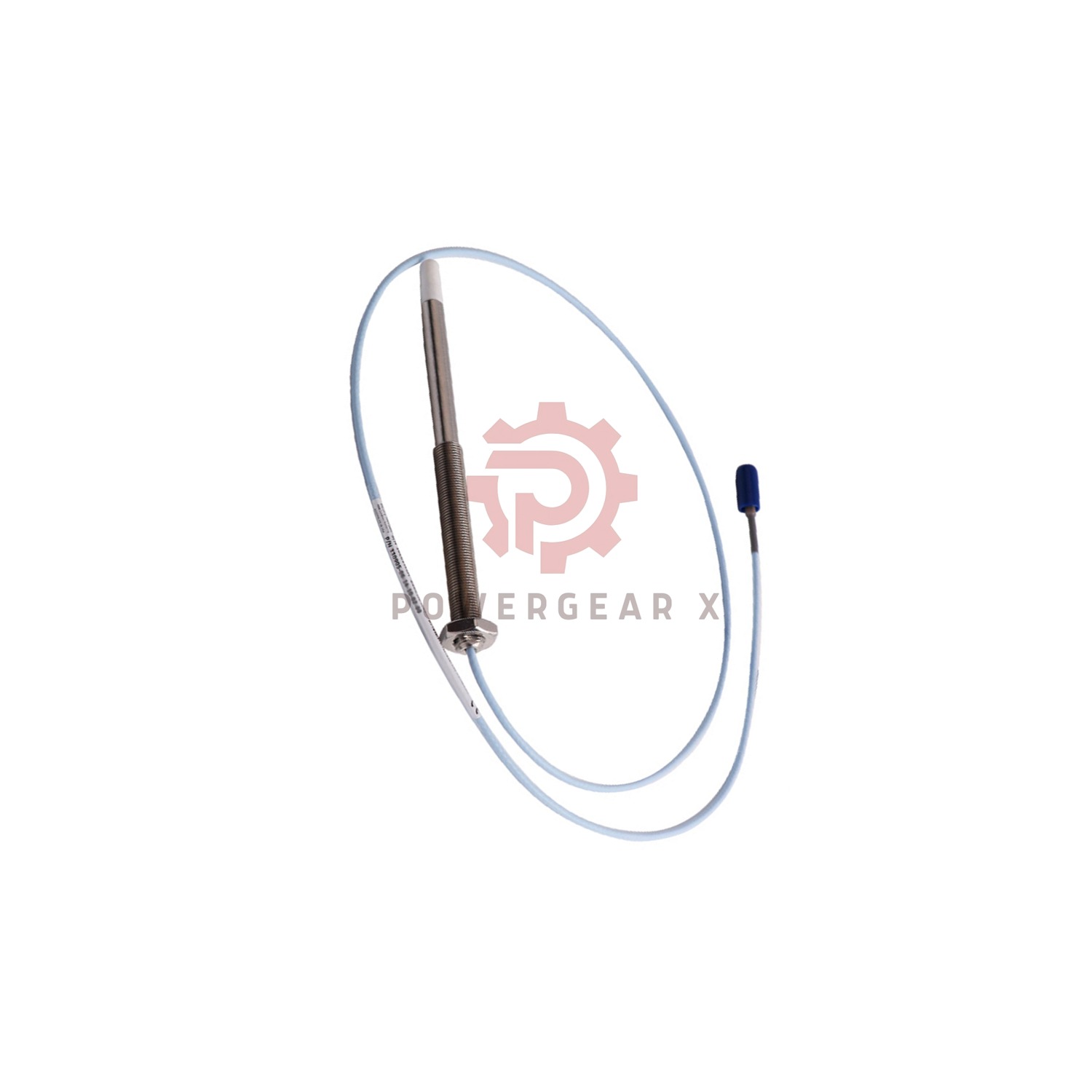

This is the Bently Nevada330104-00-09-10-11-05 3300XL 8mm Proximity Probe. Made in the U.S.A, it’s for industrial use. It can detect target position without contact. For more info, email [email protected].

Technical Specification

• Brand: Bently Nevada
• Product No.: 330104-00-09-10-11-05
• Product Type: 3300XL 8mm Proximity Probes
• Probe Features:
  • Thread: M10 x 1, with armor
  • Unthreaded Length: 00mm
  • Overall Case Length: 90mm
  • Total Length: 1.0m (3.3 feet)
  • Connector: Mini ClickLoc with protector, FluidLoc cable
  • Approval: CSA, ATEX, IECEx
• Electrical Specs:
  • Input: Takes 3300 – series 5mm or 3300XL 8mm probe and cable
  • Power: – 17.5Vdc to – 26Vdc (max 12mA), – 23Vdc to – 26Vdc with barriers
  • Sensitivity: < 2mV change per volt input change
  • Output Resistance: 50Ω
• Mechanical Specs:
  • Tip Material: PPS
  • Case Material: AISI 303 or 304 SST
  • DC Resistance: 7.59 ± 0.50Ω (1.0m length)
  • Pressure: Sealed with Viton® O – ring

Contact Information

Contact: For COO requests or pressure seal testing inquiries, email [email protected].

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
