Product details
Overview

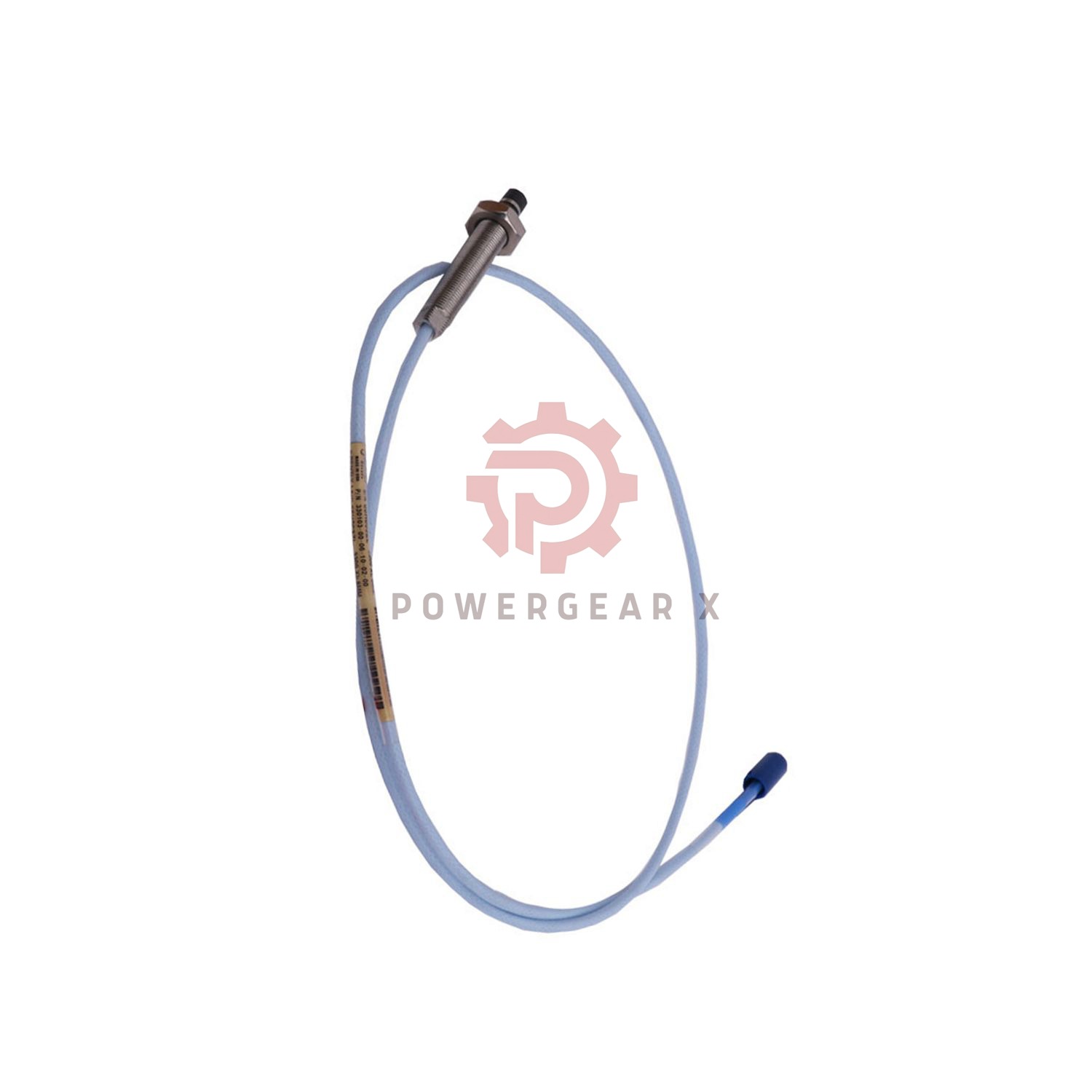

The Bently Nevada 330104-00-13-10-01-00 is a high-performance 8mm proximity probe from the 3300XL series. Designed for precision vibration and position monitoring, it features a durable stainless steel case and PPS tip. With a 1.0-meter cable and Miniature ClickLoc connector, it ensures reliable measurements in industrial applications.
Key Features
- 8mm sensing diameter for accurate measurements
- M10x1 threaded mounting for secure installation
- 7.59Ω±0.50 DC resistance at 25°C
Technical Specifications
- Brand: Bently Nevada
- Model: 330104-00-13-10-01-00
- Model Suffix Breakdown:
- 00: 0mm unthreaded length
- 13: 130mm case length
- 10: 1.0 meter cable
- 01: ClickLoc connector
- 00: No agency approval
- Tip Material: PPS (Polyphenylene sulfide)
- Case Material: AISI 303/304 stainless steel
- Operating Voltage: -17.5Vdc to -26Vdc
- Current Consumption: 12mA max
- Output Resistance: 50Ω±5%
- Temperature Range: -40°C to +120°C
- Pressure Rating: 3.5MPa (500psi)
Performance Data
- Linear Range: 2.0mm±0.1mm
- Sensitivity: 200mV/mil±5%
- Frequency Response: 0-10kHz
- Target Material: AISI 4140 steel
Contact Information
Contact: For COO requests or pressure seal testing inquiries, email sales@powergearx.com.
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
