Premium Vibration Monitoring Solution

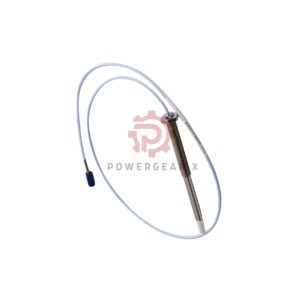

This industrial-grade 330104-00-16-10-02-05 proximity probe delivers precise measurement of shaft vibration and position. Engineered for reliability in demanding environments.
Product Highlights
- Brand: Bently Nevada
- Type: 3300 XL 8mm Proximity Probe
- Thread: M10×1 with armored protection
- Certifications: CSA, ATEX, IECEx
- Origin: Made in USA
Technical Specifications
| Electrical Resistance | 7.59Ω ±0.50 |
| Operating Voltage | -17.5Vdc to -26Vdc |
| Current Draw | 12mA maximum |
| Temperature Range | -40°C to +120°C |
| Pressure Rating | 20 bar (290 psi) |
| Output Impedance | 50Ω ±5% |
Detailed Configuration( 330104-00-16-10-02-05)
- 330104 – Base model
- 00 – 0mm unthreaded length
- 16 – 160mm case length
- 10 – 1.0 meter cable
- 02 – ClickLoc connector
- 05 – Hazardous area approvals
Construction Details
- Probe Tip: PPS (Polyphenylene sulfide)
- Housing: AISI 303/304 stainless steel
- Seal: Viton® O-ring (FKM)
- Connector: Miniature coaxial ClickLoc
Ordering Information
Contact our sales team for volume pricing and lead times:
Email: [email protected]
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
