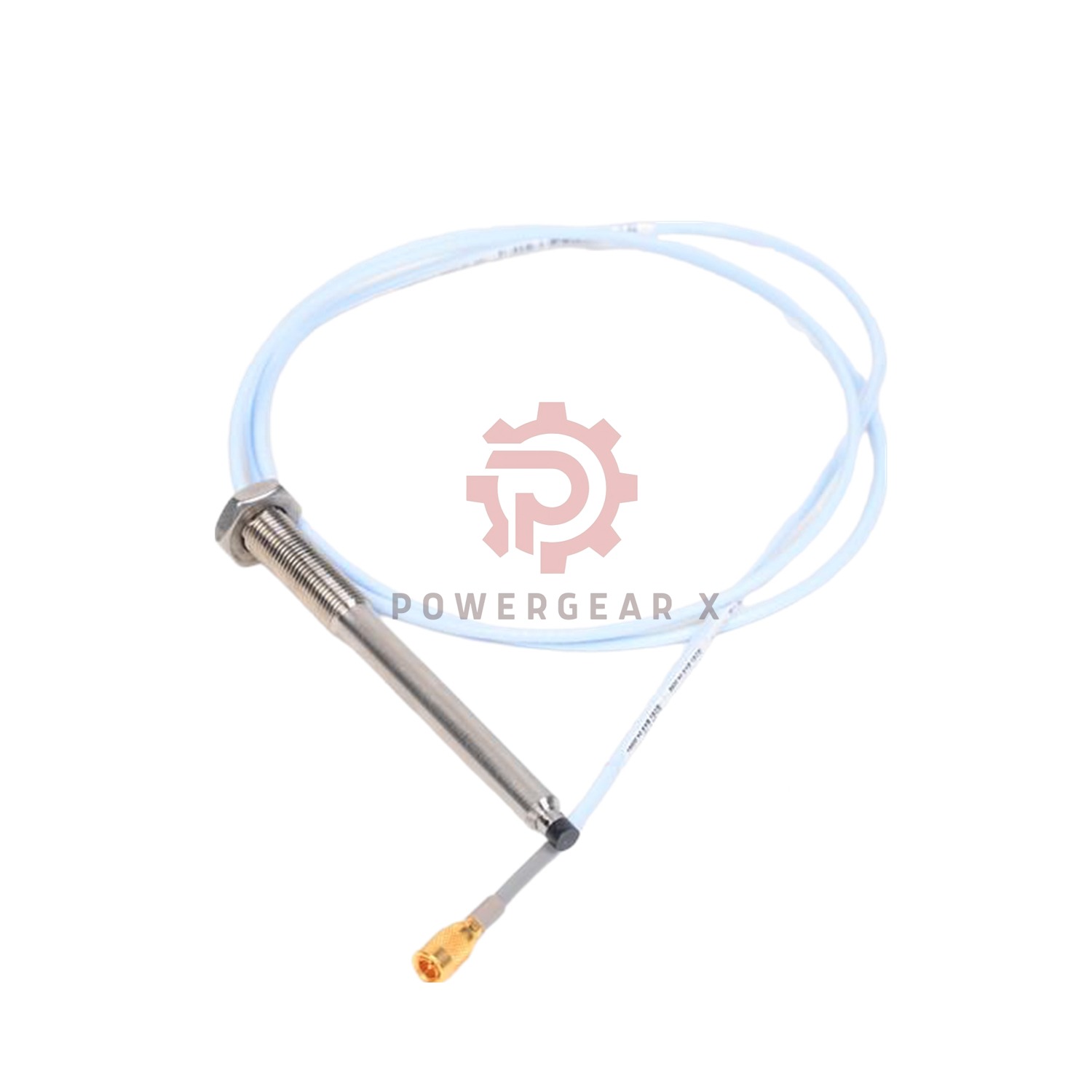

330104-14-19-10-11-CN Bently Nevada | Proximity Probes

Overview

For industrial applications demanding high – precision and reliability, the 330104-14-19-10-11-CN 3300 XL 8 mm Proximity Probe from Bently Nevada is an outstanding choice. Manufactured in the U.S.A., it excels at sealing differential pressure. With top – notch materials, it ensures stable performance over time. For further details, contact [email protected].

Technical Specification

• Brand: Bently Nevada
• Product No.: 330104-14-19-10-11-CN
• Product Type: 3300 XL 8 mm Proximity Probes
• Suffix Meanings
  • “14” (Unthreaded Length Option): Unthreaded length is 14mm.
  • “19” (Overall Case Length Option): Overall case length is 19mm.
  • “10” (Total Length Option): Total length is 1.0 meter (3.3 feet).
  • “11” (Connector and Cable – Type Option): Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable.
  • “CN” (Agency Approval Option): Country Specific Approval.
• Electrical
  • Input: Accepts one non – contacting 3300 – series 5 mm or 3300 XL 8 mm Proximity Probe and Extension Cable.
  • Supply Sensitivity: Output voltage changes less than 2 mV per volt input change. In a 1.2 V input test, output changed 1.3 mV.
  • Output Resistance: 50 Ω with ± 1.2 Ω tolerance.
  • Common – Mode Rejection Ratio (CMRR): > 80 dB, reducing interference from common – mode signals.
  • Input Bias Current: Less than 10 nA, minimizing the impact on the measured circuit.
• Mechanical
  • Probe Case Material: AISI 303 or 304 stainless steel. The ultimate tensile strength is around 515 MPa.
  • Operating Temperature Range: – 35°C to + 80°C. The sensitivity change is less than 0.3% per 10°C change.
  • Ingress Protection Rating: IP67, protecting against dust and water immersion.
  • Torsional Strength: Can withstand a torque of up to 5 N·m without damage.
