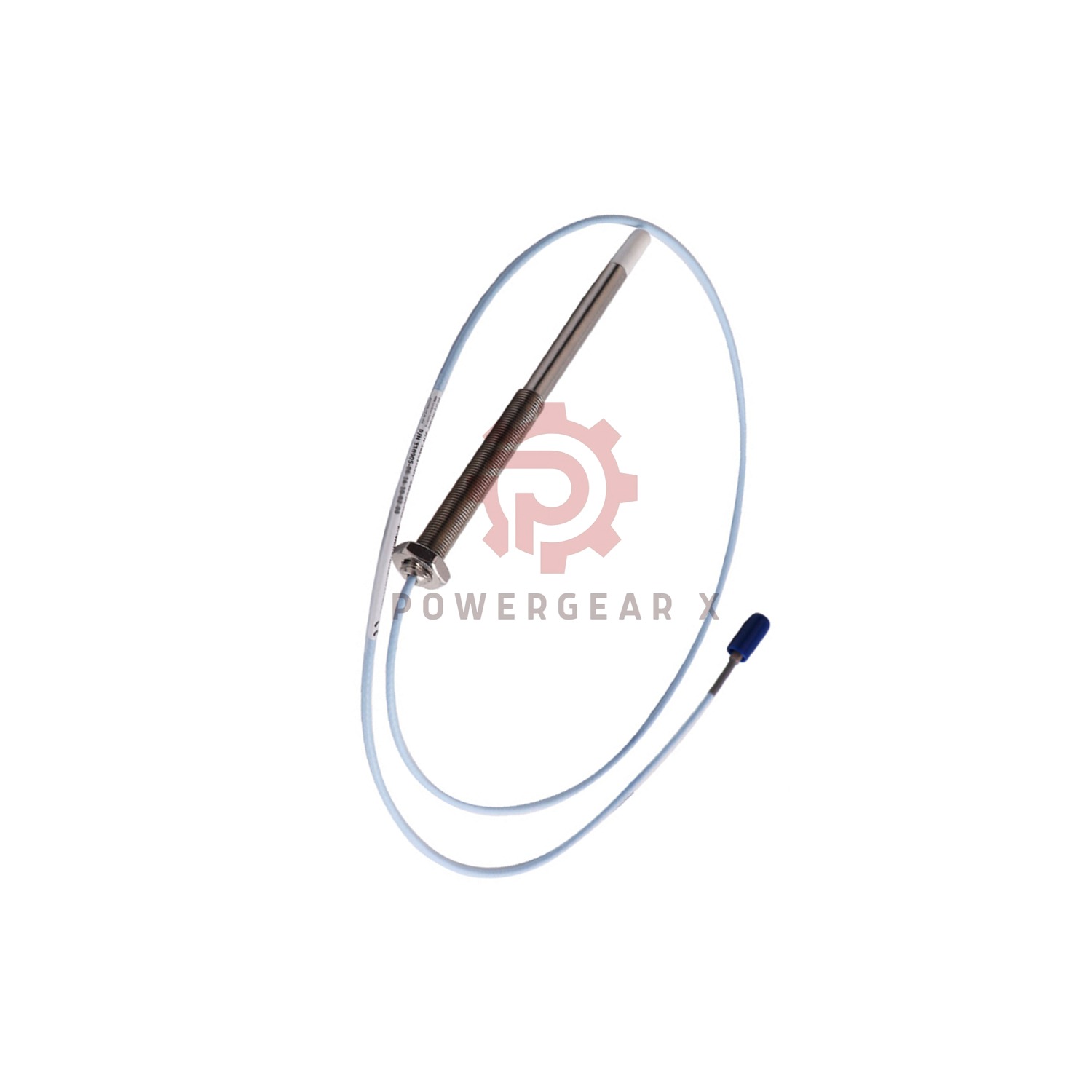

Bently Nevada 330851-02-000-066-50-00-CN

25mm High-Temp Turbine Probe with 5.0m PFA Cable. Model 330851-02-000-066-50-00-CN. Built for 200°C continuous steam environments. M30x2 thread, 66mm case, country-specific approvals.

🔍 Precision Specifications

• ► Electrical:
  • Resistance: 7.5Ω ±0.8Ω
  • Cable Type: 75Ω triaxial (PFA insulation)
  • Output: 50Ω ±2%
• ► Mechanical:
  • Thread: M30x2 (163N·m max torque)
  • Case Length: 66mm ±0.5mm
  • Weight: 230g (no armor) / 330g (armored)

🔥 Thermal Performance

• Continuous Temp: -35°C to +200°C (-31°F to +392°F)
• Peak Temp: +250°C for ≤24hrs (482°F)
• Storage Temp: -50°C to +80°C

📐 Model Code Breakdown

330851-02-000-066-50-00-CN
02    → M30x2 threaded case
000   → 0in unthreaded length
066   → 66mm overall case
50    → 5.0m cable (16.4ft)
00    → No armor
CN    → Local certification

⚙️ Installation Data

• Recommended Torque: 68N·m (50ft-lb)
• Target Gap: 1.27mm ±0.1mm
• Load Requirement: 10kΩ minimum

📜 Compliance Details

• ✓ ABS Marine Rules 4-9-7/13
• ✓ RoHS 2011/65/EU
