AI-Tek Instruments | 70085-1010-403 | Speed Sensor

Overview

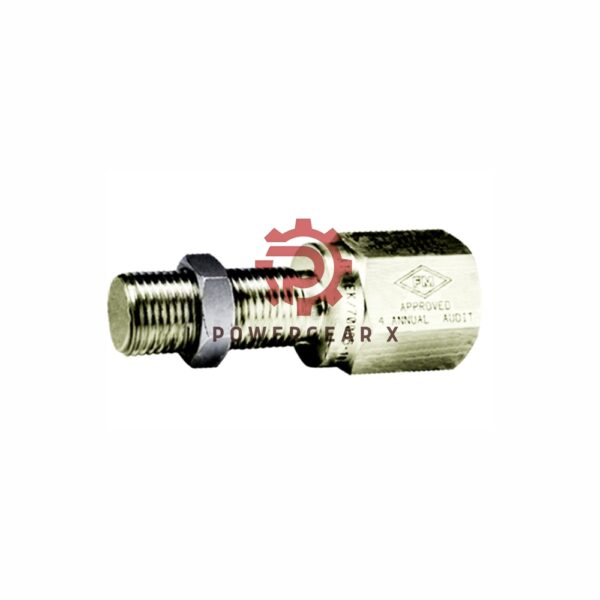

The AI-Tek Instruments model 70085-1010-403 is a robust FM/ATEX certified passive speed sensor designed for high-performance applications. It offers reliable signal output with a guarantee voltage of 9.4 V (P-P) and operates over an extended temperature range from -55°C to +232°C, making it suitable for demanding environments.

Features:

• Thread Size: 5/8-18 UNF-2A
• Thread Length: 1.5 inches (38.10 mm)
• Output Voltage (Standard): 90 V (P-P)
• Output Voltage (Guarantee Point): 9.4 V (P-P)
• DC Resistance: 750 ohms max.
• Typical Inductance: 210 mH max.
• Output Polarity: White lead positive
• Cable Length: 15 ft (4.57 m)
• Agency Approval: FM / ATEX Certified
• Operating Temperature Range: -55°C to +232°C

Technical Specifications:

• Brand: AI-Tek Instruments
• Model: 70085-1010-403
• Thread Size: 5/8-18 UNF-2A
• Thread Length: 1.5 inches
• Sensor Length: 2.75 inches
• Output Voltage: 9.4 V (P-P) guaranteed
• Mounting Thread: -0405, 3/4-20 UNEF-2A
• Cable Length: 15 ft (4.57 m)
• Weight: 16 oz. max
• Operating Temperature: -55°C to +232°C

FAQ:

Q: What is the operating temperature range of the 70085-1010-403 sensor?
A: The sensor operates in temperatures from -55°C to +232°C.

Q: What is the output voltage of this sensor?
A: The standard output voltage is 90 V (P-P), with a guarantee point of 9.4 V (P-P).

Q: Does this sensor have agency approvals?
A: Yes, the sensor is FM / ATEX certified.

For more detailed information, please check official datasheet: Passive-Sensor_UL-ATEX-CSA
