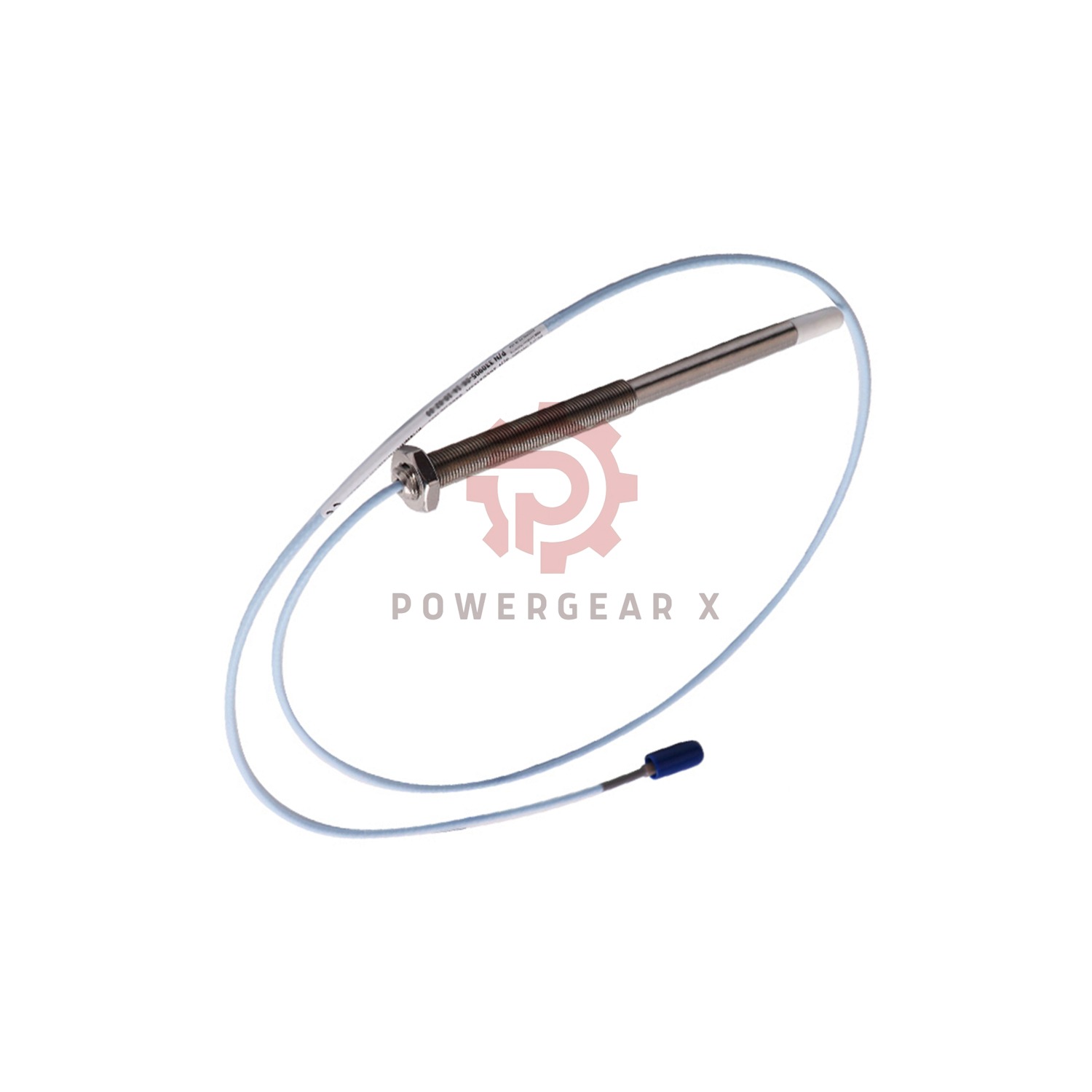

Bently Nevada 330104-00-06-20-01-05 Proximity Probes 3300 XL 8 mm

🚀 Industrial-Grade Performance

The Bently Nevada 330104-00-06-20-01-05 8mm armored probe excels in hazardous areas with dual certifications (ATEX/IECEx/CSA). Featuring 2.0m heavy-duty cable and 60mm compact case, it maintains 7.88Ω±0.5 resistance across -55°C to +232°C extremes.

🔧 Technical Specifications

• ⚡ Voltage Range: -17.5Vdc to -26Vdc (±0.8%)
• ⚡ Current Draw: 12mA @ 24Vdc (non-incendive)
• ⚡ Cable Length: 2.0m (6.6ft) with strain relief
• ⚡ Thread Spec: M10x1 (8mm engagement)
• ⚡ Seal Rating: IP67 (submersion protection)
• ⚡ Temp Class: T1~T5 Ga/Gc compliant

📜 Explosion Protection Details

• ✅ ATEX: II 1G Ex ia IIC T5-T1 Ga
• ✅ IECEx: Ex ia IIC T5 Ga
• ✅ CSA: Class I Div 1 Gr A-D
• ✅ EPL: Ga/Gc/Dc (Zone 0/1/2)
• ✅ Ingress: IP66/67 per IEC 60529

⚠ Critical Installation Parameters

• ▶ Target Material: AISI 4140 steel (HRC 22-32)
• ▶ Air Gap: 1.27mm ±0.05mm (50±2 mils)
• ▶ Mount Torque: 8.5-10.5 N·m (75-93 lb-in)
• ▶ Barrier Type: Zener #141092/ Galvanic #140979

🚨 Full technical dossier for 330104-00-06-20-01-05 available
Contact [email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
