Bently Nevada 330104-00-08-10-01-CN Proximity Probes

Overview

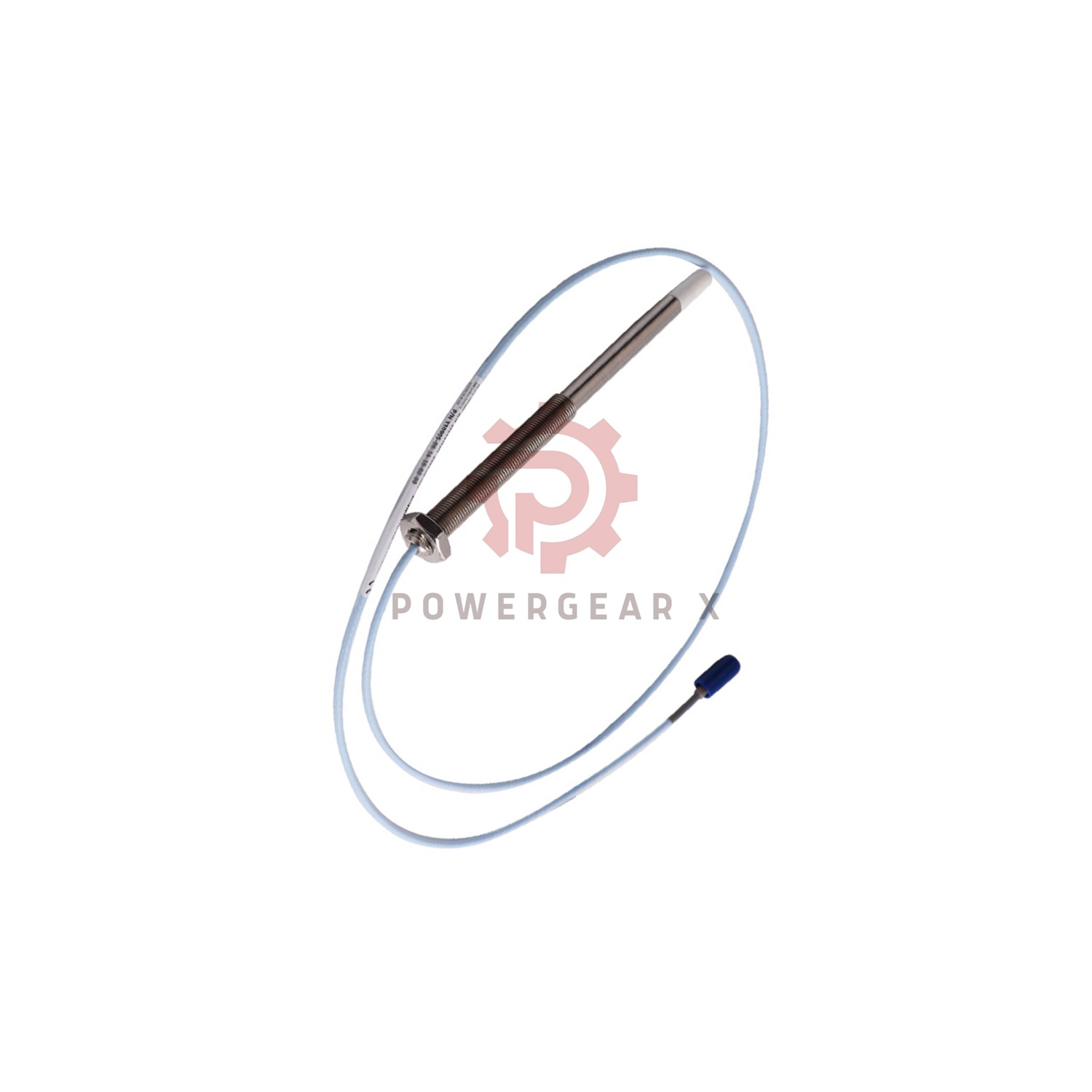

This is a 330104-00-08-10-01-CN 3300XL 8mm Proximity Probe from Bently Nevada.The probe features a unique design with specific length and connector options, and can effectively seal differential pressure.

Technical Specification

• Brand: Bently Nevada
• Product No.: 330104-00-08-10-01-CN
• Product Type: 3300XL 8mm Proximity Probes

Probe Physical Features

• Overall Case Length: The “08” indicates 80mm
• Total Length: 1.0 meter (3.3 feet)
• Connector and Cable – Type: 01, Miniature coaxial ClickLoc connector with connector protector, standard cable

Material and Pressure

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Probe Pressure: Sealed by a Viton® O – ring

Electrical Specifications

• Proximitor Sensor Input: Accepts one non – contacting 3300 – series 5mm or 3300XL 8mm Proximity Probe and Extension Cable
• Power Supply:
  • Requires – 17.5Vdc to – 26Vdc for non – incendive circuit (max 12mA)
  • Supply Sensitivity: Less than 2mV change in output voltage per volt change in input voltage
  • Output Resistance: 50 Ω

Contact Information

For inquiries: [email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
