Overview

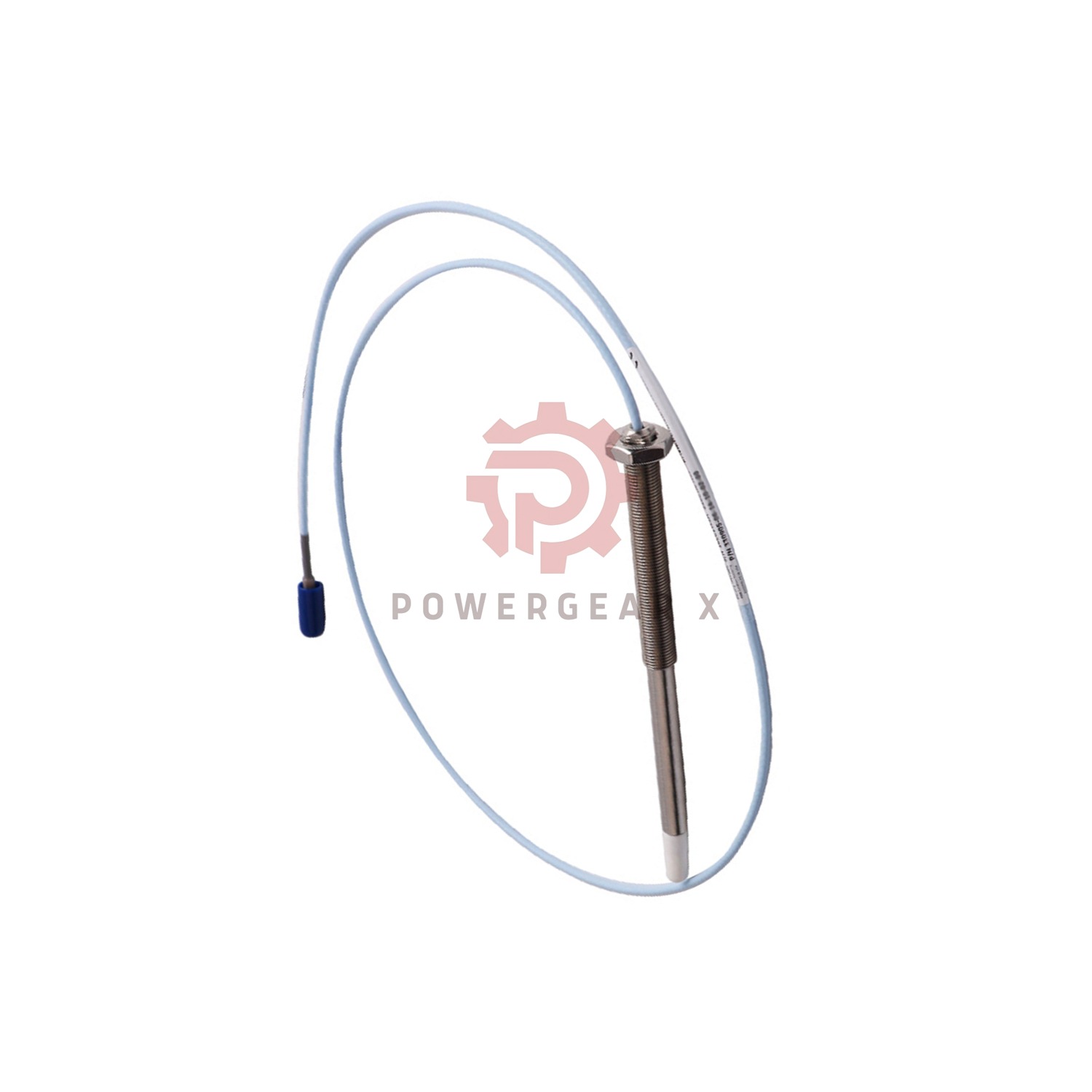

The Bently Nevada 330104-00-10-50-02-05 is an 8 mm industrial proximity probe optimized for high-stability measurements in extreme environments. With a 100 mm stainless steel case and PPS sensor tip, it resists corrosion and thermal stress. Ideal for hazardous zones, it meets ATEX, IECEx, and CSA safety standards.
Model Breakdown
- 330104-00-10-50-02-05:
- 00: 0 mm unthreaded section
- 10: 100 mm case length
- 50: 5.0-meter cable (16.4 ft)
- 02: ClickLoc coaxial connector
- 05: ATEX/IECEx/CSA certified
Core Specifications
Electrical
- Input Range: -17.5 Vdc to -26 Vdc (±0.5 V tolerance)
- Output Impedance: 50Ω (±2Ω)
- Probe Resistance: 8.73Ω ±0.50 at 25°C
Mechanical
- Thread Type: M10 x 1 (ISO metric)
- Case Material: AISI 304 SST (Vickers hardness 200 HV)
- Seal: Viton® O-ring (FKM), rated for 2000m altitude
Environmental
- Operating Temp: -55°C to +232°C (T1 rating)
- Vibration Resistance: 20 g peak (10-2000 Hz)
- Shock Survival: 100 g (11 ms duration)
Certifications
AEx/Ex ia IIC T1-T5 (Zone 0)- AEx/Ex ec IIC T1-T5 (Zone 2)
- UL/cUL Class I Div 2, Groups A-D
For pricing or technical queries, email sales@powergearx.com.
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
