Bently Nevada 330104-00-15-10-01-CN Proximity Probes

Overview

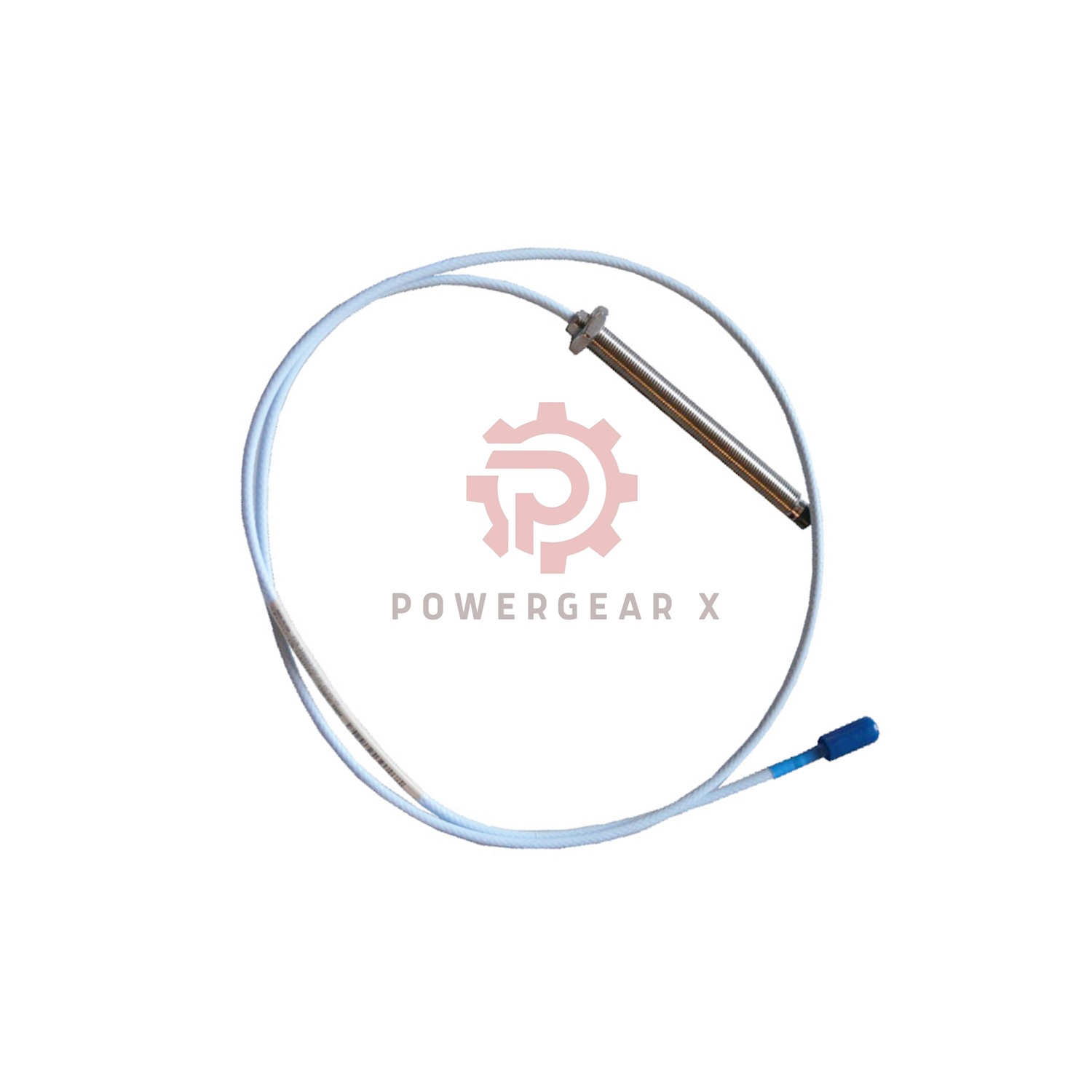

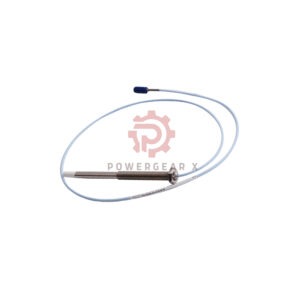

The Bently Nevada 330104-00-15-10-01-CN 3300 XL 8 mm Proximity Probe is from the U.S.A. It’s good for industrial non – contact measurement. Email [email protected] for more.

Technical Specification

• Brand: Bently Nevada
• Product No.: 330104-00-15-10-01-CN
  • 330104: Basic 3300 XL 8 mm probe with M10 x 1 thread and armor.
  • 00: 0 mm unthreaded length.
  • 15: 150 mm case length.
  • 10: 1.0 – meter total length.
  • 01: Mini ClickLoc connector with protector, standard cable.
  • CN: Country – specific approval.
• Probe Features:
  • Thread: M10 x 1, armored.
  • Lengths: 0 mm, 15 mm, 1.0 m.
  • Connector: Mini ClickLoc with protector, 45 pF/m cable.
  • Approval: Meets local rules.
• Electrical Specs:
  • Input: Takes 3300 – series 5 mm/8 mm probe & cable. 10 pF input cap.
  • Power: – 17.5 Vdc – 26 Vdc (max 12 mA), – 23 Vdc – 26 Vdc with barriers. 9 mA at – 24 Vdc.
  • Sensitivity: < 1.6 mV change per volt input.
  • Output Resistance: 50 Ω.
• Mechanical Specs:
  • Tip Material: PPS, resists up to 220°C, good abrasion.
  • Case Material: AISI 303/304 SST, resists corrosion, 150 – 200 HB hard.
  • DC Resistance: 7.65 ± 0.40 Ω (1.0 m).
  • Pressure: Sealed with Viton O – ring, 12 bar max.
• Performance:
  • Temp: Works from – 35°C to 90°C, ± 0.4% error.
  • Altitude: Up to 3500 m, 0.08% drift per 1000 m.
  • Vibration: Withstands 20 g (10 – 2000 Hz).

Contact Information

For inquiries: [email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
