Introduction

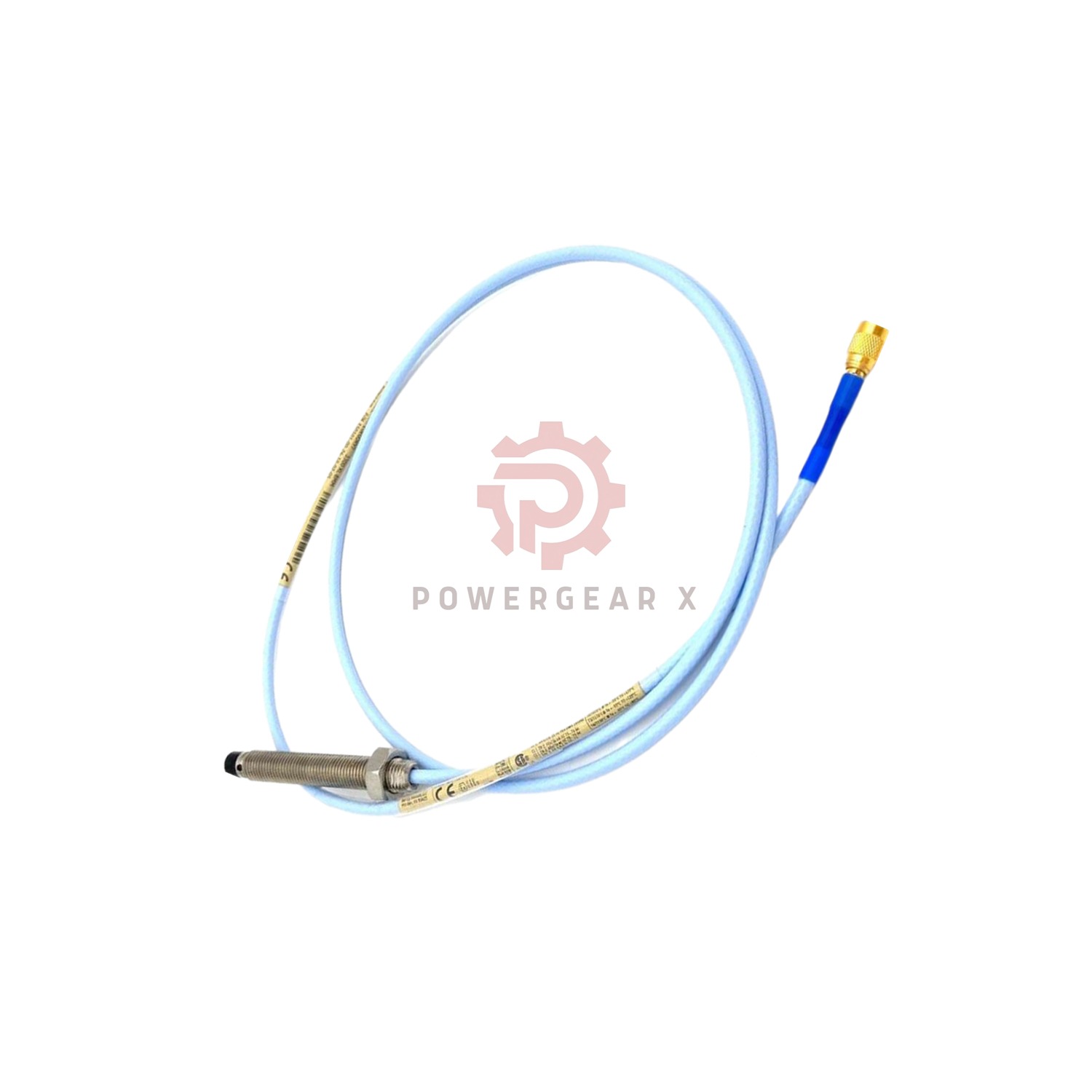

Bently Nevada’s 330104-00-19-10-01-05 is a 3300 XL 8 mm Proximity Probe, proudly made in the U.S.A. With an M10 x 1 threaded armored structure, it can effectively seal the differential pressure between the probe tip and case. This design, coupled with its CSA, ATEX, and IECEx approvals, makes it a reliable choice for non – contacting measurement in industrial settings.

Technical Details

• Brand: Bently Nevada, a well – established name in the manufacturing of high – quality probes.
• Model: 3300 XL 8 mm Proximity Probes, engineered for accurate non – contacting measurements.
• Product Number: 330104-00-19-10-01-05
  • Physical Specifications
    • Unthreaded length: 0 mm, which impacts the probe’s installation and interaction with the target.
    • Overall case length: 19 mm, contributing to its compact and robust build.
    • Total length: 1.0 meter (3.3 feet), providing flexibility in measurement setups.
    • Connector: Miniature coaxial ClickLoc connector with a connector protector and a standard cable, ensuring secure and stable signal transmission.
  • Electrical Specifications
    • Input: Can accommodate one non – contacting 3300 – series 5 mm or 3300 XL 8 mm Proximity Probe along with an Extension Cable.
    • Power: Demands a power supply in the range of – 17.5 Vdc to – 26 Vdc when installed with a non – incendive circuit as per installation drawing 140979, consuming a maximum of 12 mA. When used with barriers, the voltage range is – 23 Vdc to – 26 Vdc. A voltage more positive than – 23.5 Vdc may lead to a reduction in the linear range.
    • Sensitivity: Displays less than 2 mV change in output voltage for every volt change in input voltage, indicating high stability.
    • Output resistance: 50 Ω, which is crucial for proper electrical functioning.
    • Nominal probe DC resistance: For a 1 – meter probe, it is 7.59 ± 0.50 Ω.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
