Bently Nevada 330104-10-16-10-12-CN Proximity Probes

Overview

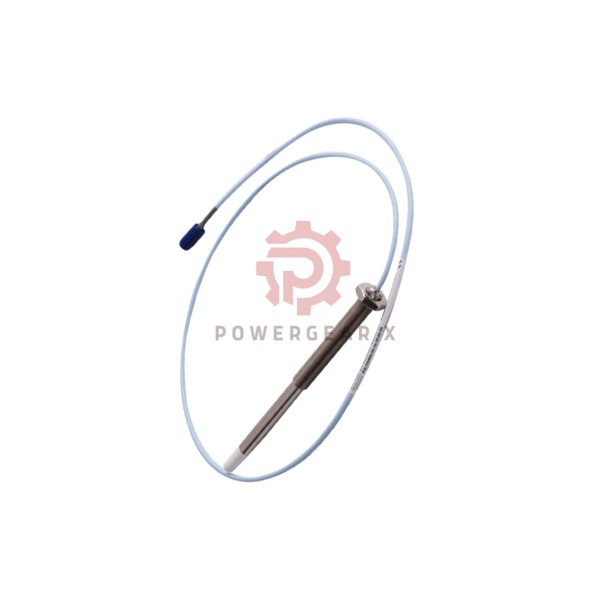

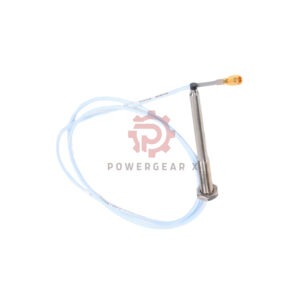

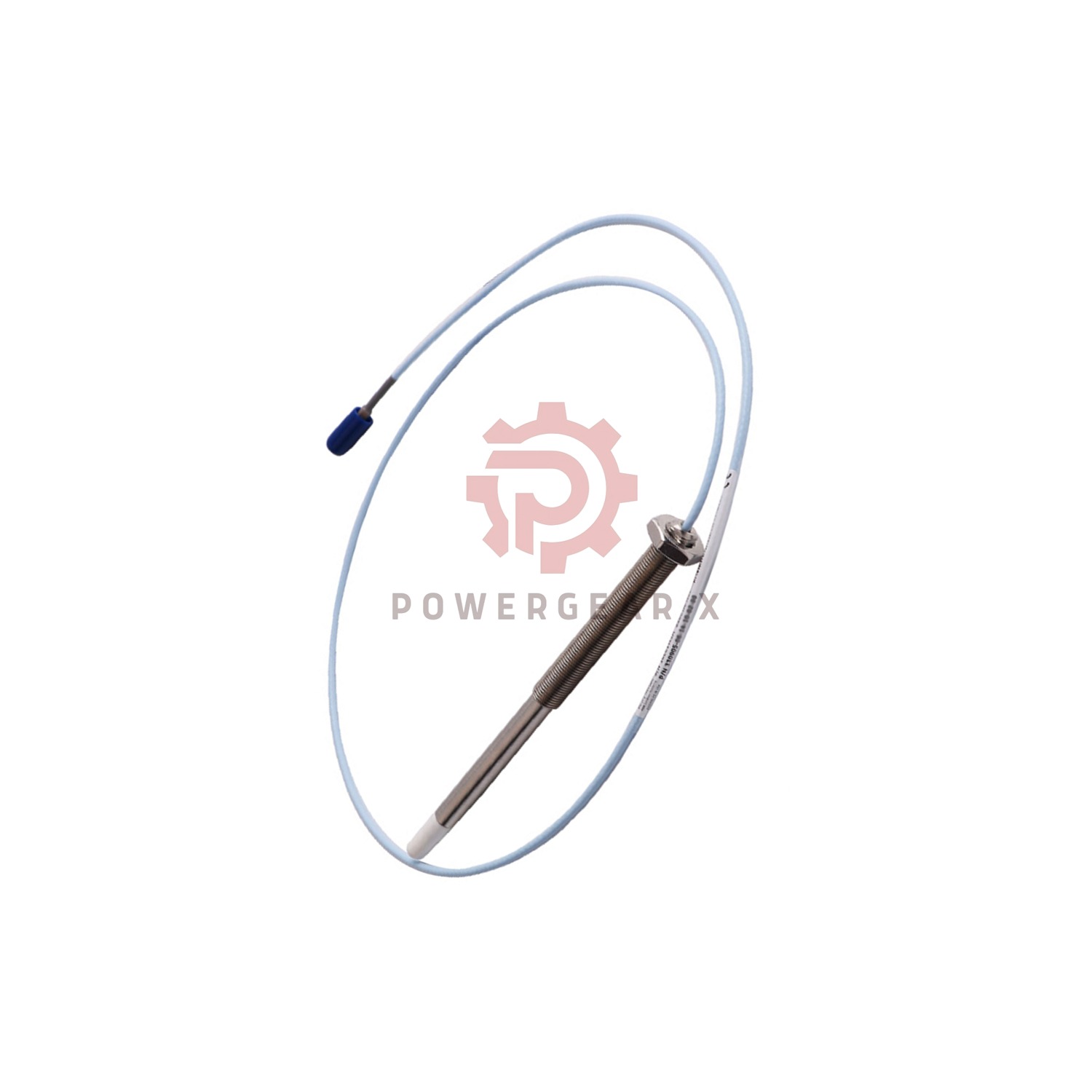

The 330104-10-16-10-12-CN 3300 XL 8 mm Proximity Probe, made by Bently Nevada in the U.S.A., is designed for industrial applications. It can seal differential pressure effectively and is made of high – quality materials. For more information, contact [email protected].

Technical Specification

• Brand: Bently Nevada
• Product No.: 330104-10-16-10-12-CN
• Product Type: 3300 XL 8 mm Proximity Probes
• Suffix Meanings:
  • “10” (Unthreaded Length Option): Unthreaded length is 10mm.
  • “16” (Overall Case Length Option): Overall case length is 16mm.
  • “10” (Total Length Option): Total length is 1.0 meter (3.3 feet).
  • “12” (Connector and Cable – Type Option): Miniature coaxial ClickLoc connector, FluidLoc cable.
  • “CN” (Agency Approval Option): Country Specific Approval.
• Electrical:
  • Supply Sensitivity: Output voltage changes less than 2 mV per volt change in input voltage. In a 0.5 V input change test, the output voltage change was 0.8 mV.
  • Output Resistance: 50 Ω with a tolerance of ± 1.5 Ω.
  • Bandwidth: 0 – 10 kHz, which means it can accurately detect signals within this frequency range.
  • Noise Level: Less than 0.1 mV rms, ensuring a clean output signal.
• Mechanical:
  • Probe Tip Material: Polyphenylene sulfide (PPS). Its dielectric constant is about 3.5 at 1 MHz.
  • Probe Case Material: AISI 303 or 304 stainless steel. The yield strength of the case material is around 205 MPa.
  • Operating Temperature Range: – 30°C to + 75°C. The zero – point output shift is less than 0.2% per 10°C change within this range.

Contact Information

For inquiries: [email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
