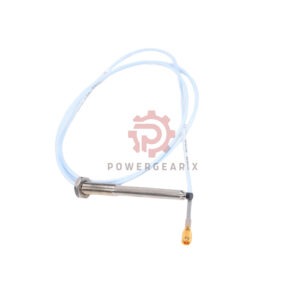

Bently Nevada 330851-02-000-080-50-01-CN Proximity Probes 3300 XL 25 mm

Bently Nevada 330851-02-000-080-50-01-CN

25mm Armored Turbine Probe with 5m FluidLoc® Cable. Model 330851-02-000-080-50-01-CN. Built for 250°C steam environments. Features M30x2 threads, 80mm case, and stainless steel armor.

📌 Precision Specifications

• ► Electrical:
  • DC Resistance: 7.5Ω ±0.8Ω @20°C
  • Cable: 75Ω triaxial (PFA insulation)
  • Load Requirement: 10kΩ ±5%
• ► Mechanical:
  • Thread: M30x2 (163N·m max torque)
  • Case Length: 80.0mm ±0.3mm
  • Weight: 330g ±5g (with armor)

🔥 Thermal Limits

• Continuous: -35°C to +200°C (392°F)
• 24hr Peak: +250°C (482°F)
• Storage: -50°C to +80°C

🔧 Model Code

330851-02-000-080-50-01-CN
02    → M30x2 thread
000   → 0in unthreaded
080   → 80mm case
50    → 5.0m cable
01    → Stainless steel armor
CN    → Local certifications

📜 Compliance

• ✓ ABS 4-9-7/13 (Marine)
• ✓ FCC Part 15 Class A
• ✓ EN 61000-6-2/4 EMC
• ✓ RoHS 2011/65/EU

⚙️ Installation

• Optimal Gap: 1.27mm ±0.05mm
• Torque: 68N·m (50ft-lb)
• Calibration Target: AISI 4140 steel
