Bently Nevada | Proximity Probes | 330104-00-09-10-11-CN

Overview

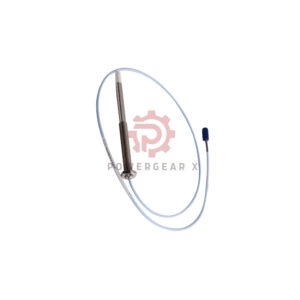

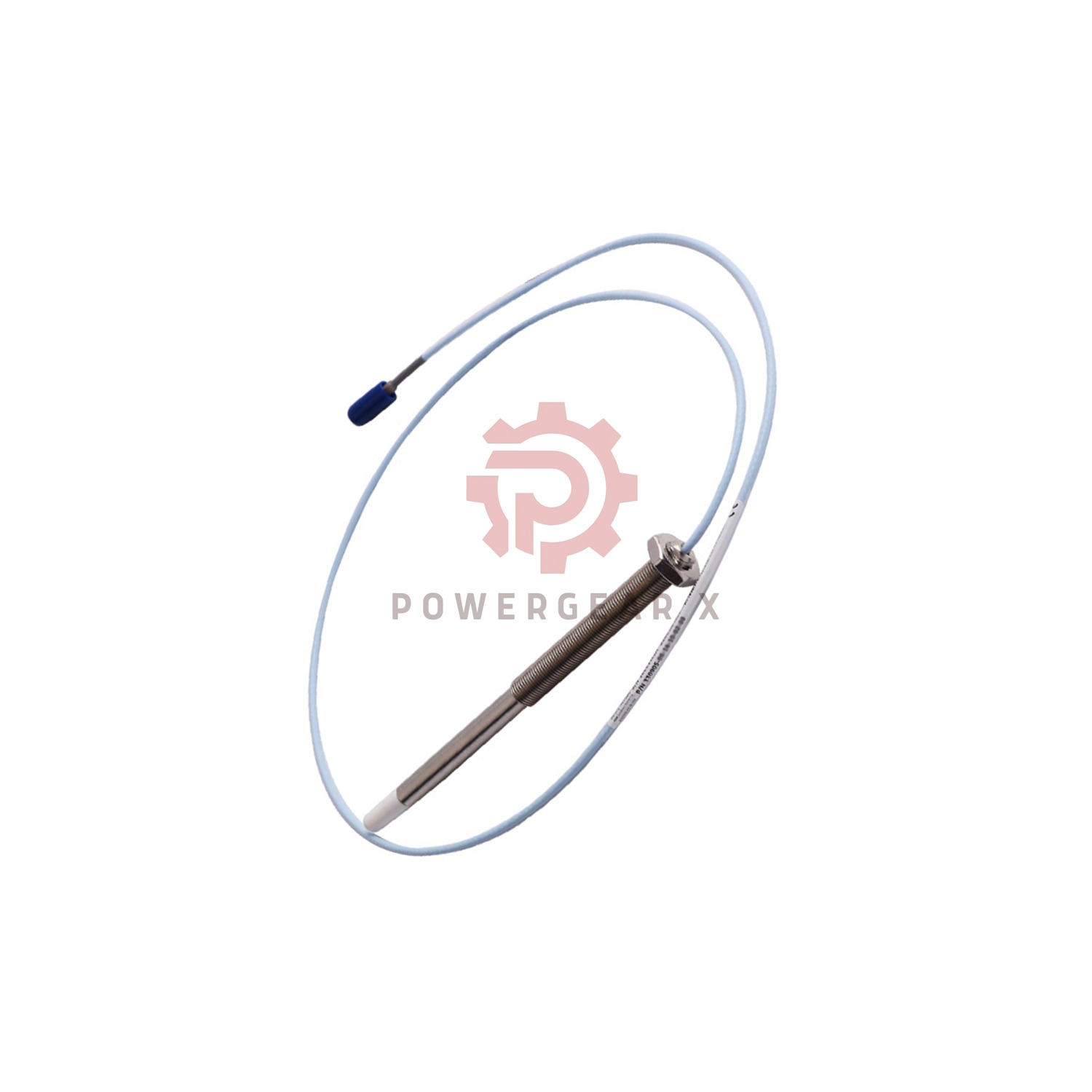

This is Bently Nevada’s 330104-00-09-10-11-CN 3300XL 8mm Proximity Probe. Made in USA. Good for industry. Detects targets without contact. Email [email protected] for more.

Technical Specification

• Brand: Bently Nevada
• Product No.: 330104-00-09-10-11-CN
• Product Type: 3300XL 8mm Proximity Probes
• Probe Features:
  • Thread: M10 x 1, with armor
  • Unthreaded: 00mm
  • Case Length: 90mm
  • Total Length: 1.0m (3.3 ft)
  • Connector: Mini ClickLoc with protector, FluidLoc cable
  • Approval: Country – specific
• Electrical:
  • Input: Takes 3300 – series 5mm/8mm probe & cable
  • Power: – 17.5Vdc – 26Vdc (max 12mA), – 23Vdc – 26Vdc with barriers
  • Sensitivity: < 2mV change per volt input
  • Output Resistance: 50Ω
• Mechanical:
  • Tip: PPS
  • Case: AISI 303/304 SST
  • DC Resistance: 7.59 ± 0.50Ω (1.0m)
  • Pressure: Sealed with Viton O – ring

Contact Information

Contact us: [email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
