Bently Nevada | Proximity Probes | 330104-00-40-10-02-CN

Overview

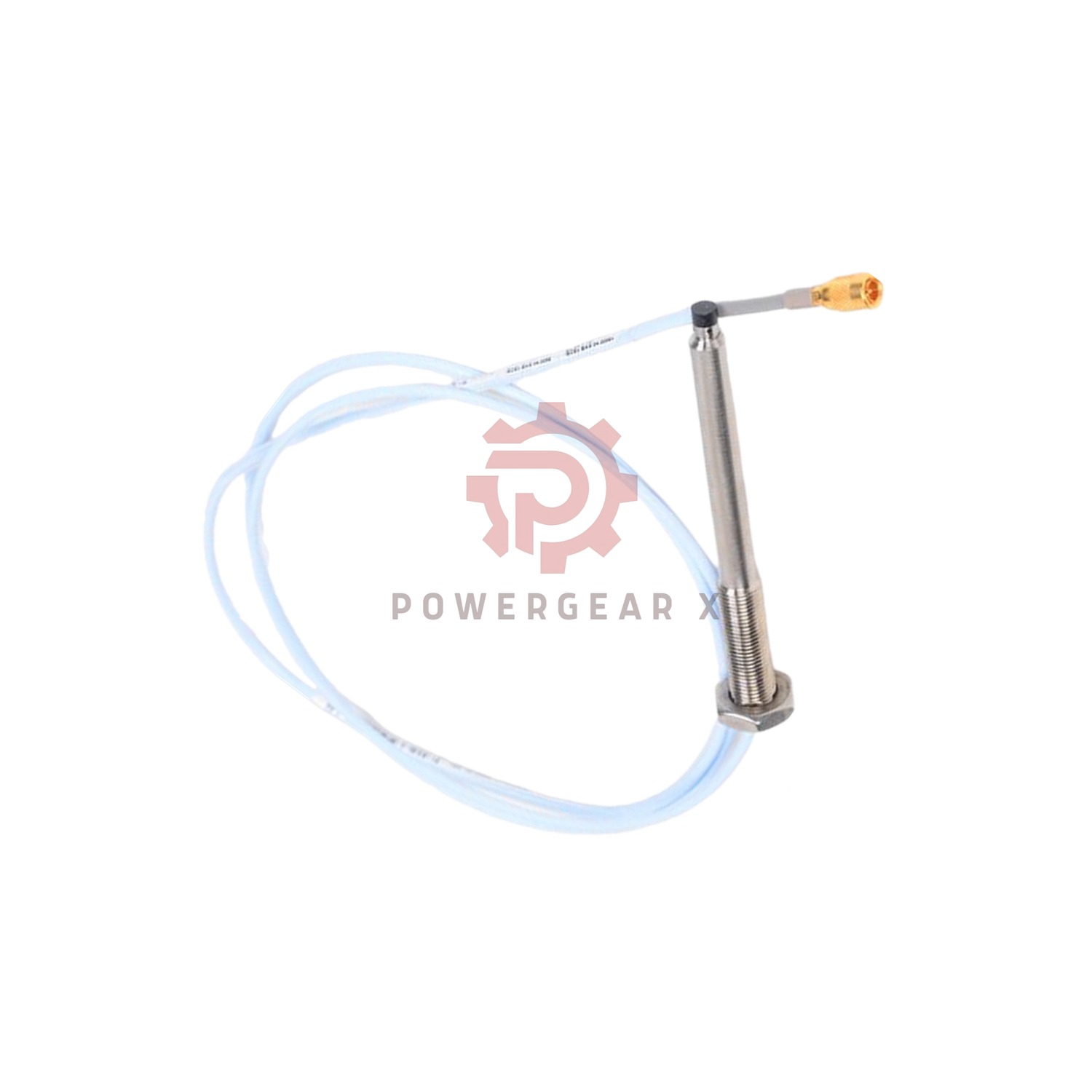

The 330104-00-40-10-02-CN 3300 XL 8 mm Proximity Probe by Bently Nevada, made in the U.S.A., is a high – performance sensor for industrial applications. It offers reliable pressure sealing and operates stably under various conditions. For any inquiries, contact [email protected].

Technical Specification

• Brand: Bently Nevada
• Product No.: 330104-00-40-10-02-CN
• Product Type: 3300 XL 8 mm Proximity Probes
• Suffix Meanings:
  • “00”: Unthreaded length is 00mm.
  • “40”: Overall case length is 40mm.
  • “10”: Total length is 1.0 meter (3.3 feet).
  • “02”: Miniature coaxial ClickLoc connector with standard cable.
  • “CN”: Country – specific approval.
• Electrical:
  • Input: Accepts 3300 – series 5 mm or 3300 XL 8 mm Proximity Probe and extension cable.
  • Power: Requires – 17.5 Vdc to – 26 Vdc (non – incendive), – 23 Vdc to – 26 Vdc with barriers, max 12 mA. The power consumption at – 20 Vdc is approximately 10 mA.
  • Sensitivity: Output voltage changes less than 2 mV per volt input change. In a test with a 1 V input voltage change, the output voltage change was measured to be 1.5 mV.
  • Output Resistance: 50 Ω. The tolerance of the output resistance is ± 2 Ω.
  • Linearity Error: Within ± 0.5% of the full – scale output over the range of 0.5 – 2.5 mm gap from the target.
  • Response Time: Less than 100 μs for a step change in the target position.
• Mechanical:
  • Probe Tip Material: Polyphenylene sulfide (PPS). The hardness of the PPS tip is approximately 80 Rockwell R.
  • Probe Case Material: AISI 303 or 304 stainless steel. The surface roughness of the case is Ra 0.8 μm.
  • Operating Temperature Range: – 40°C to + 85°C. The performance degradation rate is less than 1% per 10°C change within this range.
  • Shock Resistance: Can withstand a shock of 1000 g for 1 ms without damage.
  • Vibration Resistance: Operates normally under a vibration of 20 g at 10 – 2000 Hz.
• Nominal Probe DC Resistance: 7.59 ± 0.50 Ω for 1.0 – meter probe. The temperature coefficient of the DC resistance is approximately 0.0039/°C.
