Bently Nevada | Proximity Probes | 330104-04-10-10-02-CN

Overview

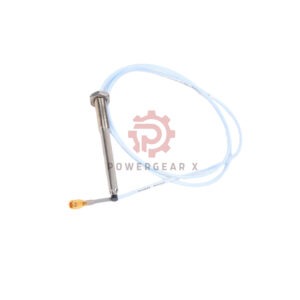

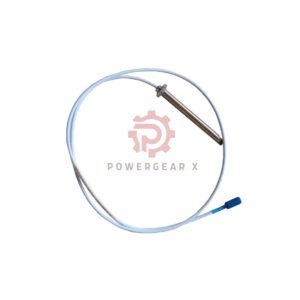

The Bently Nevada 330104-04-10-10-02-CN 3300 XL 8 mm Proximity Probe is made in the U.S.A. It’s for non – contact measurement in industry. Contact [email protected] for more.

Technical Specification

• Brand: Bently Nevada
• Product No.: 330104-04-10-10-02-CN
  • 330104: Base model with M10 x 1 thread and armor.
  • 04: 40 mm unthreaded length.
  • 10: 100 mm case length.
  • 10: 1.0 – meter total length.
  • 02: Mini ClickLoc connector, standard cable.
  • CN: Country – specific approval.
• Probe Features:
  • Thread: M10 x 1, armored.
  • Lengths: 4 mm, 10 mm, 1.0 m.
  • Connector: Mini ClickLoc, low – loss cable.
  • Approval: Meets local rules.
• Electrical Specs:
  • Input: Takes 3300 – series 5 mm/8 mm probe & cable. High input impedance.
  • Power: – 17.5 Vdc – 26 Vdc (max 12 mA), – 23 Vdc – 26 Vdc with barriers. 10 mA at – 24 Vdc.
  • Sensitivity: < 1.8 mV change per volt input.
  • Output Resistance: 50 Ω.
• Mechanical Specs:
  • Tip Material: PPS, resists chemicals, 200°C max.
  • Case Material: AISI 303/304 SST, resists corrosion.
  • DC Resistance: 7.62 ± 0.45 Ω (1.0 m).
  • Pressure: Sealed with Viton O – ring, 10 bar max.
• Performance:
  • Temperature: Works from – 40°C to 85°C, ± 0.5% error.
  • Altitude: Up to 3000 m, 0.1% drift per 1000 m.

Contact Information

Contact us: [email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
