Bently Nevada | Proximity Probes | 330104-06-14-10-02-CN

Overview

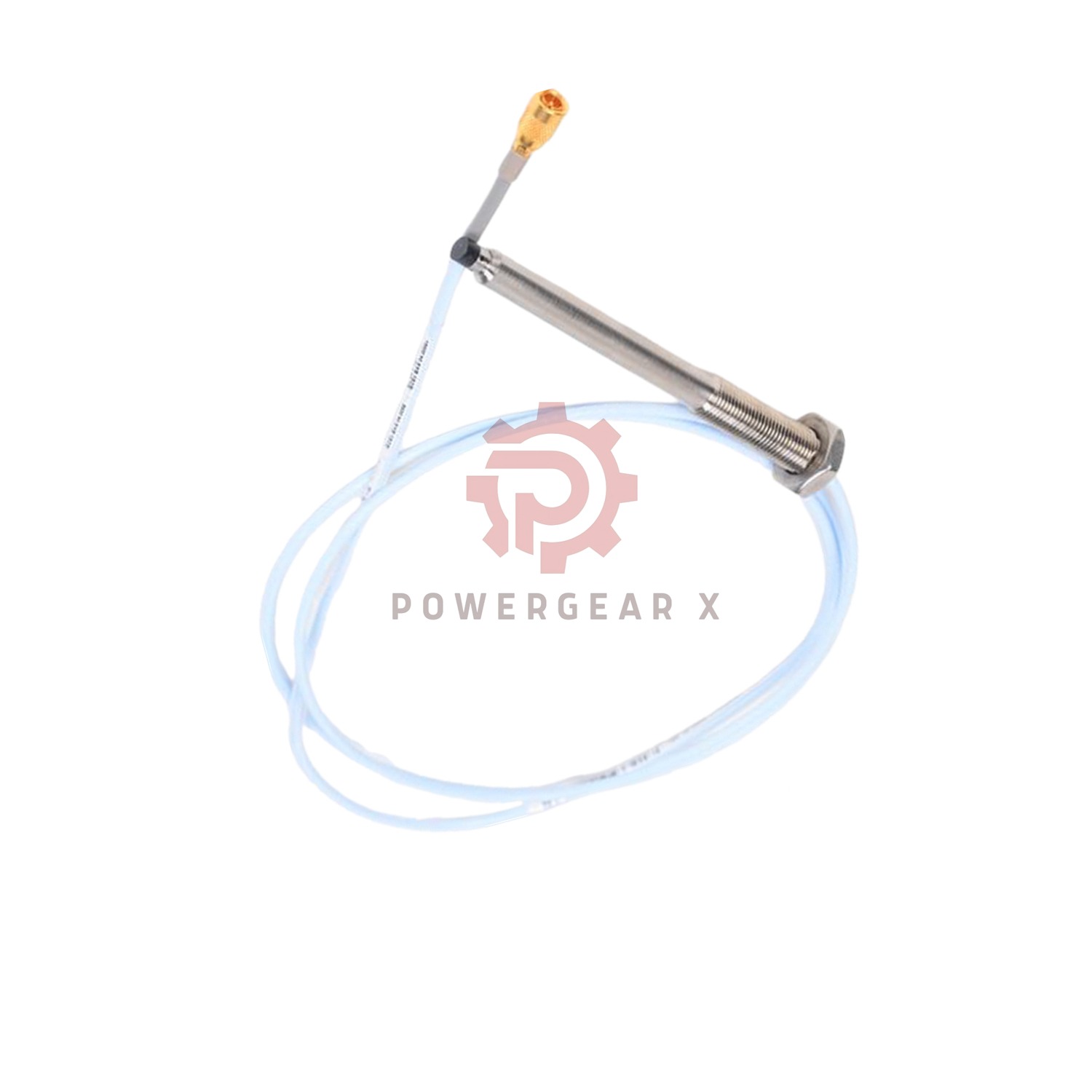

This is a 330104-06-14-10-02-CN 3300XL 8mm Proximity Probe from Bently Nevada, a well – established brand in the industrial sensor field. Manufactured in the U.S.A, it is designed for precise measurements in various industrial applications. With unique connector and cable features, it can seal differential pressure to ensure stable performance.

Technical Specification

• Brand: Bently Nevada
• Product No.: 330104-06-14-10-02-CN
• Product Type: 3300XL 8mm Proximity Probes

Probe Physical Features

• Thread: M10 x 1 thread with armor
• Unthreaded Length: 06mm
• Connector: Miniature coaxial ClickLoc connector
  • Case Length: The “14” in the product number indicates an overall case length of 14mm
  • Cable: FluidLoc cable
• Total Length: 1.0 meter (3.3 feet)
• Cable – Type: Miniature coaxial ClickLoc connector with standard cable

Approval and Resistance

• Agency Approval: Country Specific Approval (CN)
• Nominal Probe DC Resistance: For a 1.0 – meter probe, it is 7.59 ± 0.50 Ω

Material and Pressure

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Probe Pressure: Sealed by a Viton® O – ring

Electrical Specifications

• Proximitor Sensor Input: Accepts one non – contacting 3300 – series 5mm or 3300XL 8mm Proximity Probe and Extension Cable
• Power Supply:
  • Requires – 17.5Vdc to – 26Vdc for non – incendive circuit (max 12mA)
  • – 23Vdc to – 26Vdc with barriers
  • Output voltage change is less than 2mV per volt change in input voltage
  • Output resistance: 50 Ω

Contact Information

For inquiries, please email: [email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
