Bently Nevada Proximity Transducer | 330880-16-00-039-03-02

Overview

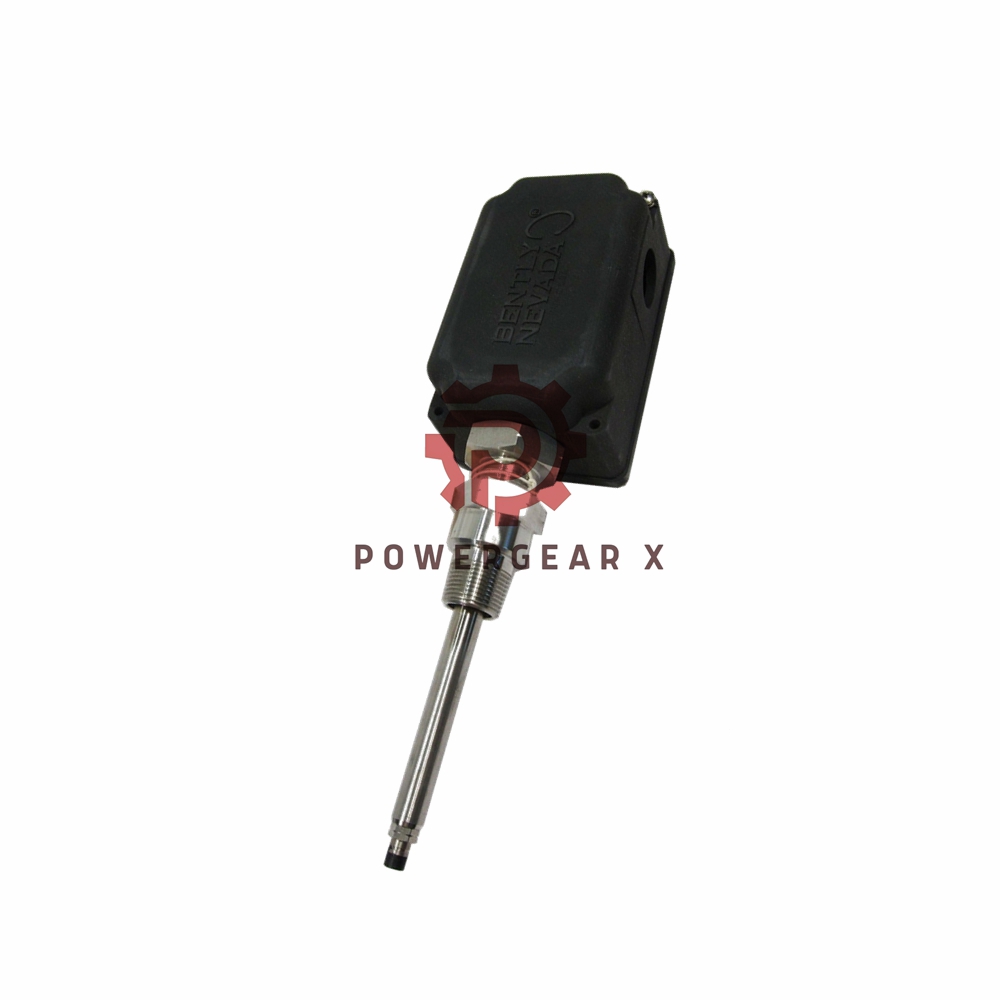

The Bently Nevada PROXPAC XL Proximity Transducer 330880-16-00-039-03-02 is a high-performance proximity monitoring solution. Designed with robust materials and advanced technology, it ensures precise vibration and displacement measurements, making it ideal for critical machinery monitoring in industries like oil & gas, power generation, and petrochemical applications.

Features

• 🌟 Advanced Measurement Accuracy: Achieves less than ±0.025mm deviation with a standard 1-meter system.
• 🔧 Wide Frequency Response: Operates effectively from 0 to 10 kHz.
• 🌐 Durable Build: IP66-rated housing with UV-resistant, glass-reinforced thermoplastic.
• 📏 Versatile Mounting Options: Includes fittings and adapters for flexible installation.
• 💡 Energy Efficiency: Requires a power supply range of -17.5 Vdc to -26 Vdc.
• 🔗 Reliable Connections: Features gold-plated brass ClickLoc connectors for secure integration.

Technical Specifications

• Brand: Bently Nevada
• Model: 330880-16-00-039-03-02
• Probe: 3300 XL 8 mm with 1-meter cable length.
• Power Supply: -17.5 Vdc to -26 Vdc, 12 mA max consumption.
• Operating Temperature: 0 °C to +45 °C (+32 °F to +113 °F).
• Minimum Target Size: 15.2 mm diameter (flat target).
• Material Highlights:
  • Probe Tip: Polyphenylene Sulfide (PPS).
  • Probe Case: AISI 304 stainless steel.
  • Housing: Glass-reinforced polyphenylene sulfide (PPS).

Frequently Asked Questions (FAQ)

Q: What is the IP rating of the housing?
A: The PROXPAC XL housing is IP66-rated for excellent dust and water resistance.

Q: What is the minimum shaft diameter required?
A: The recommended minimum shaft diameter is 76.2 mm (3.0 inches).

Q: Can this transducer handle high vibrations?
A: Yes, it features extra-soft cellular silicone for vibration isolation.

Check official datasheet for more detailed information: PROXPAC XL Proximity Transducer Assembly Datasheet
