🚀 Core Features

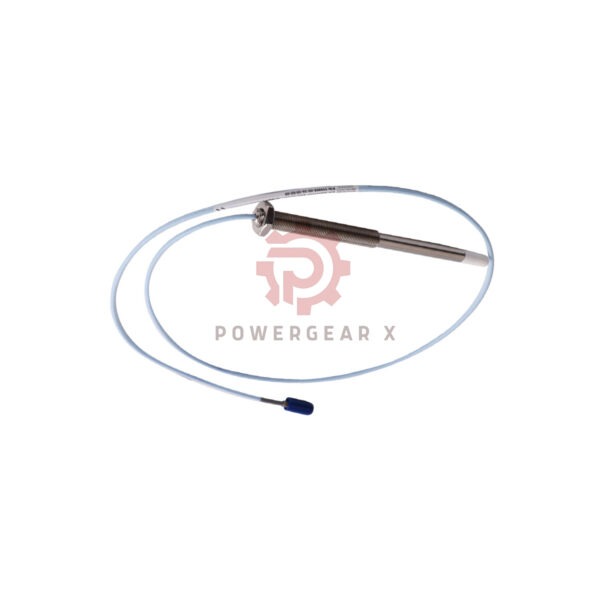

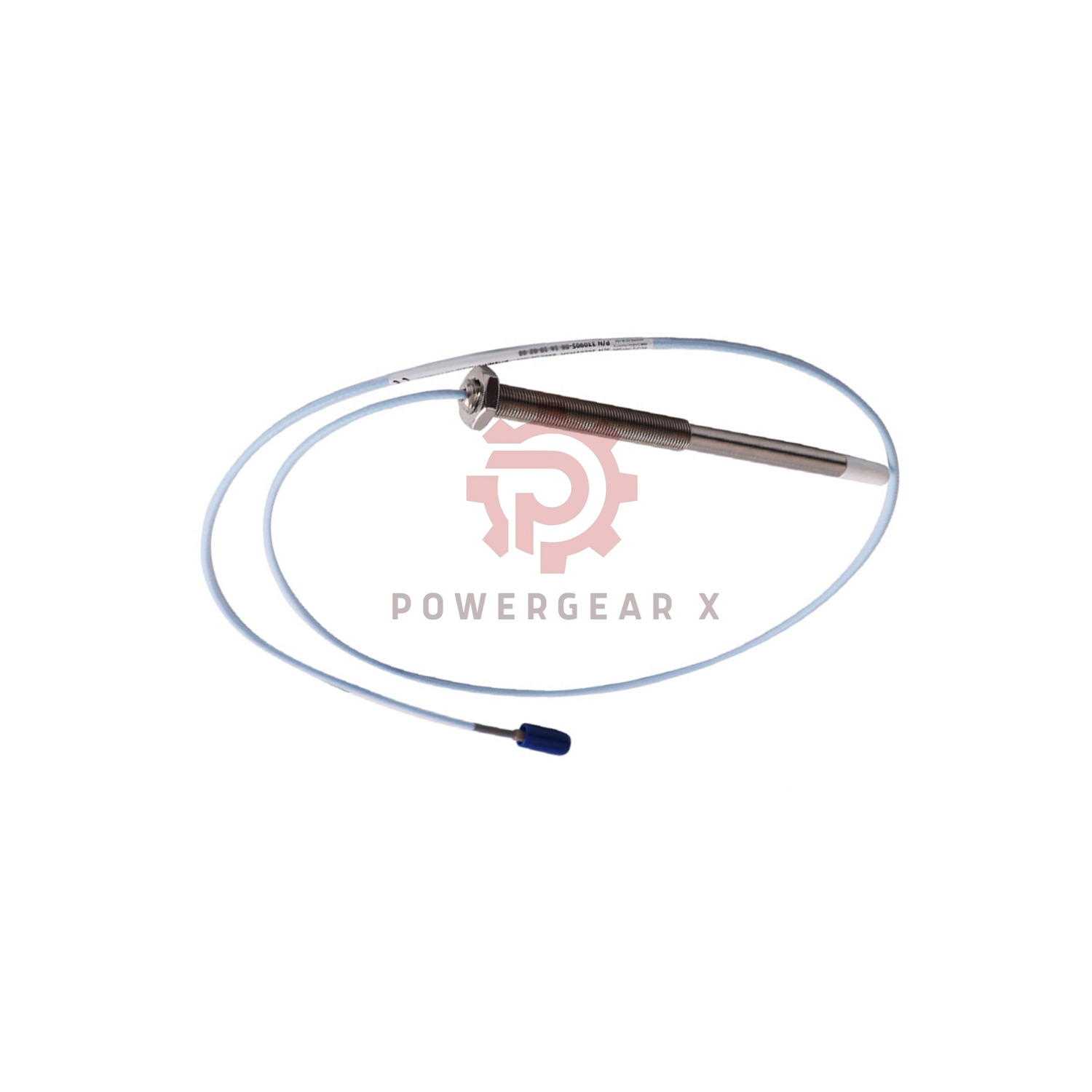

Bently Nevada’s 330104-00-02-20-01-00 8mm armored probe features 2.0m IP67 cable and M10x1 threading. With 7.88Ω±0.5 resistance, it operates at -17.5Vdc to -26Vdc in standard industrial environments.
🔍 Model Decoder
- ▸ 330104: 8mm probe base
- ▸ 00: 0mm unthreaded section
- ▸ 02: 20mm case length
- ▸ 20: 2.0m (6.6ft) cable
- ▸ 01: Protected ClickLoc® connector
- ▸ 00: No agency certification
⚡ Performance Data
| Voltage Range | -17.5Vdc to -26Vdc |
| Current Draw | 12mA max @ barriers |
| Thread Spec | M10x1 (8mm depth) |
⚠ Critical Installation Parameters
- ▶ Target: AISI 4140 steel
- ▶ Air Gap: 1.27mm±0.05mm
- ▶ Torque: 8.5-10.5 N·m
- ▶ Altitude: ≤2000m
📩 Full specs for 330104-00-02-20-01-00
Contact [email protected]
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
