Proximity Probes 3300 XL 8 mm Bently Nevada | 330104-00-02-20-01-05

🚀 Precision Monitoring Solution

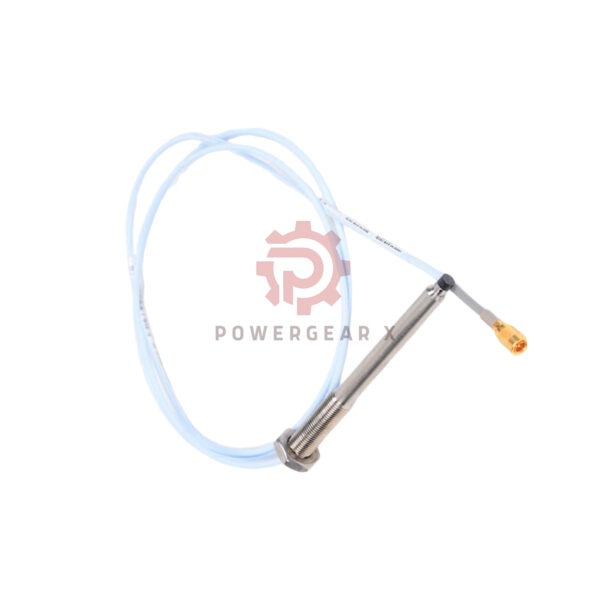

The Bently Nevada 330104-00-02-20-01-05 8mm armored probe delivers Ex-certified performance with 2.0m cable. Featuring full M10x1 threading and 20mm case, it achieves 7.88Ω±0.5 resistance for vibration measurement in explosive atmospheres.

🔑 Key Specifications

• ⚡ Voltage Range: -17.5Vdc to -26Vdc (±0.5%)
• ⚡ Barrier Compatibility: Zener/Galvanic (DWG 140979)
• ⚡ Temp Tolerance: -55°C to +232°C (T1-T5)
• ⚡ Cable Protection: IP67-rated ClickLoc®
• ⚡ Thread Depth: 8mm full engagement
• ⚡ Output Stability: <2mV/V sensitivity

📜 Explosion Safety Ratings

• ✅ ATEX: II 1G Ex ia IIC T4
• ✅ IECEx: Ex ia IIC T5 Ga
• ✅ Zone 0/20 Compliant

⚠ Critical Installation Data

• ▶ Target: AISI 4140 steel (HRC 22-32)
• ▶ Mount Torque: 8.5-10.5 N·m
• ▶ Seal Material: Viton® O-ring

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
