Product details
Overview

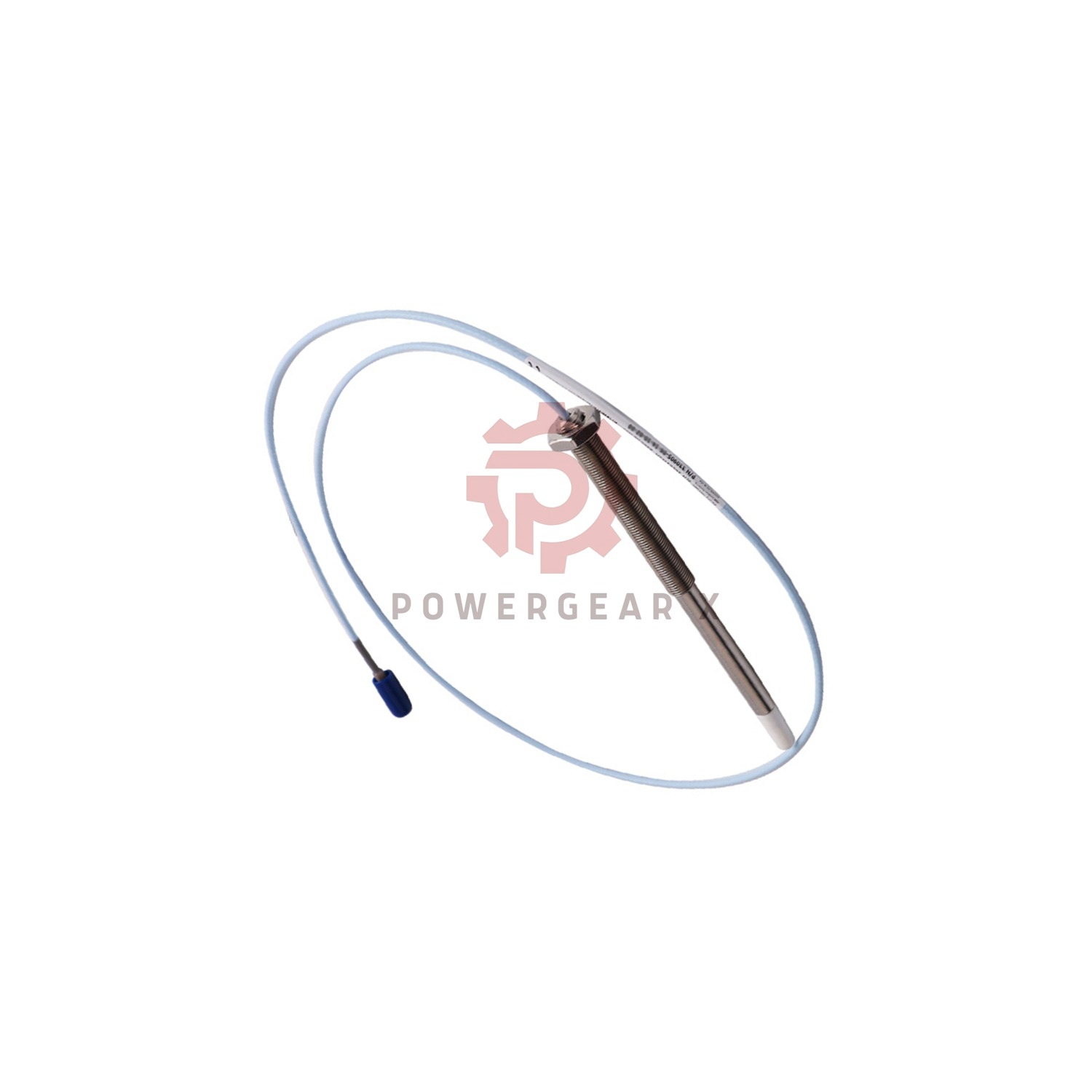

The Bently Nevada 330104-00-09-50-02-05 8 mm proximity probe ensures precision in industrial vibration monitoring. Built with a 90 mm stainless steel case and PPS sensor tip, it excels in extreme temperatures and high-pressure environments.
Model Decoder
- 330104-00-09-50-02-05:
- 00: 0 mm unthreaded section
- 09: 90 mm case length
- 50: 5.0-meter cable (16.4 ft)
- 02: Miniature ClickLoc coaxial connector
- 05: ATEX/IECEx/CSA certified
Technical Specifications
General
- Brand: Bently Nevada
- Thread: M10 x 1 (ISO metric)
- Case Material: AISI 303/304 SST
Electrical
- Input Range: -17.5 Vdc to -26 Vdc (±0.25 V)
- Output Impedance: 50Ω (±1.5Ω)
- Probe Resistance: 8.73Ω ±0.50 @ 25°C
Environmental
- Operating Temp: -55°C to +232°C (T1)
- Humidity: 0-95% non-condensing
Certifications
- ✅ AEx/Ex ia IIC T1-T5 (Zone 0)
- ✅ AEx/Ex nA IIC T1-T5 (Zone 2)
- ✅ IECEx/ATEX/CSA Compliant
Contact
📩 Reach us at [email protected] for quotes or specs.
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
