Proximity Probes Bently Nevada | 330104-00-15-10-01-00

Overview

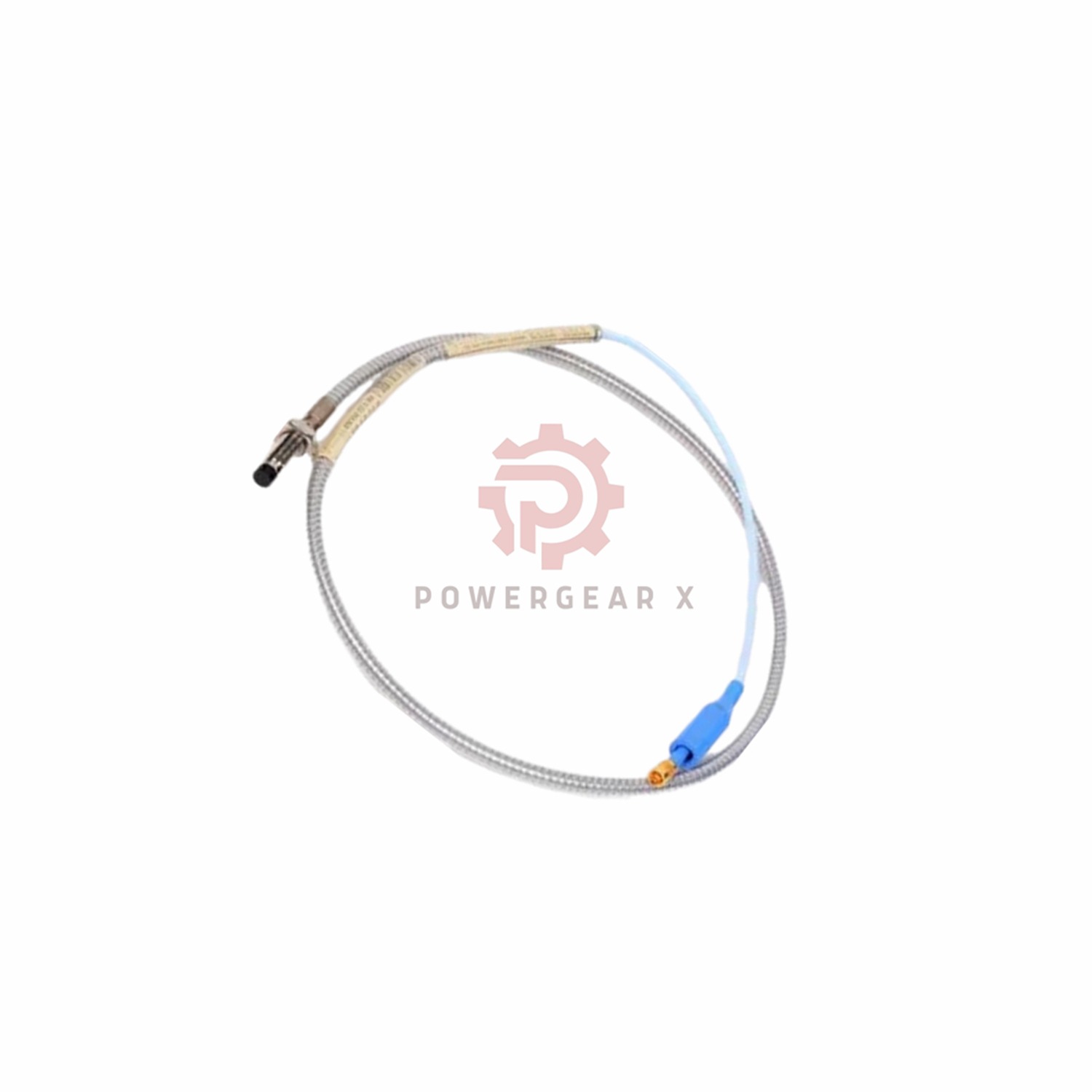

The BentlyNevada 330104-00-15-10-01-00 is a high-performance 8mm proximity probe from the 3300 XL series. Designed for precision vibration monitoring, it features durable stainless steel construction and reliable PPS tip material. This model includes a 1.0 meter cable with ClickLoc connector for secure installation.

Part Number Breakdown:330104-00-15-10-01-00

• 330104: Base model
• 00: 0mm unthreaded length
• 15: 150mm case length
• 10: 1.0 meter cable
• 01: ClickLoc connector
• 00: No agency approval
• Resistance: 7.59Ω ±0.50 (center to outer conductor)
• Operating Voltage: -17.5Vdc to -26Vdc
• Current Consumption: 12mA max
• Temperature Range: -40°C to +120°C (operating)
• Output Impedance: 50Ω
• Target Material: AISI 4140 steel (calibrated)

Construction Details

• Tip Material: PPS (Polyphenylene sulfide)
• Case Material: AISI 303/304 stainless steel
• Cable Jacket: Abrasion-resistant PVC
• Sealing: Viton® O-ring (FKM)

Contact Information

For inquiries, please email: [email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
