Product details
Professional-Grade Vibration Monitoring

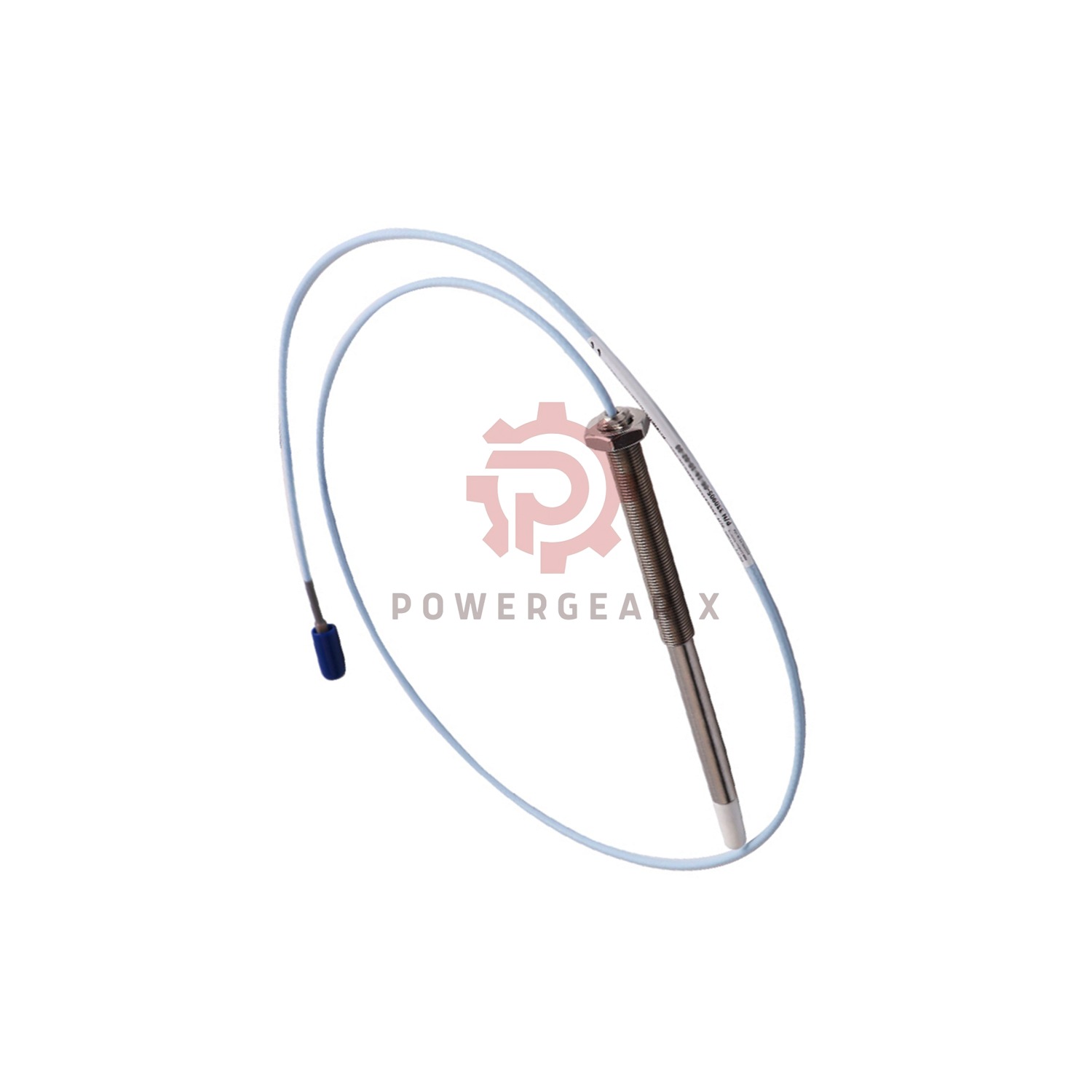

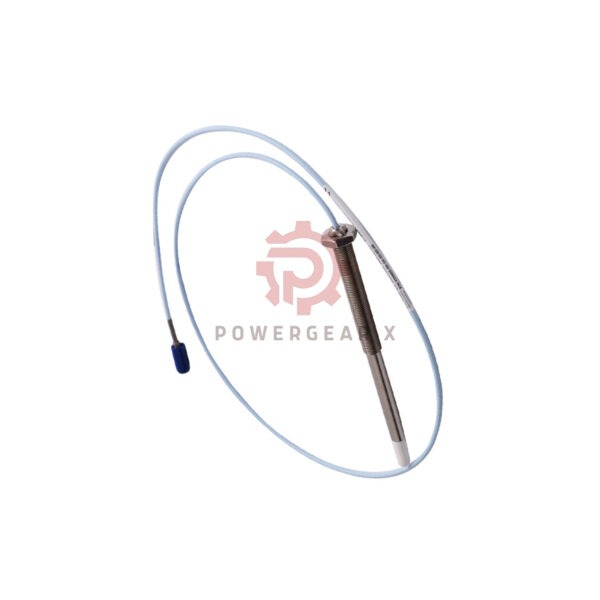

The 3300 XL 8mm proximity probe(330104-00-20-10-02-05) provides accurate shaft vibration measurements in industrial machinery. Its robust design ensures reliable performance in tough operating conditions.
Technical Details
| Electrical Resistance | 7.59Ω ±0.50 |
| Operating Voltage | -17.5Vdc to -26Vdc |
| Current Consumption | 12mA max |
| Output Resistance | 50Ω |
| Temperature Range | -40°C to +120°C |
| Pressure Rating | 20 bar (290 psi) |
Model Number Breakdown(330104-00-20-10-02-05)
- 330104: Base model
- 00: 0mm unthreaded length
- 20: 200mm case length
- 10: 1.0m cable
- 02: ClickLoc connector
- 05: CSA/ATEX/IECEx certified
Construction Features
- Probe Tip: Polyphenylene sulfide (PPS)
- Housing: AISI 303/304 stainless steel
- Sealing: Viton® O-ring
- Connector: Miniature coaxial ClickLoc
Order Information
For pricing and availability:
Email: [email protected]
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
