Reverse Mount Probes 330906-02-12-50-02-00 | Bently Nevada

Overview:

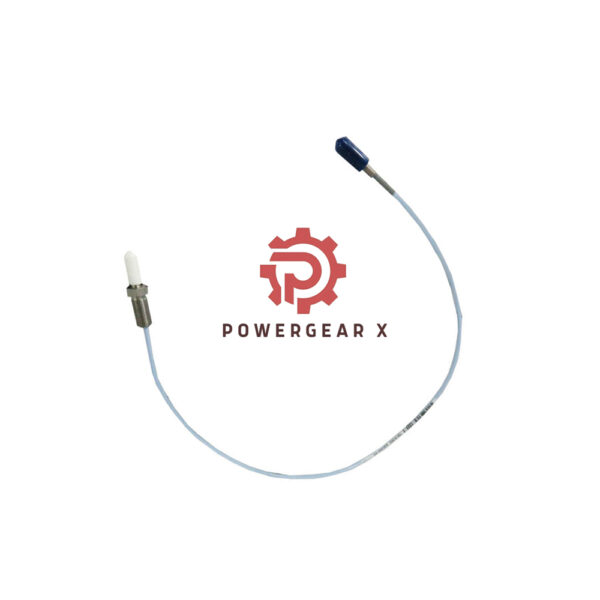

The Bently Nevada 3300 NSv Reverse Mount Probe (Part No. 330906-02-12-50-02-00) is engineered for precise vibration measurement in demanding industrial environments. With high-quality materials like AISI 304 stainless steel and Polyphenylene sulfide (PPS) for the probe tip, this product offers durability and reliable performance. Manufactured in the U.S.A., it includes ClickLoc connectors, ensuring a secure, non-loosening connection for effortless installation. This probe is particularly suitable for turbines, compressors, and pumps that require accurate vibration monitoring.

Technical Specifications:

• Brand: Bently Nevada
• Model: 3300 NSv Reverse Mount Probe
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 304 stainless steel (SST)
• Total Length Option: 5.0 meters (16.4 feet)
• Connector: Miniature coaxial ClickLoc connector
• DC Resistance: 5.3 ± 0.7 ohms at 5.0 meters
• Tensile Strength: 220 N (50 lb)
• Weight: Approx. 14 to 150 g (0.5 to 5.3 oz)
• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Storage Temperature: -52°C to +177°C (-62°F to +351°F)
• Cable Specifications: 75 ? coaxial, FEP insulated probe cable (lengths: 0.5, 1, 5, or 7 meters)

Ordering Information:

• Model Number: 330906-02-12-50-02-00
  • 330906-02-12: Represents 3/8-24 UNF threads
  • 50: Denotes the 5.0-meter cable length
  • 02: Shows that Miniature coaxial ClickLoc connector, standard cable
  • 00: Shows that Agency approval is not required
• Length Options: 0.5 meters, 1 meter, 5 meters, or 7 meters
• Thread Types Available: 3/8-24 UNF, M10X1, 1/4-28

For more detailed information: 3300 XL NSv Proximity Transducer System Datasheet
