11 mm Extension Cable | Bently Nevada 330730-080-10-00

Overview

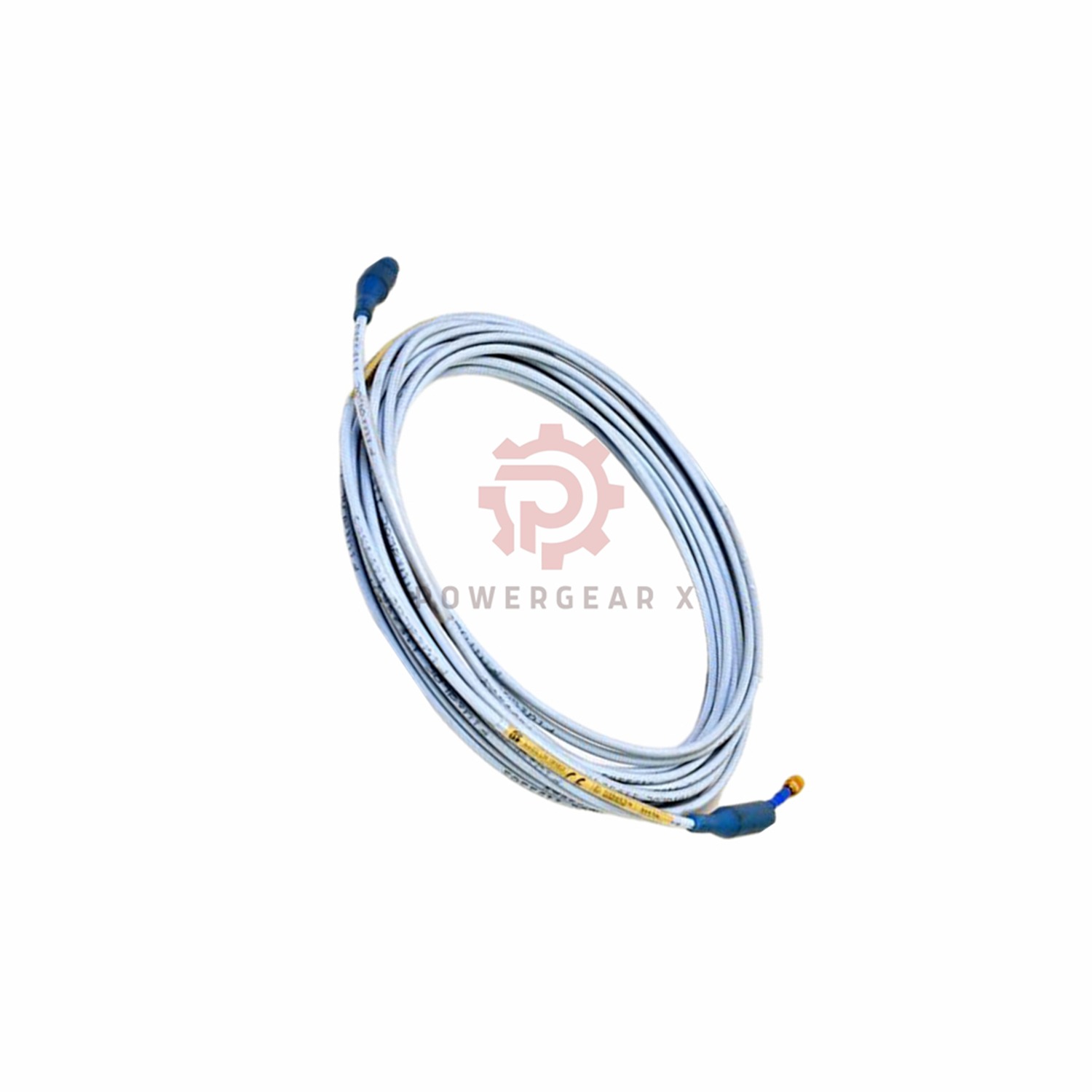

The Bently Nevada 3300 XL 11 mm Extension Cable (Product No. 330730-080-10-00) is designed for use with 3300 XL proximity probes, offering flexibility and durability for various industrial applications. Made in the USA, this extension cable ensures reliable performance in challenging environments. It features a FluidLoc cable option that prevents oil and other liquids from leaking out, making it an ideal choice for machines exposed to fluid environments. Additionally, the extension cable provides increased environmental protection with optional connector protectors.

Technical Specifications

• Manufacturer: Bently Nevada
• Product Model: 3300 XL 11 mm Extension Cable
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Temperature Range: Operating and storage: -52°C to +177°C (-62°F to +351°F)
• Material: 75 Ω triaxial FEP-insulated, gold-plated brass connectors
• Connector Protector: Silicone tape (alternative to protectors)
• Armor: Optional AISI 302 SST with FEP outer jacket
• Extension Cable Resistance:
  • From center conductor to center conductor: 2.0 ± 0.5 ohms
  • From coaxial conductor to coaxial conductor: 0.6 ± 0.2 ohms
• Tensile Strength: 330 N (75 pounds) for the probe case to probe lead
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG)

Ordering Information

• Product Number: 330730-080-10-00
  • 080: Cable length option (8 meters)
  • 10: FluidLoc cable option
  • 00: Agency approval (not required)

FAQ

1. What is the maximum length of extension cable supported?
   The maximum supported length is 305 meters (1,000 feet), with a recommended gap setting of 2.5 mm (100 mils).
2. Can I use this extension cable with all 3300 XL probes?
   Yes, this extension cable is compatible with all 3300 XL probes.
3. Do I need to use connector protectors in all environments?
   While connector protectors are recommended for increased protection, silicone tape can be used as an alternative, except in environments exposed to turbine oil.

For more detailed information: 3300 XL 11 mm Proximity Transducer System Datasheet
