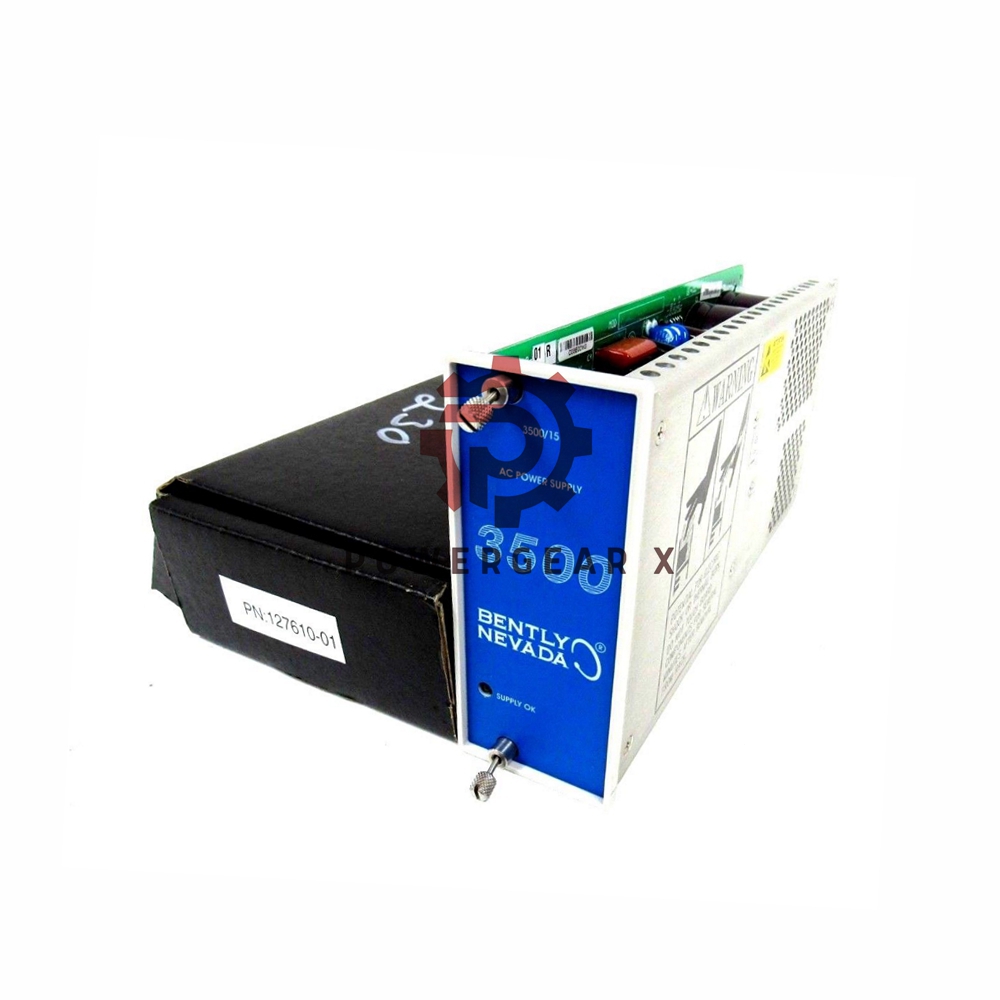

127610-01 | Bently Nevada | 3500/15 AC Power Supply Module

Overview

The Bently Nevada 3500/15 127610-01 AC Power Supply Module has been discontinued, with the new replacement being the 106M1079-01 Universal AC Power Supply Module. The new unit is designed to accommodate a wide range of input voltages, providing versatility for various applications.

Key Specifications

• Brand: Bently Nevada
• Model: 3500/15 127610-01

Input Specifications

• Input Voltage:
  • Nominal: 110 to 220 Vac
  • rms: 85 to 264 Vac
  • Peak: 120 to 373 Vac
• Input Frequency: 47 to 63 Hz

Output Indicators

• LED Indicators:
  • Supply OK LED: Signals when the power supply is functioning properly.

Physical Dimensions

• Size:
  • Height: 120.7 mm (4.75 in)
  • Width: 50.8 mm (2.0 in)
  • Depth: 251.5 mm (9.9 in)
• Weight: 1.39 kg (3.06 lb)

Rack Space Requirements

• Requires two half-height slots located on the left side of the rack.
• Designed to accommodate one power supply in each slot for redundancy.

Environmental Limits

• Operating Temperature:
  • -30 °C to +65 °C (-22 °F to +150 °F)
• Storage Temperature:
  • -40 °C to +85 °C (-40 °F to +185 °F)
• Humidity: 95% non-condensing

FAQ

1. What is the replacement for the 3500/15 Module?
   • The replacement is the 106M1079-01 Universal AC Power Supply Module.
2. What input voltage range does the new module support?
   • It supports a nominal input voltage of 110 to 220 Vac, with a range of 85 to 264 Vac rms.
3. How does the supply indicator work?
   • The Supply OK LED will illuminate to indicate proper functioning of the power supply.

Check official datasheet for more detailed information:3500-15 AC and DC Power Supplies Datasheet
