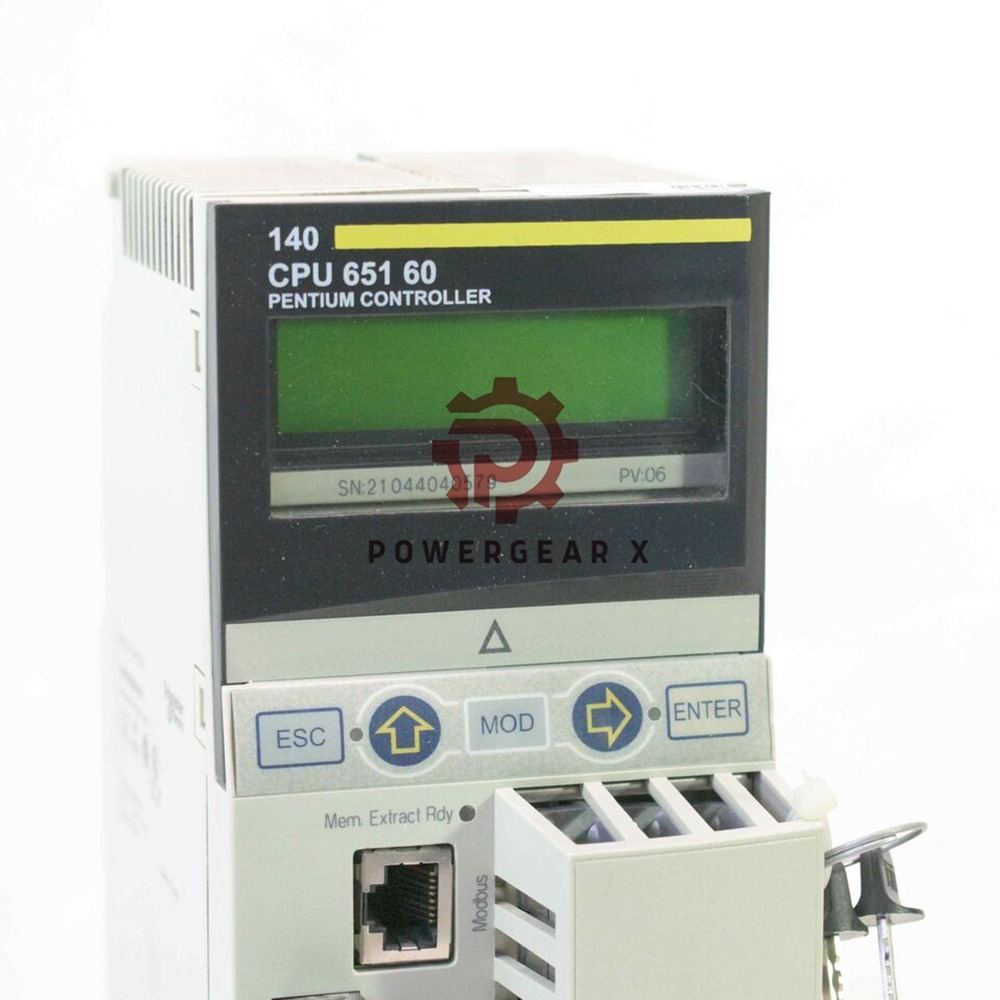

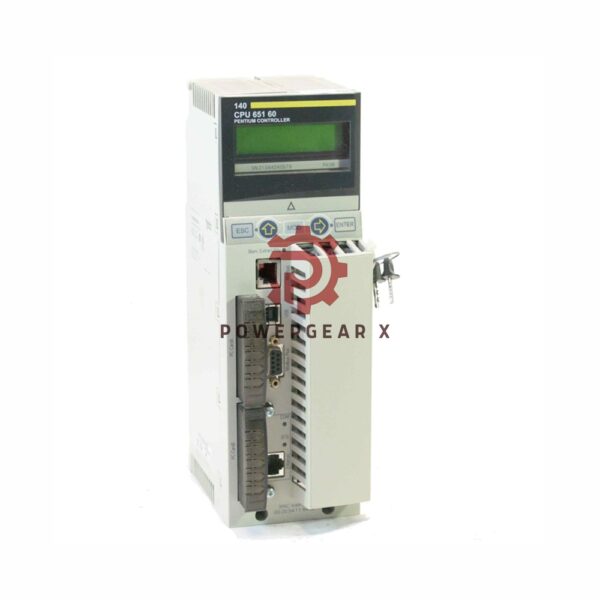

140CPU65160 Schneider Modicon Unity Processor

Overview:

The Schneider Modicon Quantum 140CPU65160 Unity Processor is a high-performance processor designed for the Modicon Quantum automation platform. It supports versatile communication protocols, including Modbus Plus, Ethernet TCP/IP, and Profibus DP, offering enhanced flexibility and reliability for industrial control systems. With a clock frequency of 266 MHz and 1024 kB of internal RAM, the 140CPU65160 is designed to handle large, complex automation tasks across various industries.

Key Features:

• Platform: Modicon Quantum
• Processor: Unity Processor
• Clock Frequency: 266 MHz
• RAM: 1024 kB Internal, Expandable to 7168 kB via PCMCIA card
• Communication Ports:
  • 1 x Ethernet TCP/IP
  • 1 x Modbus Plus
  • 1 x Modbus
  • 1 x USB
  • 6 x Ethernet TCP/IP (local)
  • 6 x Modbus Plus (local)
  • 6 x Profibus DP (local)
  • 1 x Modbus RS232/485
• I/O Capacity:
  • 31 remote I/O stations (Ethernet)
  • 63 distributed I/O stations (Modbus Plus)
  • 31744 discrete inputs/outputs (remote)
  • 1984 analogue I/O (S908 remote)
  • Unlimited local I/O (max 26 slots)
• Expandable Memory: 8 MB file storage with PCMCIA card
• Task Structure: Supports 128 I/O interrupt tasks, 32 timer interrupt tasks, 4 auxiliary tasks
• Communication Services: Integrated Ethernet router, AS-Interface, Modbus, Profibus DP, Sy/Max

Technical Specifications:

• Brand: Schneider Electric
• Model: 140CPU65160
• Suffix Meaning: “Unity” indicates compatibility with Schneider’s advanced automation and control platform, designed for high-speed operations and scalability.
• Environmental Certifications: UL, CSA, CE, GOST, HazLoc
• Standards: Marine-certified for hazardous locations
• Operating Voltage: Bus current requirement of 2760 mA
• Switch Function: Key switch memory port (on/off)
• Electrical Connections:
  • 1 x SUB-D 9 connector (Modbus Plus)
  • 2 x RJ45 connectors (Ethernet and Modbus)

For more detailed information, please check official datasheet: Unity processor Modicon Quantum
