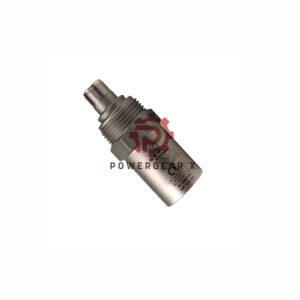

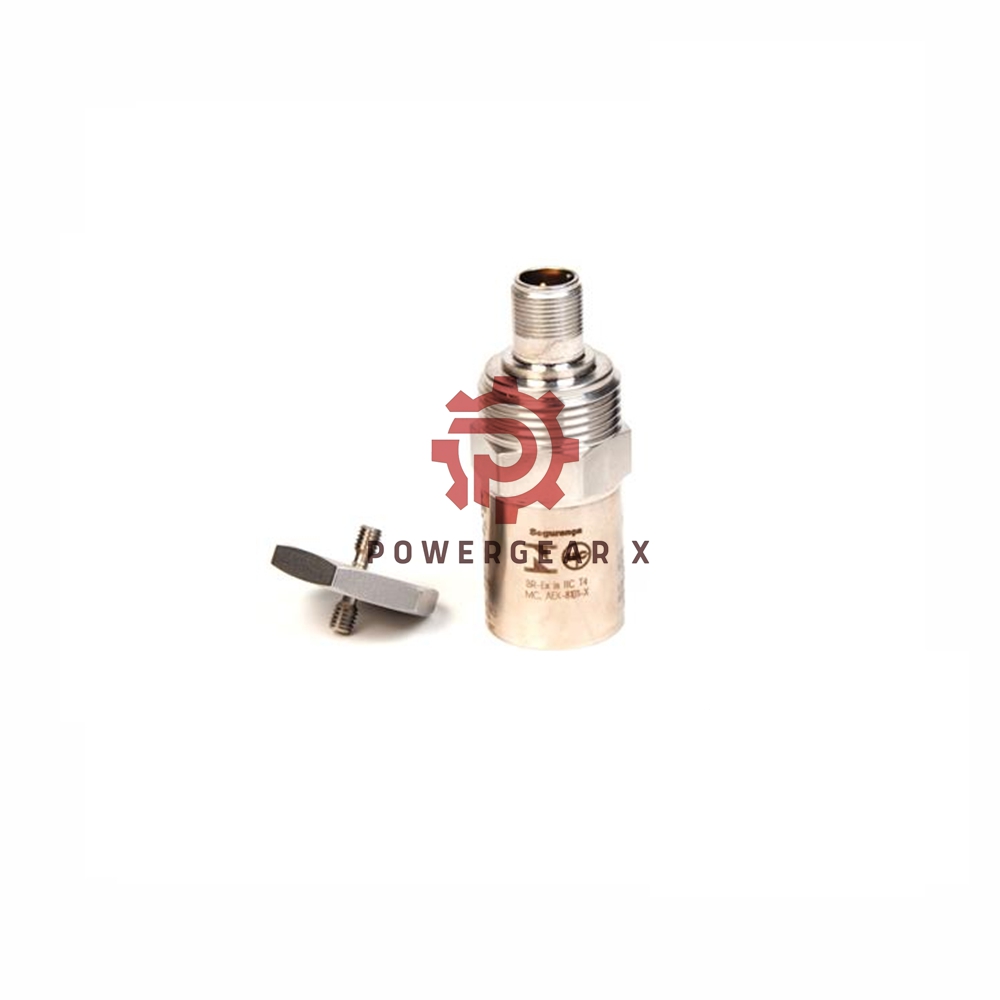

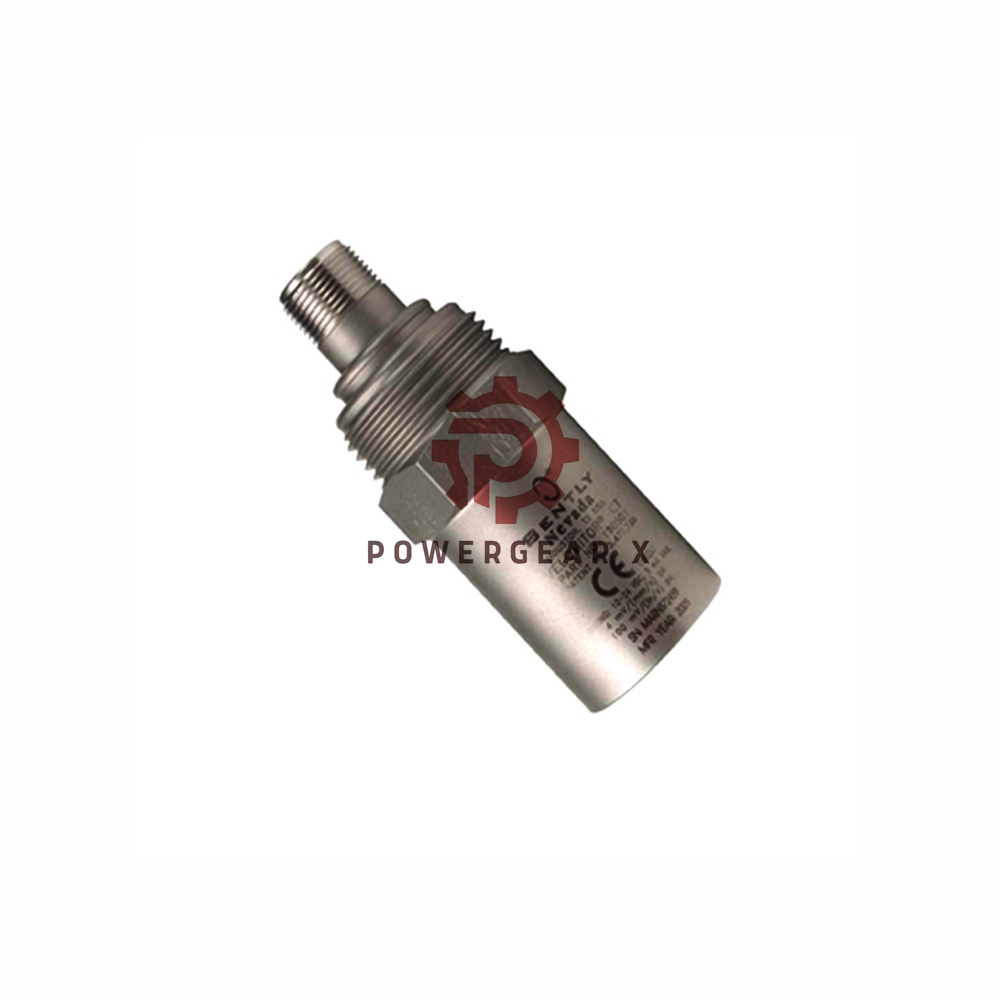

190501-01-00-00 | Velomitor CT Velocity Transducer

Overview

The Bently Nevada Velomitor CT Velocity Transducer (Product No. 190501-01-00-00) is a high-precision instrument for accurate velocity measurements in various industrial applications. Made in the U.S.A, this device is housed in a rugged 316L stainless steel case for durability in harsh environments. It offers a wide frequency response range and high sensitivity, ensuring reliable performance in vibration monitoring systems.

Key Features:

• Weight: 297 g (10.5 oz.)
• Mounting Surface Diameter: 33 mm (1.3 in)
• Height: 82 mm (3.2 in)
• Material: 316L stainless steel housing, MIL-C5015 stainless steel connector
• Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%
• Temperature Sensitivity: -8% to +5% over the operating temperature range
• Mounting Torque: 4.5 N-m ± 0.6 N-m (40 in–lbf ± 5 in-lbf)
• Polarity: Pin A positive with respect to Pin B for velocity from base to top of the transducer
• Mounting Angle: Suitable for any orientation

Technical Specifications:

• Frequency Response: 3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB, 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB
• Velocity Range: 63.5 mm/s pk (2.5 in/s pk)
• Brand: Bently Nevada
• Model: Velomitor CT
• Product Number: 190501-01-00-00
• Mounting Hardware Option: 01 = Stud 3/8-in 24 to 3/8-in 24
• Connection Option: 00 = MIL-C-5015 connection interface
• Agency Approval Option : 00 = No approvals
• Made in USA

FAQ:

1. What is the mounting torque for this transducer?
   The mounting torque is 4.5 N-m ± 0.6 N-m (40 in–lbf ± 5 in-lbf).
2. Can the Velomitor CT be mounted in any orientation?
   Yes, it can be mounted in any orientation.
3. What is the frequency range of the Velomitor CT?
   The frequency range is from 3.0 Hz to 900 Hz, with a range extension to 1.0 kHz.
4. Does it come with agency approvals?
   No, this version does not have any agency approvals.

Check official datasheet for more detailed information: 190501 Velomitor CT Transducer Datasheet
