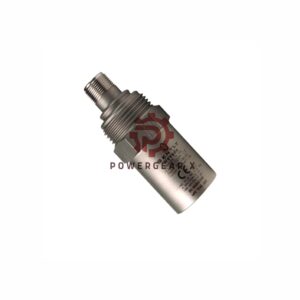

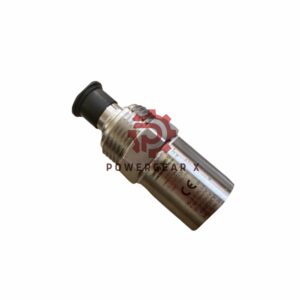

190501-12-99-00 | Velomitor CT Velocity Transducer

Overview

The Bently Nevada 190501-12-99-00 Velomitor CT Velocity Transducer is a high-precision device for accurate velocity measurement in industrial applications. With a broad frequency range and high sensitivity, it ensures reliable performance in harsh environments.

Key Features

• High Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%
• Wide Frequency Response: 3.0 Hz to 900 Hz (±1.0 dB)
• Mounting Flexibility: Suitable for any orientation, with 33 mm diameter mounting surface
• Durable Construction: 316L stainless steel housing and MIL-C5015 connector
• Temperature Stability: -8% to +5% sensitivity variation across operating temperature range

Technical Specifications

• Model: Bently Nevada Velomitor CT
• Part Number: 190501-12-99-00
• Mounting Hardware Option: 12 = Plate stud 3/8-in 24 to M8x1
• Connector: 2-pin 316L stainless steel MIL-C5015 (top)
• Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%
• Velocity Range: 63.5 mm/s pk (2.5 in/s pk)
• Frequency Response: 3.0 Hz to 900 Hz ±1.0 dB, 1.5 Hz to 1.0 kHz ±3.0 dB
• Temperature Sensitivity: -8% to +5% typical
• Amplitude Linearity: ±2% to 63.5 mm/s pk (2.5 in/s pk)
• Mounting Torque: 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf)
• Output Bias Voltage: 10.1 Vdc ± 1.0 Vdc, Pin A referenced to Pin B
• Dynamic Output Impedance: <400 Ω typical
• Broadband: 0.229 mm/s (0.009 in/s) pk

FAQ

1. What is the maximum velocity range of the Velomitor CT?
   The maximum velocity range is 63.5 mm/s peak (2.5 in/s peak).
2. Can the Velomitor CT be mounted in any orientation?
   Yes, the Velomitor CT can be mounted in any orientation without affecting performance.
3. What is the typical temperature sensitivity?
   The temperature sensitivity is typically -8% to +5% over the operating temperature range.
4. What type of mounting hardware is included?
   The product includes a mounting plate stud with dimensions of 3/8-in 24 to M8x1.

Check official datasheet for more detailed information: 190501 Velomitor CT Transducer Datasheet
