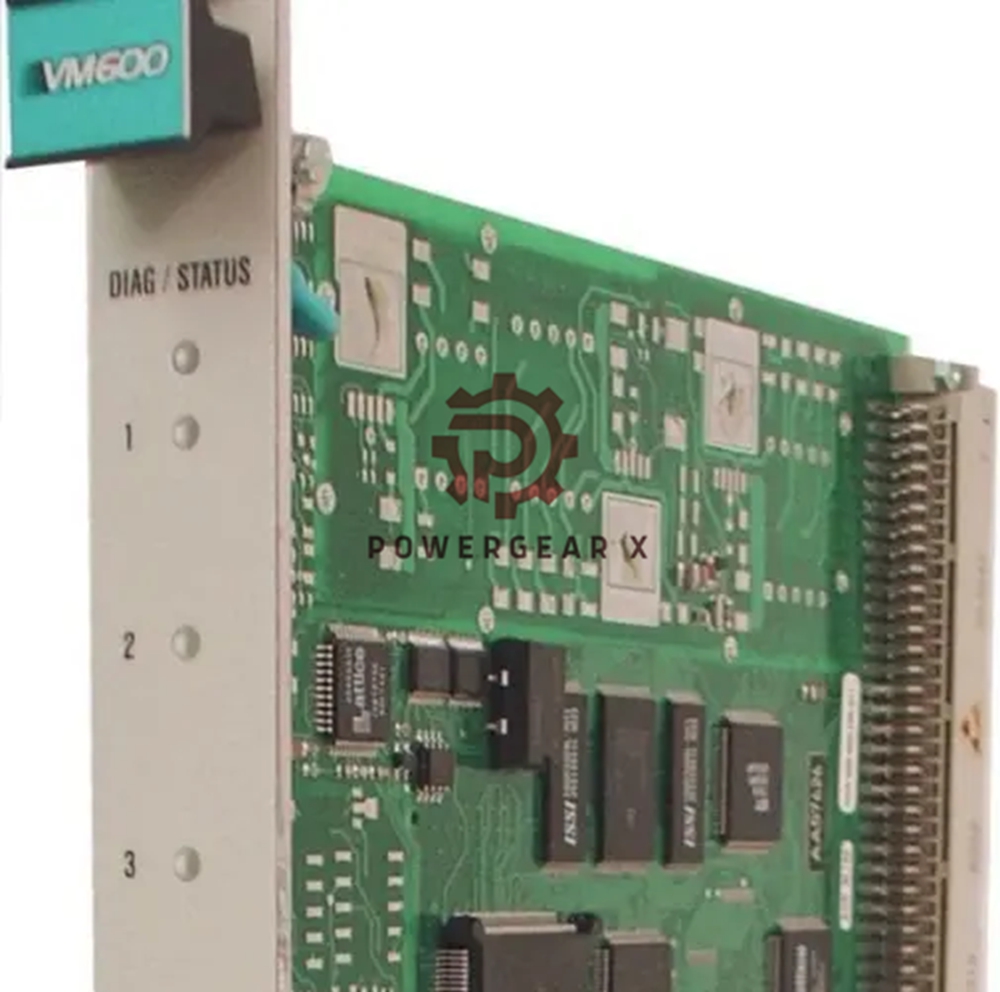

204-677-000-003 TFM677 Tracking Filter Vibro-Meter

Overview:

The 204-677-000-003 TFM677 Tracking Filter is an essential component in the Vibro-Meter machinery protection system, designed to monitor and protect rotating machinery by providing advanced vibration analysis. It works alongside the MPC4 machinery protection card, offering comprehensive dynamic signal processing and speed monitoring capabilities. This system ensures that all critical parameters such as vibration, speed, and displacement are constantly monitored, allowing for proactive maintenance and protection of machinery.

Technical Specifications:

• Brand: Vibro-Meter
• Model: 204-677-000-003 TFM677 Tracking Filter, MPC4 Machinery Protection Card
• Suffix Meaning: “003” typically denotes a specific version or configuration of the filter; refer to product documentation for detailed versioning.
• Speed Input Types: Proximity probe, magnetic pulse pickup, TTL signals, fractional tachometer ratios.
• Signal Output: Analog outputs available in voltage (0-10 V) and current (4-20 mA) formats.
• Setpoints: Programmable alert and danger levels, alarm delays, hysteresis, and latching functionality.
• Bus System: Raw bus and Open Collector (OC) bus for alarm signal routing to relays.

FAQ:

Q: What is the maximum number of dynamic inputs the MPC4 can handle?
A: The MPC4 can handle up to four dynamic signal inputs and two speed inputs simultaneously.

Q: What types of speed sensors can be used with the MPC4?
A: The MPC4 accepts signals from proximity probes, magnetic pulse pickup sensors, and TTL-based speed sensors.

Q: Can I configure the alarm setpoints on the MPC4?
A: Yes, both alert and danger setpoints are fully programmable, along with alarm time delay, hysteresis, and latching functions.

Q: What output formats are available for the processed signals?
A: Processed signals are available in both voltage (0-10 V) and current (4-20 mA) formats.
