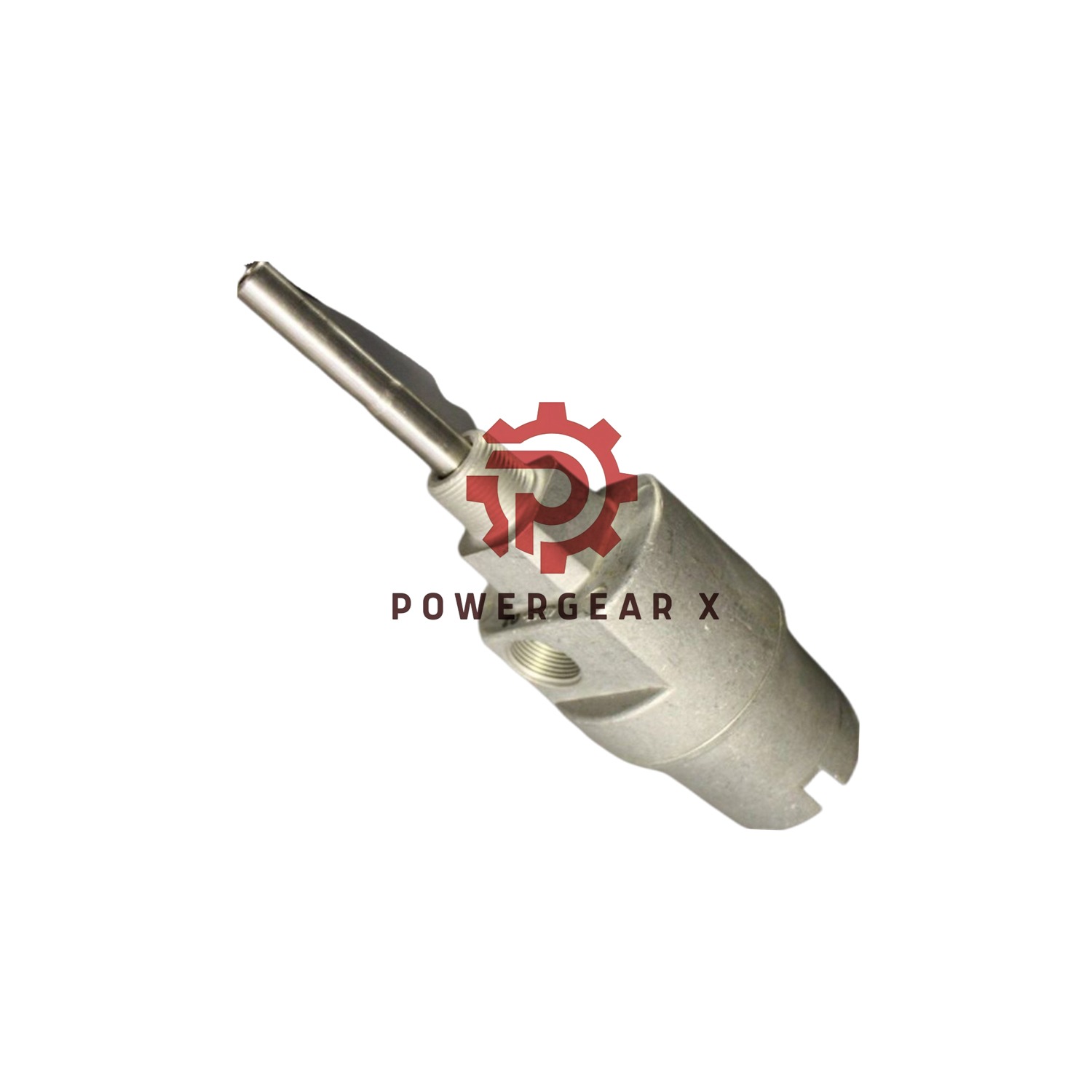

21000-28-05-00-060-04-02 Proximity Probe | Housing Assemblies

Overview:

The Bently Nevada 21000-28-05-00-060-04-02 Proximity Probe Housing Assemblies are designed for use in a variety of industrial applications, particularly where precise measurement of displacement or vibration is required. Manufactured with an aluminum body and a 304 stainless steel sleeve, these assemblies are durable and well-suited for hazardous environments. The CSA-rated explosion-proof housing makes it ideal for intrinsically safe applications, complying with the American Petroleum Institute’s API 670 Standard.

Technical Specifications:

• Brand: Bently Nevada
• Model: 21000 Proximity Probe Housing Assemblies-21000-28-05-00-060-04-02
• Material: Aluminum body, 304 stainless steel sleeve
• Weight: 1.1 kg (2.4 lb) typical, without fittings
• Hazardous Area Approvals: Selectable, depending on configuration

Ordering Information:

The model is denoted as 21000 – AA-BB-CC-DDD-EE-FF, where:

• A (Probe with Connector): 28 (3300 XL 8 mm probe, with selectable hazardous area approvals)
• B (Probe Cable Length): 05 (0.5 m, 20 in)
• C (Standoff Adapter Length): 00 (No standoff adapter)
• D (Probe Penetration): -060– (6 in penetration)
• E (Fittings Option): 04 (One 3/4-14 NPT plug)
• F (Mounting Thread Option): -02 (3/4-14 NPT, must be ordered with standoff adapter length other than -00)

Check official datasheet for more detailed information:21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
