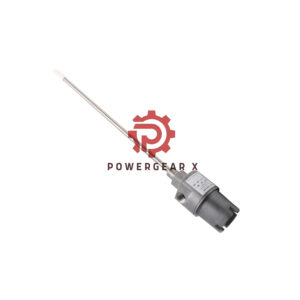

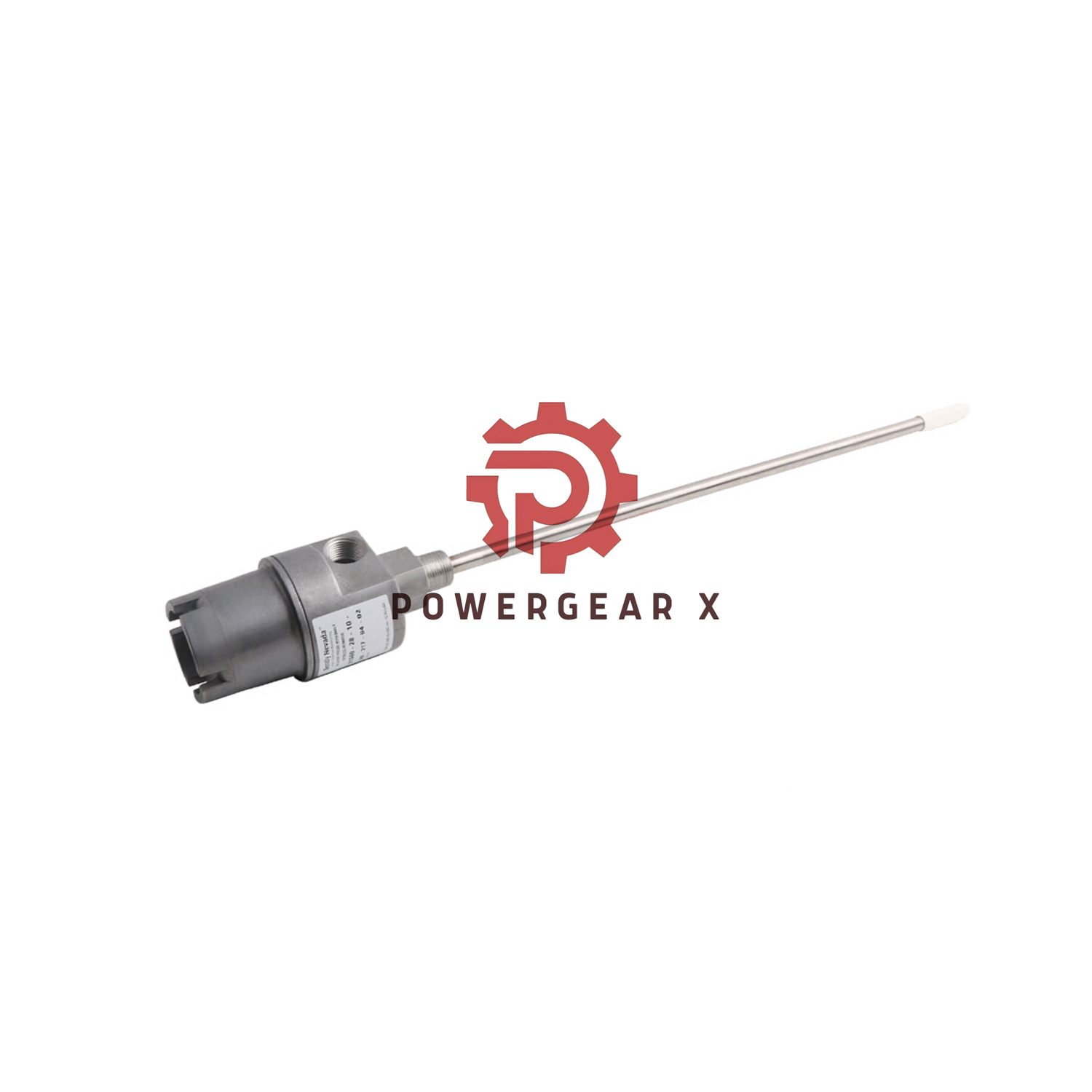

21000-28-05-20-050-03-02 | 21000 Proximity Probe Housing Assemblies

Overview:

The Bently Nevada 21000-28-05-20-050-03-02 Proximity Probe Housing Assemblies are designed to provide accurate, reliable measurements in a variety of industrial applications. These high-quality assemblies come with a range of options tailored to meet specific needs. The housing features a durable aluminum body with a 304 stainless steel sleeve, providing robust protection against harsh environments. The 21000 series also supports CSA approvals for hazardous areas, ensuring safety and compliance with industry standards, including API 670 for externally mounted proximity probe housings.

Technical Specifications:

• Brand: Bently Nevada
• Model: 21000 Proximity Probe Housing Assemblies
• Material: Aluminum body with 304 stainless steel sleeve
• Weight: 1.1 kg (2.4 lb) (without fittings)
• Cable Length: 0.5 m (20 in) standard
• Maximum Dimension (C + D): 13.5 in (34.3 cm) with visible probe P/N and S/N
• Mounting Thread Option: 3/4-14 NPT (for Standoff Adapter Length Option -02)

21000-28-05-20-050-03-02 Suffix Codes Explanation:

• A: Probe with Connector (28 3300 XL 8 mm probe with selectable hazardous area approvals)
• B: Probe Cable Length (05 0.5 m / 20 in)
• C: Standoff Adapter Length (20 = 2 in)
• D: Probe Penetration Length (-050 = 5 in)
• E: Fittings Option (03: includes NPT plugs, reducers, and cable seal grips)
• F: Mounting Thread Option (-02: 3/4-14 NPT)

Check official datasheet for more detailed information:21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
