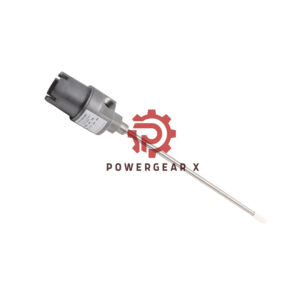

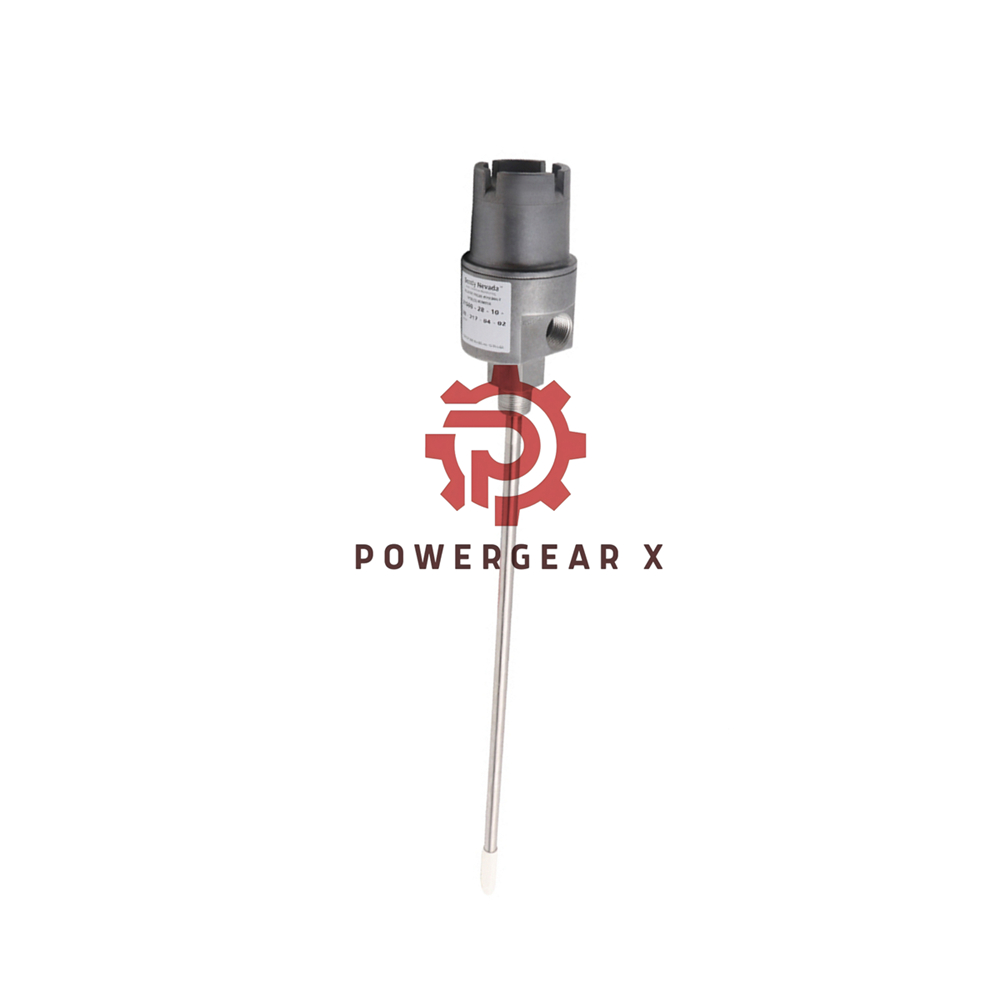

21000-28-10-00-217-04-02 GE | Bently Nevada

Overview:

The Bently Nevada 21000-28-10-00-217-04-02 Proximity Probe Housing Assemblies are designed for high-performance monitoring in industrial applications. These assemblies are crucial for measuring the proximity of rotating machinery components in hazardous environments. Constructed from a durable aluminum body and 304 stainless steel sleeve, the housing ensures reliability and longevity. It is fully compliant with API 670 standards and features CSA-certified explosion-proof ratings for use in hazardous areas.

This product is widely used in industries requiring precise machine condition monitoring, such as power generation, oil and gas, and chemical processing.

Technical Specifications:

• Brand: Bently Nevada
• Model: 21000 Proximity Probe Housing Assemblies
• Material: Aluminum body with a 304 stainless steel sleeve
• Dimensions:
  • Maximum Cable Length: 1.0 m (39 inches)
  • Probe Penetration: 21.7 inches
  • Weight: 1.1 kg (2.4 lb) typical, without fittings
  • Thread: 3/4-14 NPT (Standard)
• CSA Certification: Type 4 enclosure, explosion-proof when ordered with specific options
• Fittings: 3/4-14 NPT plug fitting (standard), explosion-proof fittings available
• Approvals: Multiple, including Canadian Standards Association (CSA) certifications

Ordering Information:

When ordering 21000-28-10-00-217-04-02, the following options are customizable:

• Probe Option: -28 (3300 XL 8 mm probe with multiple approvals)
• Probe Cable Length Option: -10 (1.0 m or 39 in)
• Standoff Adapter: -00 (No standoff adapter)
• Probe Penetration: -217 (21.7 in)
• Fitting Option: -04 (One 3/4-14 NPT plug only)
• Mounting Thread Option: -02 (3/4-14 NPT, required if no standoff adapter is ordered)

FAQ:

1. What is the maximum length for the probe cable?
   • The maximum cable length is 1.0 m (39 in).
2. Can I use the 21000 housing with a standoff adapter?
   • Yes, optional standoff adapters are available for custom configurations.

Check official datasheet for more detailed information:21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
