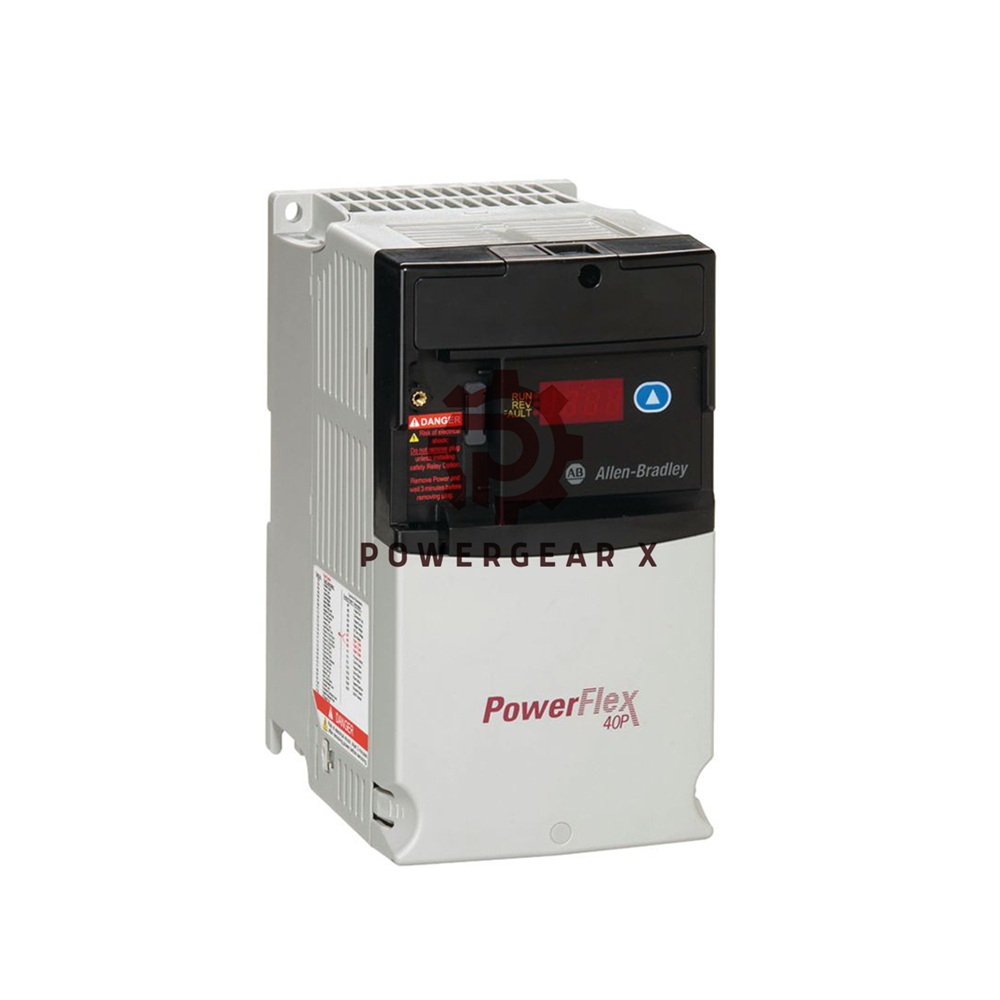

22D-D010H204 Allen-Bradley | AC Drive PowerFlex 40P

Overview

The Allen-Bradley 22D-D010H204 PowerFlex 40P AC Drive is designed for efficient speed control in industrial applications. As part of the PowerFlex 40P series, this drive operates with a 480V AC, three-phase input, delivering 5 horsepower (HP) of output power. With a compact and cost-effective design, the 22D-D010H204 is ideal for managing systems such as smart conveyors, palletizers, and packaging machines.

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Part Number: 22D-D010H204
• Product Line: PowerFlex 40P
• Amperage: 10.5 A
• Phase: Three-Phase
• Enclosure: Open NEMA Type Plate Mount (IP20)
• Input Voltage: 480 Volts AC
• Horsepower: 5 HP (4 kW)
• Maximum Output Power: 5 HP
• Filter: No CE Compliant Filter
• Operating Temperature: Up to 40°C (104°F)
• Humidity: Up to 95% non-condensing
• Frame Size: B
• Mounting Options: DIN Rail, Panel Mount
• Environmental Rating: IP20 (can be upgraded to IP30 with conduit box)
• Compatibility: Voltage classes: 480, 600, and 240 Volts

FAQ

1. What is the maximum output horsepower of this drive?
   The 22D-D010H204 offers a maximum output of 5 HP (4 kW).
2. What are the mounting options for this drive?
   The drive supports DIN rail and panel mounting for flexible installation.
3. Is this drive CE compliant?
   No, the 22D-D010H204 does not include a CE-compliant filter.
4. What type of applications is the 22D-D010H204 best suited for?
   It is ideal for use in smart conveyors, palletizers, and various textile machines.

Check official datasheet for more detailed information: PowerFlex 40P
