Overview

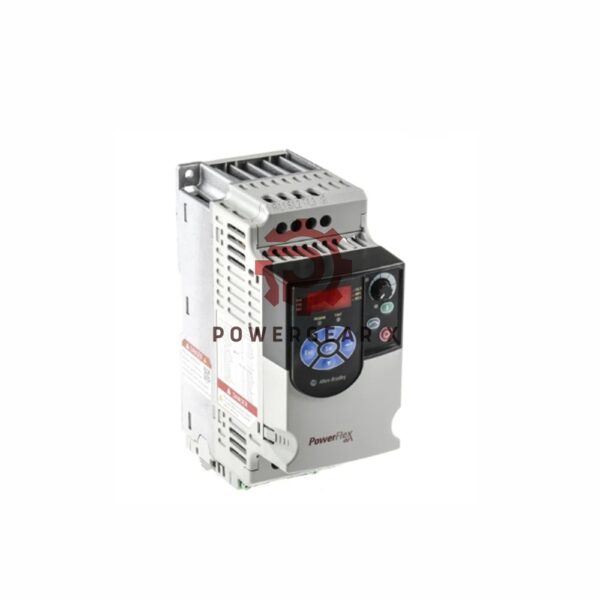

The Allen-Bradley PowerFlex 4M 22F-A4P2N113 is a compact, efficient variable frequency drive (VFD) designed for precise motor control in industrial and commercial applications. Offering reliable performance, flexible connectivity, and easy installation, it supports a wide range of motor-driven systems.
Features
- Motor Control: Delivers precise speed control for 0.75 kW (1 HP) motors with an output of 4.2 A.
- Built-in RS485 Communication: Seamlessly integrates with automation systems.
- Flexible Input: Operates with 1-phase, 180-265 VAC input voltage.
- IP20 Enclosure: Ensures safety and is suitable for panel-mounted installations.
- Optional Protocols: Supports BacNet, LonWorks, ProfiBus, Ethernet, DeviceNet, and ControlNet.
- Compact Design: Space-saving solution with CE-compliant filtering.
Technical Specifications
- Brand: Allen-Bradley
- Series: PowerFlex 4M
- Model: 22F-A4P2N113
- Input Power: 180-265 VAC, single-phase
- Input Current: 8.2 A
- Output Power: 0.75 kW (1 HP)
- Output Voltage: 0-230 VAC, 3-phase
- Output Current: 4.2 A
- Analog Input: One (0-10 VDC or 0-20 mA)
- Discrete I/O: Five (5) sink/source inputs, one (1) Form C relay output
- Enclosure: IP20 / Open
- Built-in Filter: CE-compliant for reduced electrical noise
- Communication Options: BacNet, LonWorks, ProfiBus, Ethernet, DeviceNet, ControlNet
- Suffix Meaning:
- 22F: PowerFlex 4M family
- A4P2: Output current rating (4.2 A)
- N113: Input type (single-phase, 180-265 VAC), internal filter
Applications
- HVAC Systems: Ensures efficient motor operation in fans, compressors, and pumps.
- Material Handling: Powers conveyors, lifts, and hoists with precision.
- Food and Beverage: Provides reliable motor control in mixers and packaging systems.
- Industrial Automation: Ideal for small machinery requiring consistent speed control.
Frequently Asked Questions
Q1: Can the PowerFlex 4M 22F-A4P2N113 support multiple motors?
A1: No, this VFD is designed to control a single motor per drive.
Q2: Is it compatible with Ethernet networks?
A2: Yes, optional communication modules enable Ethernet integration.
Q3: What safety features are included?
A3: The IP20 enclosure and built-in CE-compliant filter enhance safety and reduce electrical noise.
Q4: Can it operate on 3-phase input power?
A4: This model is specifically designed for single-phase input power.
Q5: What is the purpose of the suffix “N113”?
A5: It indicates the VFD’s input type, internal filter, and compatibility specifications.
Check official datasheet for more detailed information: PowerFlex 4M Adjustable Frequency AC Drive
