Overview

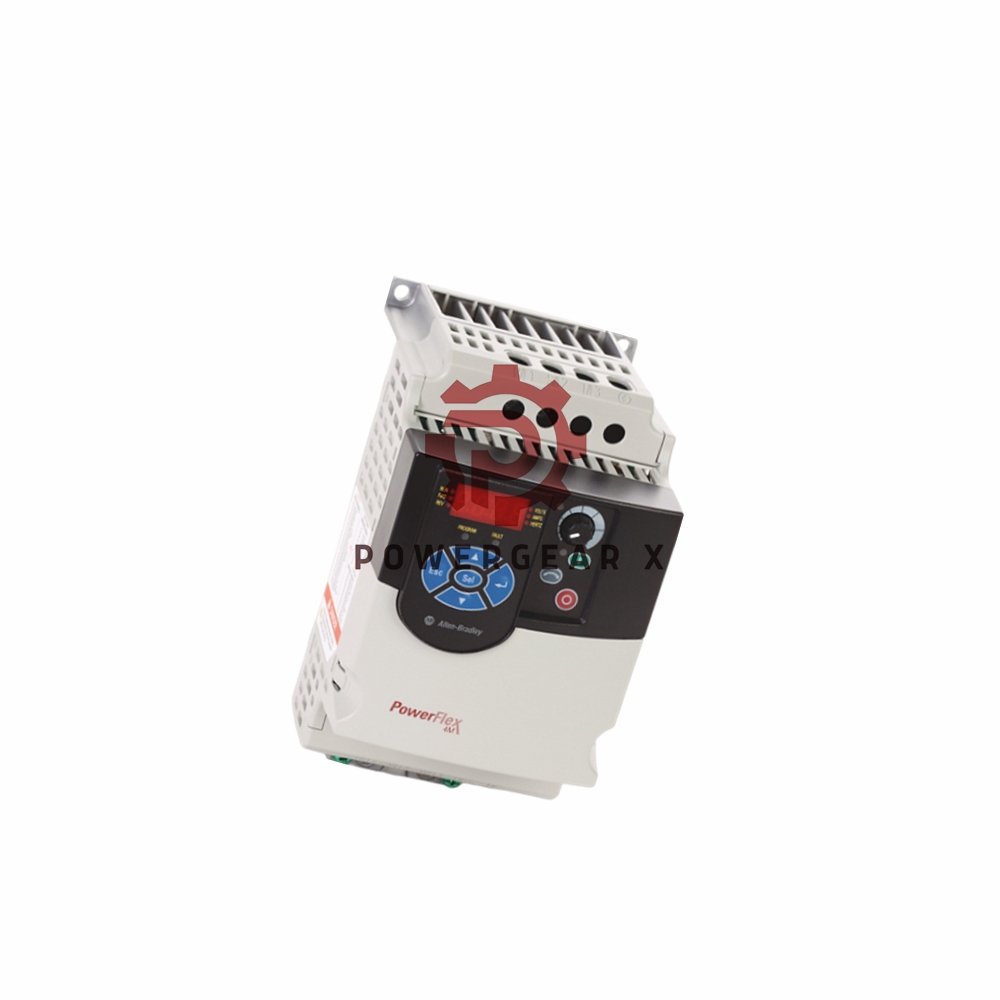

The Allen-Bradley 22F-A8P0N103 PowerFlex 4M is a versatile adjustable frequency AC drive, designed to provide efficient motor control. With a compact A-frame design, this drive supports 200-240V AC single-phase input and delivers 0-230V AC three-phase output, making it ideal for a variety of industrial applications.
Features
- Compact Design: Frame Size B with IP20 (Open) enclosure for easy installation.
- Human Interface Module: Built-in fixed digital keypad for straightforward control.
- Reliable Performance: Delivers 2 HP (1.5 kW) power with a power factor of 0.98.
- Flexible Inputs/Outputs: Five 24 VDC discrete inputs, two analog inputs, and two Form C relay outputs.
- Durable Construction: Designed without a braking IGBT or EMC filter, ensuring streamlined functionality.
- Communication Ready: Integrated RS485 communication port.
- Control Method: Supports V/Hz control for efficient motor management.
Technical Specifications
- Manufacturer: Rockwell Automation
- Brand: Allen-Bradley
- Model: 22F-A8P0N103 (22F – PowerFlex 4M series, A8P0N – Amperage and power rating, 103 – Product suffix for regional specifications)
- Input Voltage: 200-240 VAC, single-phase
- Output Voltage: 0-230 VAC, three-phase
- Output Current: 8.0 Amps
- Horsepower: 2 HP (1.5 kW)
- Enclosure Type: IP20 NEMA/Open
- Input Current: 22.3 Amps
- Discrete Inputs: Five 24 VDC
- Analog Inputs: Two
- Relay Outputs: Two Form C
- Control Method: V/Hz control
- Communication Port: RS485
- Power Factor: 0.98
Applications
The 22F-A8P0N103 PowerFlex 4M AC Drive is well-suited for applications requiring efficient motor control and reliable performance in:
- Conveyors
- Fans and blowers
- Pumps
- General-purpose industrial machinery
FAQ
Q: What is the enclosure rating of this drive?
A: The drive features an IP20 (Open) enclosure, suitable for indoor environments.
Q: Does this drive include an EMC filter?
A: No, the 22F-A8P0N103 is designed without an EMC filter.
Q: Can this drive handle three-phase input?
A: No, it accepts single-phase input (200-240V AC) and provides a three-phase output (0-230V AC).
Q: What communication options are available?
A: The drive includes an RS485 communication port for seamless integration.
Check official datasheet for more detailed information: PowerFlex 4M Adjustable Frequency AC Drive
