Overview

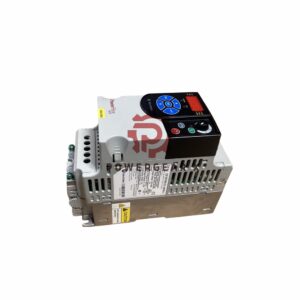

The Allen-Bradley 22F-B2P5N103 is a compact frequency inverter from the PowerFlex 4M series by Rockwell Automation. Designed for reliability and efficiency, it offers precise motor control with a broad output frequency range. With its IP20-rated enclosure, this drive is suitable for panel mounting in industrial applications requiring space-saving solutions.
Features
- Flexible Input and Output Voltage: Supports a 3-phase input range of 200-240V AC and an output voltage range of 0-230V AC.
- Versatile Frequency Range: Operates at 50-60 Hz input frequency and provides an adjustable output frequency of 0-400 Hz.
- Compact Design: Built with a Size A frame, ideal for tight installation spaces.
- Robust Enclosure: IP20-rated open enclosure designed for panel mounting.
- Integral Keypad: Includes an intuitive keypad for straightforward parameter setting and control.
- Energy Efficiency: Offers a power factor of 0.98, enhancing energy savings.
- Durable Construction: Omit brake IGBT configuration ensures reduced component wear in braking applications.
Technical Specifications
- Brand: Rockwell Automation
- Model: Allen-Bradley 22F-B2P5N103
- Series: PowerFlex 4M
- Horsepower: 0.5 HP (0.37 kW)
- Amperage: 2.5 A output current
- Input Voltage: 200-240V AC, 3-phase
- Output Voltage: 0-230V AC
- Frequency: 50-60 Hz input, 0-400 Hz output
- Enclosure: IP20, UL-NEMA Type Open
- Mounting Type: Panel mounting
- Frame Size: Frame A
- Filter: Without CE-compliant filter
- Power Factor: 0.98
Applications
The 22F-B2P5N103 is widely used in:
- Industrial Automation: Drives small motors in conveyor belts, pumps, and fans.
- HVAC Systems: Provides precise speed control for energy efficiency.
- Material Handling: Supports applications requiring compact and reliable motor drives.
FAQ
1. Can this drive be used with single-phase power?
No, the 22F-B2P5N103 is designed for 3-phase input power only.
2. Is the drive compatible with braking resistors?
No, this model omits the brake IGBT functionality.
3. What is the enclosure type?
It features an IP20-rated open enclosure, ideal for panel mounting but not for environments requiring higher ingress protection.
4. Does it include a built-in filter?
No, this unit does not include a CE-compliant filter.
5. What are the dimensions of the drive?
The exact dimensions depend on the Frame A specification; refer to the product manual for details.
Check official datasheet for more detailed information: PowerFlex 4M Adjustable Frequency AC Drive
