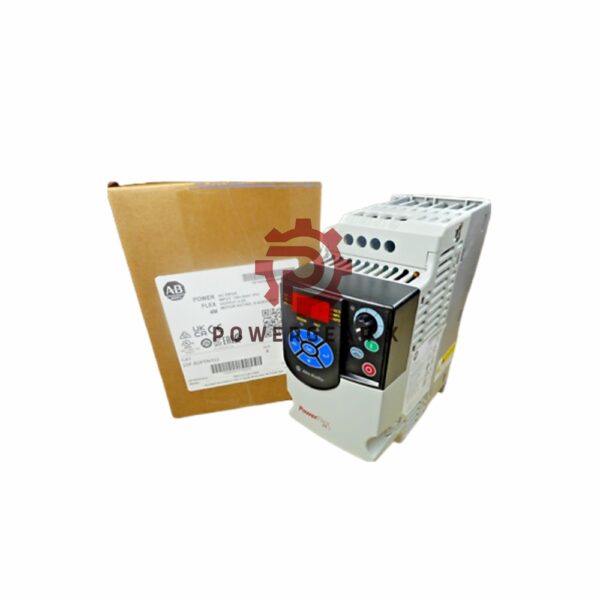

22F-B4P2N103 Allen-Bradley 0.75 kW 1 HP AC Drive

Overview

The Allen-Bradley 22F-B4P2N103 is a high-performance adjustable frequency AC drive from the PowerFlex 4M series, designed for efficient motor control and energy savings in various industrial applications. It supports V/Hz control and operates at a voltage range of 200-240V AC, 3-phase, making it suitable for a wide range of installations.

Key Features

• Input Voltage Range: 200-240 VAC, 3-phase.
• Output Power: 0.75 kW (1 HP).
• Current Rating: Input: 4.9 A; Output: 4.2 A.
• Compact Design: A-frame size with IP20 (Open) enclosure.
• Interface: Fixed digital keypad with LED display for easy operation.
• Control Options: Offers V/Hz control with two analog inputs and five discrete inputs.
• Outputs: Two form C relay outputs for flexible control.
• Communication: Built-in RS485 communication port for connectivity.
• Filter Options: No CE-compliant filter or EMC filter installed.
• Safety: Designed to comply with international standards.

Technical Specifications

• Brand: Allen-Bradley
• Model: 22F-B4P2N103
• Suffix Details:
  • B4P2: Indicates a 4.2 A output current rating.
  • N: No CE-compliant filter installed.
  • 103: Frame size and configuration details.
• Input Voltage: 200-240 VAC, 3-phase.
• Output Voltage: 0-230 VAC, 3-phase.
• Input Current: 4.9 A.
• Output Current: 4.2 A.
• Power: 0.75 kW (1 HP).
• Discrete Inputs: Five (24 VDC).
• Analog Inputs: Two.
• Output Phase: 3-phase.
• Interface: Standard fixed keypad.
• Communication Port: RS485.
• Braking: Not included.
• Enclosure Type: IP20, open frame (NEMA-rated).
• Applications: Motor speed control, conveyors, pumps, fans, and mixers.

Applications

The PowerFlex 4M 22F-B4P2N103 is ideal for:

• Conveyor systems.
• Fans and blowers.
• Pump control.
• Mixer applications.
• HVAC systems.

FAQ

1. What does the suffix “N103” indicate?
The suffix denotes no CE-compliant filter, A-frame size, and configuration details.

2. Is this drive compatible with single-phase input?
No, it requires a 3-phase input voltage.

3. Does the 22F-B4P2N103 include a braking resistor?
No, this model does not include a braking resistor or EMC filter.

4. What communication options are available?
It has an RS485 communication port for seamless integration.

5. Can this drive be used for outdoor applications?
The IP20 (Open) enclosure is suitable for indoor use only.

Check official datasheet for more detailed information: PowerFlex 4M Adjustable Frequency AC Drive
