Product details
Overview

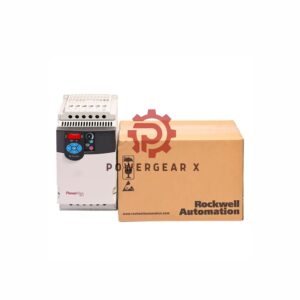

The Allen-Bradley 22F-D018N104 is a versatile PowerFlex 4M AC drive designed for reliable motor control. With a three-phase input voltage range of 340-528 VAC, this drive delivers an output current of 18.0 A and supports motors up to 10 HP (7.5 kW). It features an intuitive fixed digital keypad, LED display, and an RS-485 communication port for streamlined operation and connectivity.
Key Features
- Powerful Motor Support: Rated for motors up to 7.5 kW (10 HP).
- Compact Design: Frame Size C with panel mount installation.
- Connectivity: Built-in RS-485 port with optional protocols like BacNet, LonWorks, ProfiBus, Ethernet, DeviceNet, and ControlNet.
- Flexible Input/Output Options:
- Five (5) sink/source discrete inputs.
- One (1) Form C contact discrete output.
- One (1) analog input supporting 0-10 VDC or 0-20 mA signals.
- Enclosure: Open type (IP20) for indoor installations.
Technical Specifications
- Brand: Allen-Bradley
- Manufacturer: Rockwell Automation
- Model: PowerFlex 4M (22F-D018N104)
- Input Voltage: 340-528 VAC, 3-phase
- Output Voltage: 0-460 VAC
- Input Current: 19.5 A
- Output Current: 18.0 A
- Output Power: 7.5 kW (10 HP)
- Enclosure Type: IP20 (Open/NEMA Type UL)
- Communication: RS-485 port with optional communication expansions.
- Installation: Panel mount.
Applications
Ideal for various industrial applications, including:
- Conveyor systems.
- Pumps and fans.
- Mixers and agitators.
- HVAC systems.
Frequently Asked Questions (FAQ)
- What is the enclosure type of this drive?
- The 22F-D018N104 has an IP20 (open type) enclosure.
- Can this drive communicate with Ethernet-based networks?
- Yes, with an optional communication module for Ethernet.
- What motors are compatible with this drive?
- It supports motors with a power rating of up to 7.5 kW (10 HP).
- Does it support analog signal inputs?
- Yes, it includes an analog input for 0-10 VDC or 0-20 mA signals.
Check official datasheet for more detailed information: PowerFlex 4M Adjustable Frequency AC Drive
