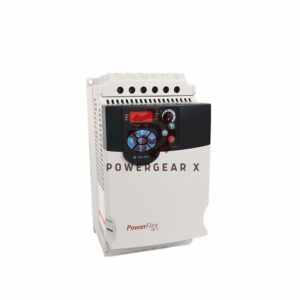

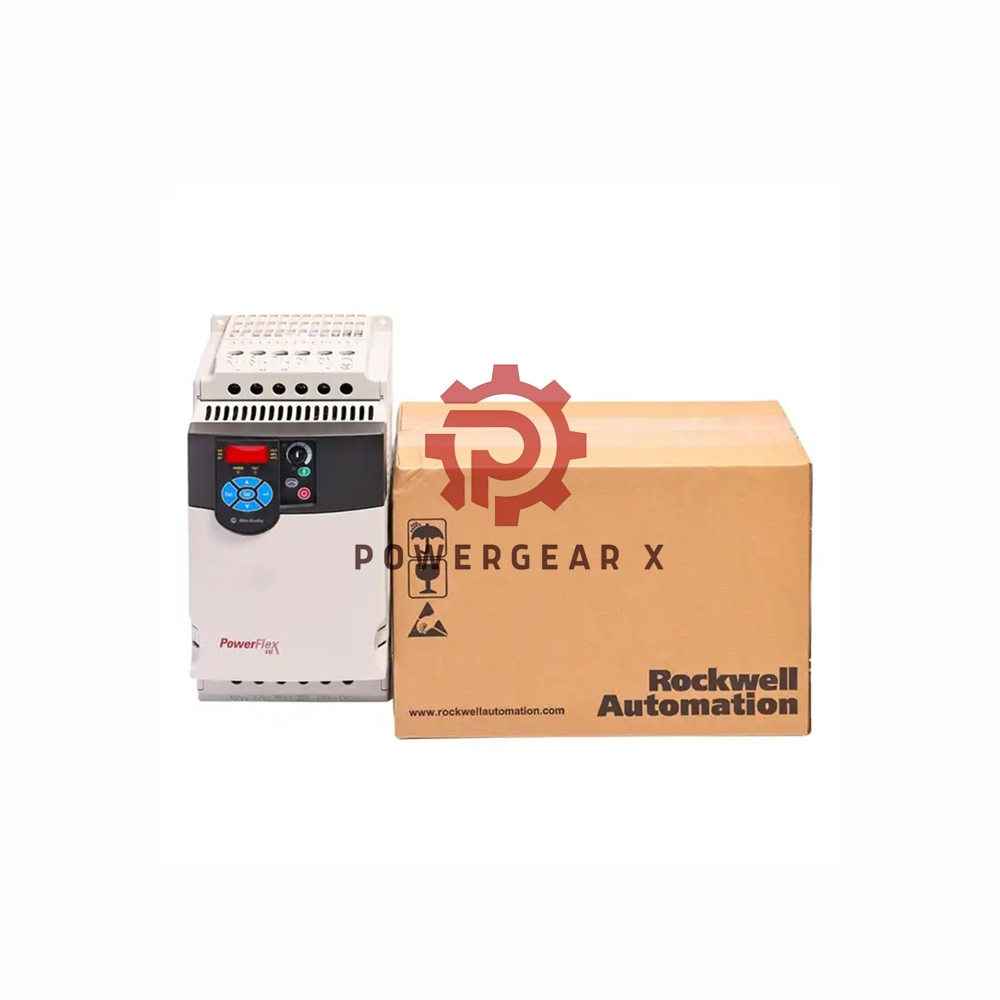

22F-D024N104 Allen-Bradley AC Drive 480VAC 3PH

Overview

The Allen-Bradley 22F-D024N104 PowerFlex 4M AC drive is an efficient and compact adjustable frequency drive designed for industrial motor control. Supporting a 380-480VAC 3-phase input, this drive delivers up to 15 HP (11 kW) output power and ensures reliable performance with a volts-per-hertz control method. It features a built-in RS485 communication port and supports optional protocols like BACnet, LonWorks, DeviceNet, and Ethernet.

Features

• Compact Design: Space-saving Frame C size suitable for panel mounting.
• Wide Input Range: Operates with 380-480VAC 3-phase input voltage.
• Versatile Control: Implements Volts/Hz control for precise motor management.
• Built-in RS485: Simplifies integration with industrial communication networks.
• Flexible I/O: Offers 5 discrete inputs, 1 Form C output, and analog input (0-10VDC or 0-20mA).
• Enclosure Options: Rated IP20/NEMA Open Type for versatile installation environments.
• Optional Communication Protocols: Expandable to support Ethernet, ControlNet, and more.

Technical Specifications

• Brand/Manufacturer: Allen-Bradley (Rockwell Automation)
• Model: 22F-D024N104
  • Suffix Breakdown:
    • 22F: PowerFlex series
    • D024: 24 A output current
    • N104: Indicates 380-480V input, no CE filter, and specific frame size.
• Input Voltage: 380-480VAC
• Output Voltage: 0-460VAC
• Input Phase: 3-phase
• Rated Output Current: 24 A
• Output Power: 11 kW (15 HP)
• Control Method: Volts/Hz
• Installation: Panel mount
• Enclosure Rating: IP20 / NEMA UL Open Type
• Communication Port: RS485
• Optional Protocols: BACnet, Ethernet, LonWorks, DeviceNet, ControlNet.
• I/O:
  • Discrete Inputs: 5 (sink/source)
  • Discrete Outputs: 1 Form C contact
  • Analog Input: 0-10VDC or 0-20mA

FAQ

Q1: What is the enclosure rating of the 22F-D024N104?
A1: It is rated IP20 or NEMA UL Open Type for general industrial use.

Q2: What communication options are supported?
A2: Built-in RS485 with optional support for Ethernet, BACnet, DeviceNet, ControlNet, and more.

Q3: What is the control method used?
A3: The drive uses Volts/Hz control for efficient motor speed regulation.

Q4: Can this drive be used for HVAC applications?
A4: Yes, it is well-suited for HVAC systems, among other industrial applications.

Check official datasheet for more detailed information: PowerFlex 4M Adjustable Frequency AC Drive
