22F-D6P0N113 Allen-Bradley Inverter Drive 2.2 kW

Overview

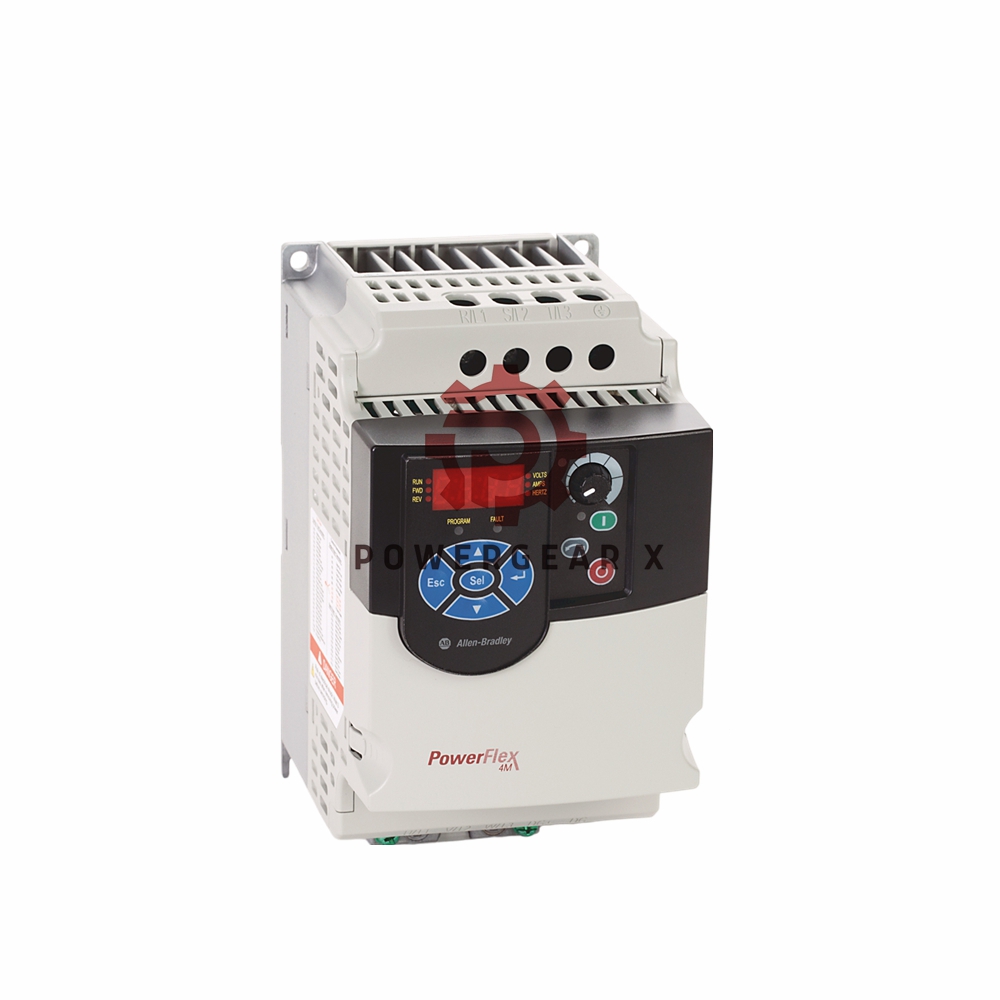

The Allen-Bradley 22F-D6P0N113 PowerFlex 4M is a versatile adjustable frequency AC drive designed for precision motor control. Featuring a compact design with robust functionality, it supports 380-480V AC input and delivers 2.2 kW (3 HP) output power, making it suitable for various industrial applications requiring efficient and reliable motor performance.

Features

• PowerFlex 4M Series: A robust and efficient line of adjustable frequency drives from Allen-Bradley.
• Compact Design: Frame B with IP20 open enclosure for space-saving installations.
• Built-in CE Filter: Ensures compliance with international electromagnetic compatibility (EMC) standards.
• Control Options: Features V/Hz control for effective motor speed management.
• Integrated Keypad: Fixed Human Interface Module (HIM) with a potentiometer for easy configuration.
• RS485 Communication: Enables seamless integration into industrial control systems.

Technical Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 22F-D6P0N113 (Suffix Breakdown: “22F” denotes PowerFlex 4M series, “D6P0” indicates current rating, “N113” signifies configuration and accessories.)
• Input Voltage: 380-480V AC, 3-phase
• Input Current: 6.2 A
• Output Voltage: 0-460V AC, 3-phase
• Output Current: 6.0 A
• Output Power: 2.2 kW (3 HP)
• Frequency Range: 50-60 Hz
• Discrete Inputs: Five (5) 24V DC inputs
• Analog Inputs: Two (2) analog inputs
• Discrete Outputs: Two (2) Form C relay outputs
• Control Method: V/Hz control
• Communication Ports: RS485
• Braking: Not installed
• Enclosure: IP20 (Open Type)
• EMC Filter: Installed
• Frame Size: B

Frequently Asked Questions (FAQ)

Q1: What is the input voltage range for this drive?
A: The input voltage range is 380-480V AC, 3-phase.

Q2: Can this drive be used with single-phase input?
A: No, this drive is designed for 3-phase input only.

Q3: Does it include a braking resistor?
A: No, the drive does not come with a built-in IGBT braking system.

Q4: Is the drive compatible with RS485 communication?
A: Yes, it includes an RS485 communication port for seamless integration.

Q5: What is the power rating of this drive?
A: The drive delivers 2.2 kW (3 HP) output power.

Check official datasheet for more detailed information: PowerFlex 4M Adjustable Frequency AC Drive
