24701-16-05-15-120-03-02 | Proximity Probe Housing Assemblies

Overview

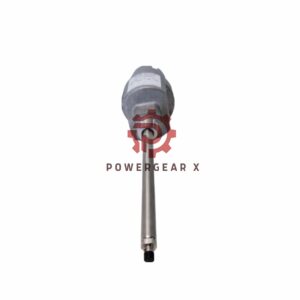

The Bently Nevada 24701-16-05-15-120-03-02 Proximity Probe Housing Assembly is a robust solution designed for secure and precise mounting of reverse mount proximity probes in industrial machinery. Built with durable stainless steel materials, it ensures reliable operation in challenging environments. This housing assembly integrates seamlessly with Bently Nevada’s 3300 XL 8 mm probe, offering exceptional measurement accuracy for machinery monitoring and protection.

Key Features

• Robust Construction: 303 stainless steel body and 304 stainless steel sleeve for durability.
• Flexible Mounting: Includes 3/4-14 NPT threaded ports, standoff adapter options, and multiple fittings.
• Integrated Design: Compatible with the 3300 XL 8 mm proximity probe for enhanced measurement precision.
• Customizable Options: Adjustable probe penetration length (12.0 in) and cable seal grips for various cable sizes.
• Environmental Protection: Equipped with O-rings and dome covers to secure components in harsh conditions.

Technical Specifications

• Brand: Bently Nevada
• Model: 24701-16-05-15-120-03-02
• Suffix Breakdown:
  • Probe Option: 16 = 3300 XL 8 mm probe
  • Probe Cable Length: 05 = 0.5 meter (20 in)
  • Standoff Adapter: 15 = 1.5 inches (38 mm)
  • Probe Penetration: 120 = 12.0 inches
  • Fittings Option: 03 = Includes NPT plug, reducer, and cable seal grips
  • Mounting Thread Option: 02 = 3/4-14 NPT
• Material: 303 and 304 stainless steel
• Weight: 1.8 kg (4.1 lb), typical without fittings
• Country of Origin: Made in U.S.A (Certificate of Origin available)

FAQs

Q1: What probes are compatible with this housing assembly?
A1: The assembly supports the 3300 XL 8 mm proximity probe.

Q2: Can this product handle harsh environmental conditions?
A2: Yes, the stainless steel construction and sealing components ensure protection against dust, moisture, and other contaminants.

Q3: What cable sizes are supported by the fittings?
A3: Cable seal grips accommodate sizes ranging from 1/8 to 3/8 inches.

Q4: Is counterboring necessary for all applications?
A4: Counterboring may be required for probe penetration lengths between 1.0 and 2.0 inches to reduce side or rear view effects.

Check official datasheet for more detailed information:21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
