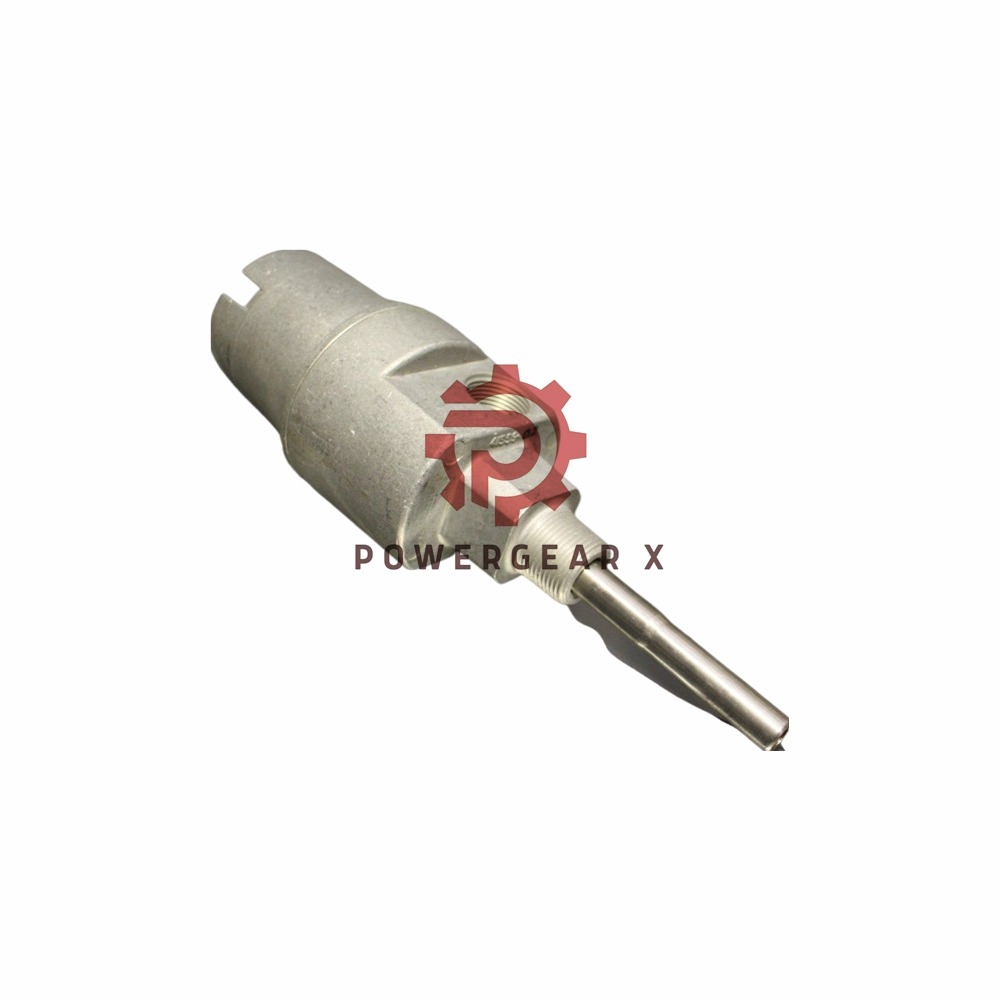

24701-28-10-00-110-03-02 | Proximity Probe Housing Assemblies

Overview:

The Bently Nevada 24701-28-10-00-110-03-02 Proximity Probe Housing Assembly is designed for industrial applications requiring high-precision proximity measurement. Manufactured in the USA, it features a robust 303 stainless steel body and a 304 stainless steel sleeve for enhanced durability. This housing assembly supports 3300 XL 8 mm probes with a variety of customizable options, ensuring versatility in different industrial settings.

Features:

• Material Construction: 303 stainless steel body and 304 stainless steel sleeve for strength and corrosion resistance.
• Probe Option: Compatible with the Bently Nevada 3300 XL 8 mm probe, with multiple approvals.
• Probe Cable Length: Comes with a 1.0 metre (39 inches) cable for flexible installation.
• Mounting: 3/4-14 NPT mounting thread, ensuring secure and reliable probe installation.
• Fittings: Includes one 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and a cable seal grip with grommets for various cable sizes.
• Probe Penetration: Provides 11.0 inches of probe penetration, adaptable to a wide range of machine setups.
• Standoff Adapter: Optionally includes a standoff adapter for extended mounting flexibility.

Technical Specifications:

• Brand: Bently Nevada
• Model: 24701-28-10-00-110-03-02
• Weight: 1.8 kg (4.1 lbs) typical, without fittings.
• Probe: 3300 XL 8 mm proximity probe, multiple approvals.
• Cable Length: 1.0 metre (39 inches).
• Mounting Thread: 3/4-14 NPT (required if standoff adapter length option is not 00).
• Fittings: Includes NPT plugs and reducers for various conduit sizes.
• Material: 303 stainless steel body and 304 stainless steel sleeve.
• Probe Penetration: 11.0 inches.
• Standoff Adapter: Optional.

FAQ:

Q1: What is the purpose of the standoff adapter?

A1: The standoff adapter extends the probe’s reach to facilitate precise positioning in challenging machine environments.

Q2: How is the probe cable length selected?

A2: The 1.0 metre cable length provides flexible installation options, but longer lengths can be ordered for more extensive setups.

Q3: Can the housing assembly be used in explosive environments?

A3: Yes, the 3300 XL probe is certified for use in hazardous areas when configured with the appropriate approvals.

Q4: What is the material of the housing assembly?

A4: The housing is made from 303 stainless steel with a 304 stainless steel sleeve, offering excellent durability and corrosion resistance.

Check official datasheet for more detailed information:21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
