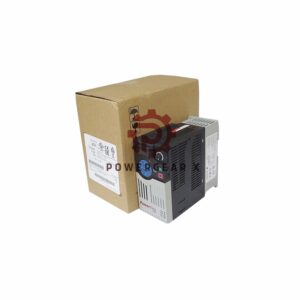

25A-B017N104 Allen-Bradley AC Drive 4kW 5Hp

Overview:

The Allen-Bradley PowerFlex 523 AC Drive (25A-B017N104) is designed for versatile and reliable performance in various industrial applications. This adjustable frequency AC drive is engineered to provide smooth motor control in demanding environments. It features sensorless vector control (SVC) and volts per Hertz (V/Hz) control methods for precise motor management. This model is built for heavy-duty and normal-duty applications with a frame B size, IP20 NEMA rating, and open-type enclosure for panel mounting. Ideal for machinery requiring motor control with no integrated EMC filter.

Key Features:

• Brand: Allen-Bradley / Rockwell Automation
• Model: PowerFlex 523
• Frame Size: B
• Enclosure: IP20 / NEMA Open Type
• Input Voltage: 200-240 VAC, 3-Phase
• Output Voltage: 0-230 VAC, 3-Phase
• Output Power: 5.0 HP (4.0 kW)
• Output Current: 17.5 A
• Control Methods: V/Hz, Sensorless Vector Control (SVC), SVC with economizer
• Built-in Communication: RS485
• Integrated Safety: Safe-Torque Off (STO)
• Human Interface Module: Standard HIM
• Application: Suitable for applications requiring reliable motor control, such as conveyor systems, pumps, fans, and compressors.

Technical Specifications:

• Manufacturer: Rockwell Automation / Allen-Bradley
• Part Number: 25A-B017N104
• Input Voltage Range: 200-240 VAC
• Input Phase: 3-Phase
• Output Voltage: 0-230 VAC
• Output Power: 5.0 HP (4.0 kW)
• Output Current: 17.5 A
• Control Method: Volts per Hertz (V/Hz), Sensorless Vector Control (SVC)
• Communication Port: RS485
• Braking: Built-in IGBT
• Discrete Inputs: 5
• Discrete Outputs: 1 (Form C relay contact)
• Analog Input: 1
• Analog Output: 1
• Frame: B
• Enclosure: IP20 NEMA / Open Type
• Safety: Safe-Torque Off (STO)

Application:

• Ideal for motor control in various industrial settings.
• Suitable for heavy-duty and normal-duty operations such as HVAC systems, conveyors, pumps, and compressors.

FAQ:

Q1: What is the input voltage for the PowerFlex 523 drive?
A1: The PowerFlex 523 (25A-B017N104) accepts an input voltage of 200-240 VAC, 3-Phase.

Q2: Does this drive have an integrated EMC filter?
A2: No, the PowerFlex 523 drive does not come with an integrated EMC filter.

Q3: What is the maximum output power of the drive?
A3: The maximum output power is 5.0 HP (4.0 kW) for both normal-duty and heavy-duty applications.

Q4: Is this drive compatible with the CompactLogix and ControlLogix systems?
A4: Yes, it is compatible with CompactLogix, GuardLogix, and ControlLogix controllers.

Check official datasheet for more detailed information: PowerFlex 520-series AC Drive
