Overview

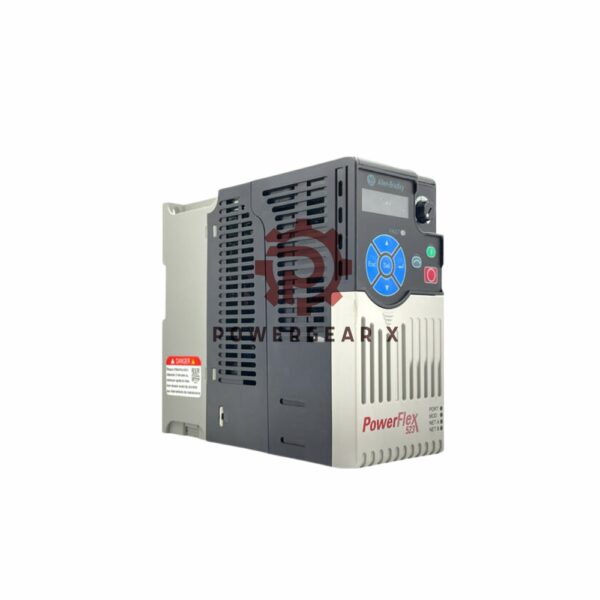

The Allen-Bradley 25A-B5P0N104 is a PowerFlex 523 AC Drive designed for high-efficiency motor control. Ideal for industrial applications, it offers advanced features like precise motor speed control, enhanced communication capabilities, and robust protection in a compact design. Powered by 170-264 VAC (3-phase), this drive is perfect for normal and heavy-duty operations, with an output of 0.75 kW (1.0 HP).
Features
- Input Voltage: 170-264 VAC (3-Phase)
- Output Power: 0.75 kW (1.0 HP)
- Output Current: 5.0 A
- I/O Options:
- 5 Discrete Inputs (Sink/Source)
- 1 Discrete Output (Form C Contacts)
- 1 Analog Input (0-10VDC; 0-20mA)
- 1 Analog Output (0-10VDC; 0-20mA) (For Series B drive)
- Built-in Communication Port: RS485
- Optional Communication Protocols: Ethernet I/P, DeviceNet, ProfiBus DP
- Frame Size: Frame A
- Mounting: Panel Mount / DIN Rail
- Enclosure Rating: IP20 / NEMA UL Type Open
- No EMC Filtering
Technical Specifications
- Brand: Allen-Bradley
- Model: 25A-B5P0N104
- Manufacturer: Rockwell Automation / Allen-Bradley
- Application: Industrial motor control for normal and heavy-duty operations.
- Input Voltage: 170-264 VAC (3-phase)
- Input Current: 5.8 A
- Output Voltage: 0-230 VAC
- Output Current: 5.0 A
- Output Power: 0.75 kW (1.0 HP)
- I/O Configuration: 5 Discrete Inputs, 1 Discrete Output, 1 Analog Input, 1 Analog Output
- Frame Size: Frame A
- Mounting Options: Panel or DIN Rail
- Enclosure: IP20 / NEMA UL Type Open
- Communication Ports: RS485 (Standard), optional Ethernet I/P, DeviceNet, ProfiBus DP
- EMC Filtering Option: None
FAQ
- Q: What is the maximum output power?
- A: The maximum output power is 0.75 kW (1.0 HP).
- Q: Does this drive support external communication protocols?
- A: Yes, it supports Ethernet I/P, DeviceNet, and ProfiBus DP.
- Q: Is there any EMC filtering available for this drive?
- A: No, the 25A-B5P0N104 does not include EMC filtering.
Check official datasheet for more detailed information: PowerFlex 520-series AC Drive
