Product details
High-Performance Industrial Probe

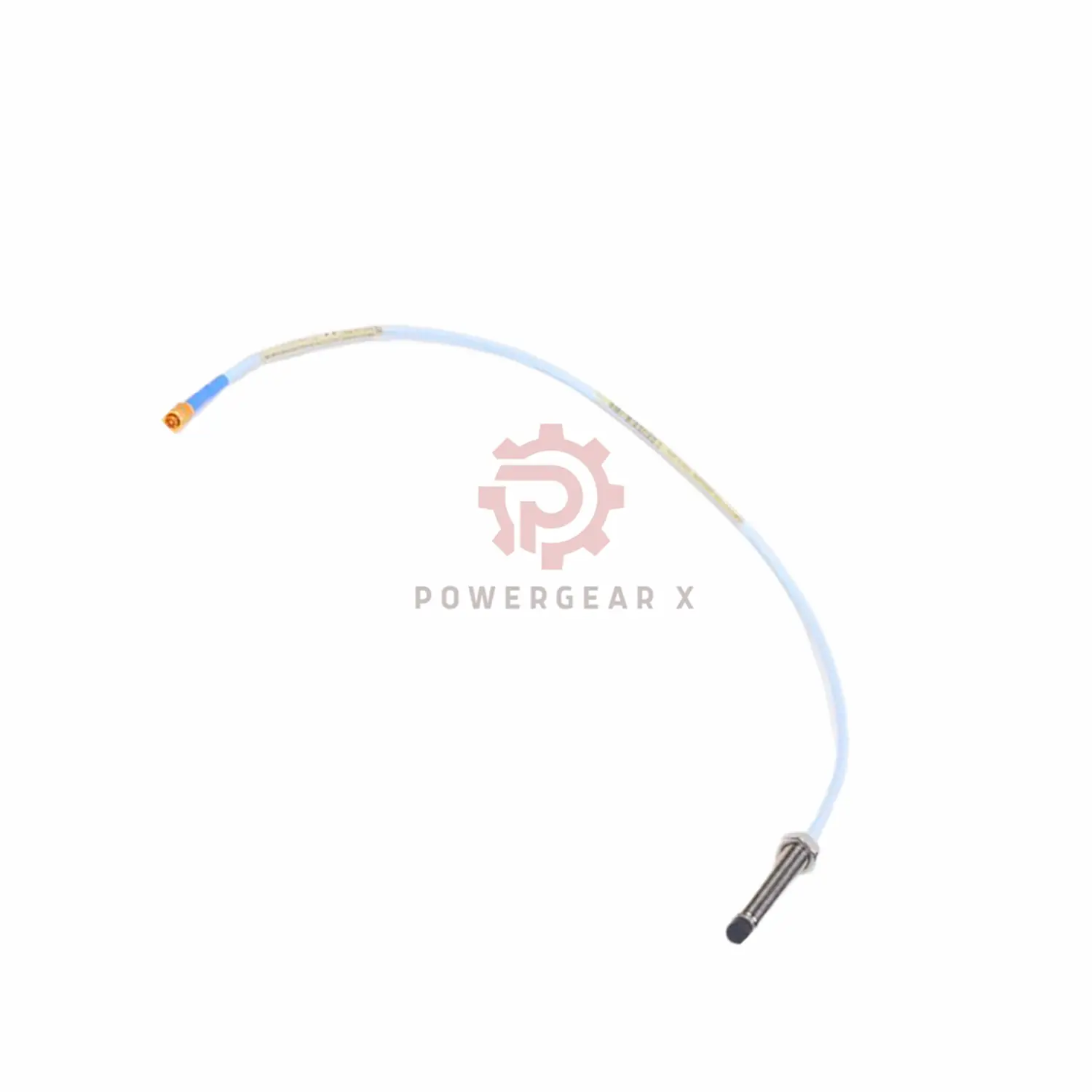

The Bently Nevada 330908-00-20-05-02-05 proximity sensor delivers 0.003″ resolution in a 2″ stainless steel housing. Engineered for ATEX zones, it withstands 20g lateral vibration while maintaining ±0.05mm linearity from -52°C to +177°C.
Core Technical Data (330908-00-20-05-02-05)
- Dynamic Response: 0.8ms rise time (10-90%)
- EMI Resistance: 120dB @50-1000MHz
- Cable Tensile: 150N max pull force
- Phase Match: ±1.5° @5kHz across units
- Housing Finish: 32μin Ra electropolished
| Model Segment | Technical Specification |
|---|---|
| 330908 | 3/8-24 UNF threaded probe base |
| 00 | Full-thread engagement design |
| 20 | 2.0″ (50.8mm) case length |
| 05 | 0.5m FEP coaxial cable |
| 02 | M12x1 ClickLoc connector |
| 05 | ATEX/IECEx/UL certifications |
Advanced Metrics
- Transverse Load: 75N max @mid-span
- Dielectric Constant: 1.89 @1MHz (cable)
- Thermal Hysteresis: 0.008%/°C compensated
- IP Rating: IP68 @3m depth/1hr
- ESD Protection: ±20kV contact discharge
