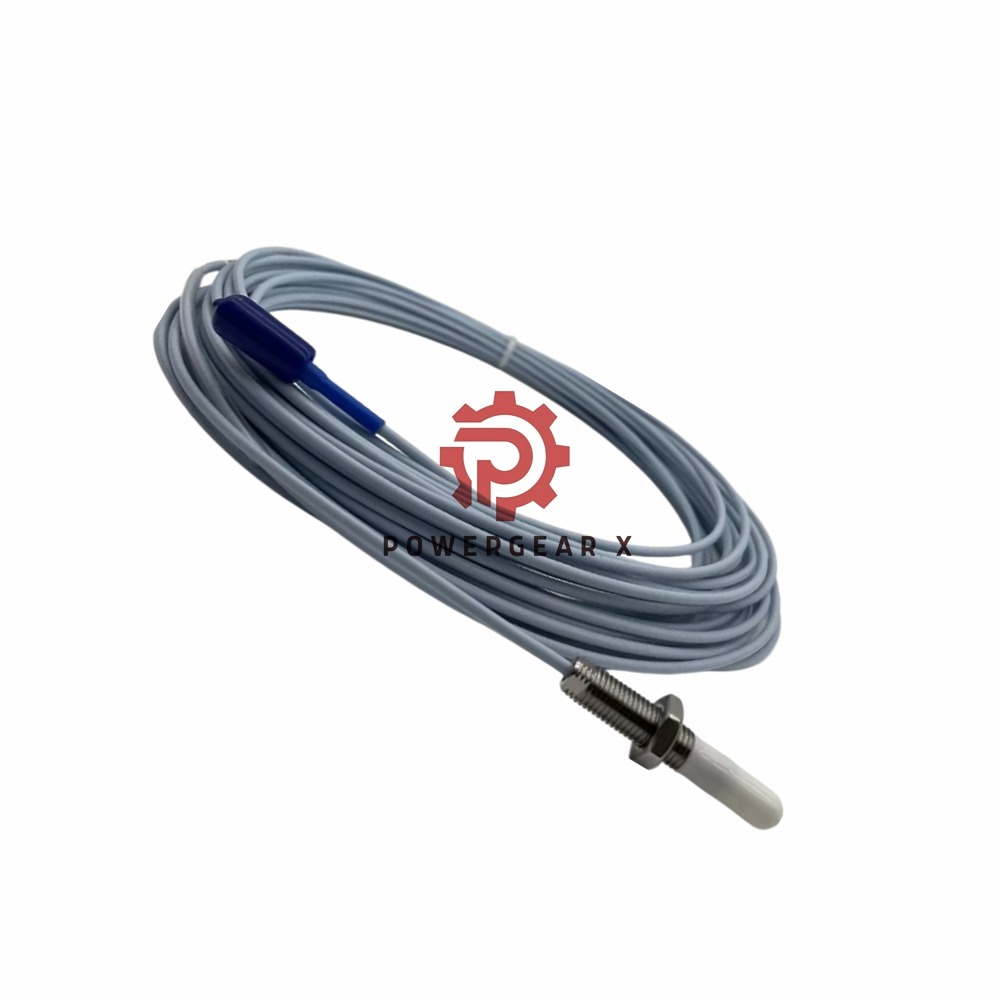

3300 NSv Reverse Mount Probes 330907-05-30-10-02-00

Overview

The Bently Nevada 330907-05-30-10-02-00 Reverse Mount Probe represents a significant advancement in proximity sensing technology, specifically designed for demanding industrial environments. Made in the U.S.A., this probe features enhanced chemical resistance, making it suitable for various process compressor applications. Additionally, its superior side-view characteristics outperform older 3000-series probes, offering improved accuracy and reliability in monitoring.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 NSv Reverse Mount Probe
• Product Number: 330907-05-30-10-02-00
• Threads: M10X1
• Total Length: 1.0 meter (39 inches)
• Connector Options: Miniature coaxial ClickLoc connector (02)
• Agency Approvals: Not required (00)
• Resistance: 4.2 ± 0.5 ohms at 1.0 m
• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Weight: 14 to 150 g (0.5 to 5.3 oz)
• Materials: Polyphenylene sulfide (PPS) tip; AISI 304 stainless steel casing
• Recommended Gap Setting: 1.0 mm (40 mils)

FAQ

• Q: What is the maximum wiring length allowed for the 3300 NSv probe?
  A: The maximum wiring length is 305 meters (1,000 feet).
• Q: What materials are used in the construction of the probe?
  A: The probe tip is made from polyphenylene sulfide (PPS), while the casing is constructed from AISI 304 stainless steel.
• Q: How does the probe perform in extreme temperatures?
  A: The 3300 NSv probe operates effectively in temperatures ranging from -52°C to +177°C (-62°F to +351°F).
• Q: What makes the 3300 NSv particularly suitable for industrial applications?
  A: Its enhanced chemical resistance, robust design, and superior signal characteristics make it ideal for demanding environments.

For more detailed information: 3300 XL NSv Proximity Transducer System Datasheet
